13437 | Mureva Enclosure IP65 4x18M E/N TB - Schneider Electric
Original price was: ₹46,894.00.₹25,322.76Current price is: ₹25,322.76. Excl. GST
13975 | Mureva Mini Enclosure IP65 3M - Schneider Electric
Original price was: ₹4,543.00.₹2,453.22Current price is: ₹2,453.22. Excl. GST
-46%

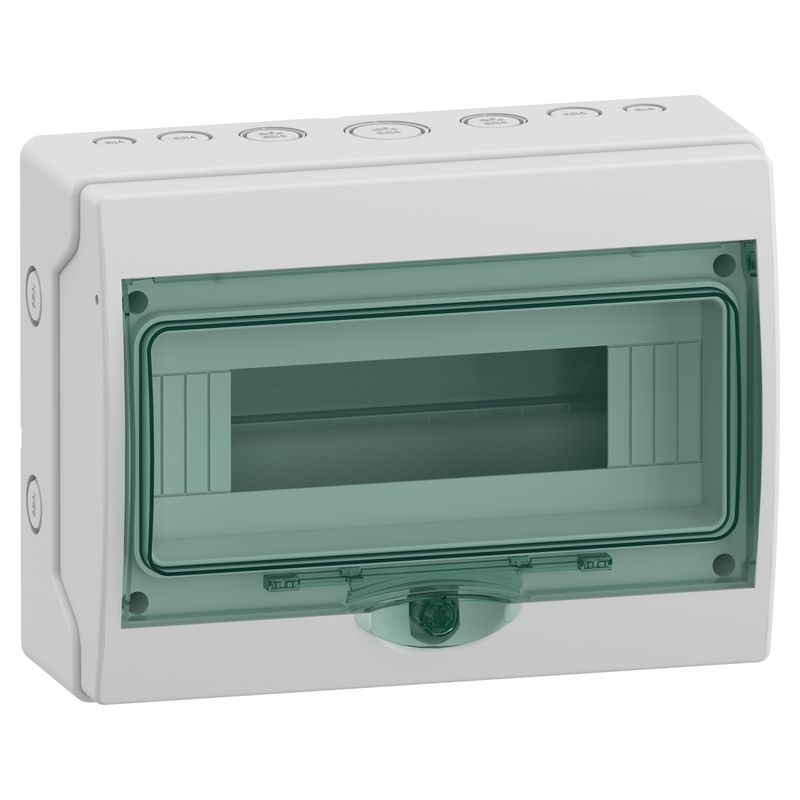

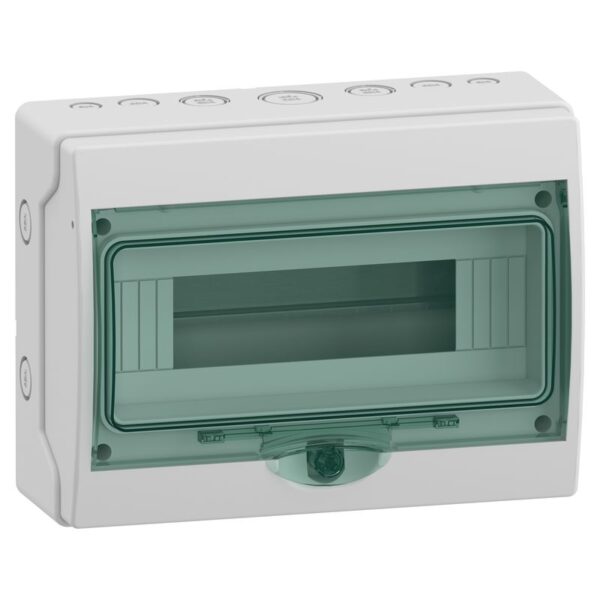

13444 | Mureva Mini Enclosure IP65 12M E/N TB – Schneider Electric
Original price was: ₹11,269.00.₹6,085.26Current price is: ₹6,085.26. Excl. GST
Dispatch By : 15 Weeks
Dispatch By : 15 Weeks
13
People watching this product now!
Order protection
Buy with complete confidence.
We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included
Dedicated account manager
Technical support
Bulk & business pricing
3-day replacement
Specifications
| Main | |
|---|---|
| Range | Mureva |
| Product name | Mureva Enclosure |
| Product or component type | Weatherproof enclosure |
| enclosure type | Mini enclosure for modular device |
| Mounting plate description | Without mounting plate |
| Complementary | |
| Enclosure mounting | Surface |
| 9 mm pitches | 24 |
| Number of 18 mm modules per row | 12 |
| Total number of 18 mm modules | 12 |
| Number of horizontal rows | 1 |
| Electrical insulation class | Class II Double insulation |
| Provided equipment | 1 marking kit 2 terminal block 8 holes |
| Type of front cover | Transparent |
| Power dissipation in W | 19 W |
| [In] rated current | 63 A |
| Type of rail | DIN |
| Number of pre-cutouts PG ISO | 7 |
| Number of terminal blocks | 2 earth / neutral (screw connection) with 8 outgoers |
| Distribution block outgoers | 8 x 10 mm² 8 x 16 mm² |
| Locking options description | Optional keylock |
| Enclosure material | Self-extinguishing polymer |
| Width | 267 mm |
| Height | 200 mm |
| Depth | 112 mm |
| Internal depth | 56 mm |
| Colour | Door: transparent green Enclosure: light grey (RAL 7035) |
| Environment | |
| Standards | IEC 60670-1 IEC 60670-24 EN 50262 IEC 60695-2-1 |
| Fire resistance | 650 °C conforming to IEC 60695-2-1 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK09 conforming to EN 50102 |
| Environmental characteristics (UV) | UV resistant: class 3 conforming to ISO 4582:2010 Ultraviolet degradation test conforming to ISO 4892-2:2013 |
| Overvoltage category | II |
| Ambient air temperature for operation | -25…60 °C |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.000 cm |
| Package 1 Width | 20.000 cm |
| Package 1 Length | 26.500 cm |
| Package 1 Weight | 942.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 22.000 cm |
| Package 2 Width | 35.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.140 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 96 |
| Package 3 Height | 80.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 104.432 kg |
| Contractual warranty | |
| Warranty (in months) | 18 |
