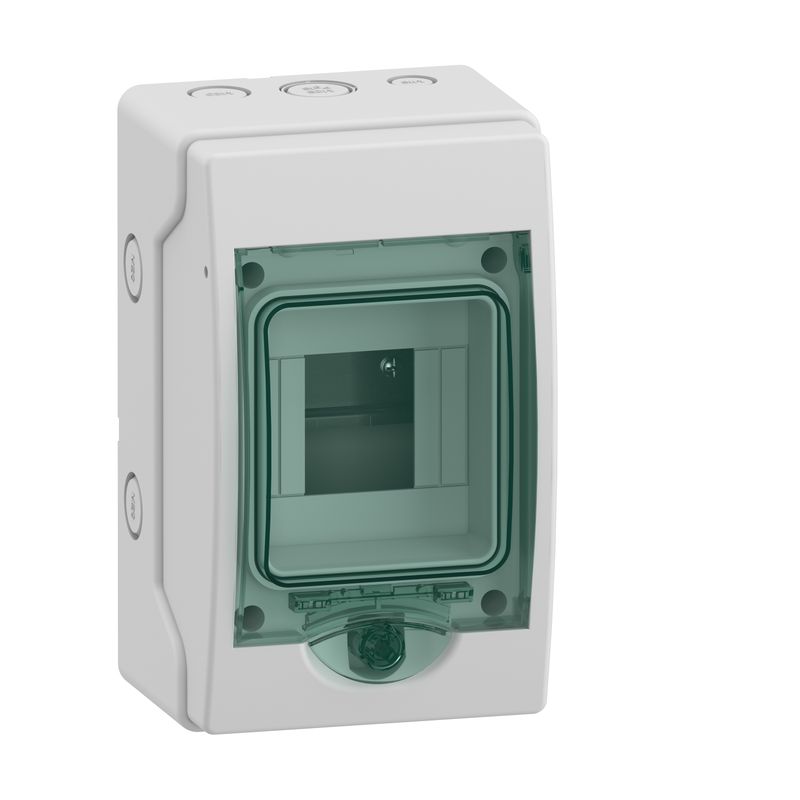

13976 | Mureva Mini Enclosure IP65 4M – Schneider Electric
Original price was: ₹7,742.00.₹4,180.68Current price is: ₹4,180.68. Excl. GST
Dispatch By : 15 Weeks
Dispatch By : 15 Weeks
10
People watching this product now!
Order protection
Buy with complete confidence.
We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included
Dedicated account manager
Technical support
Bulk & business pricing
3-day replacement
Specifications
| Main | |
|---|---|
| Range | Mureva |
| Product name | Mureva Enclosure |
| Product or component type | Weatherproof enclosure |
| enclosure type | Mini enclosure for modular device |
| Mounting plate description | Slotted |
| Complementary | |
| Enclosure mounting | Surface |
| 9 mm pitches | 8 |
| Number of 18 mm modules per row | 4 |
| Total number of 18 mm modules | 4 |
| Number of horizontal rows | 1 |
| Electrical insulation class | Class II Double insulation |
| Provided equipment | 1 marking kit |
| Type of front cover | Transparent |
| Power dissipation in W | 10 W |
| [In] rated current | 63 A |
| Type of rail | DIN |
| Number of pre-cutouts PG ISO | 3 |
| Locking options description | Optional keylock |
| Enclosure material | Self-extinguishing polymer |
| Width | 123 mm |
| Height | 200 mm |
| Depth | 112 mm |
| Internal depth | 56 mm |
| Colour | Door: transparent green Enclosure: light grey (RAL 7035) |
| Environment | |
| Standards | IEC 60670-1 IEC 60670-24 EN 50262 IEC 60695-2-1 |
| Fire resistance | 650 °C conforming to IEC 60695-2-1 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK09 conforming to EN 50102 |
| Environmental characteristics (UV) | UV resistant: class 3 conforming to ISO 4582:2010 Ultraviolet degradation test conforming to ISO 4892-2:2013 |
| Overvoltage category | II |
| Ambient air temperature for operation | -25…60 °C |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.922 cm |
| Package 1 Width | 12.192 cm |
| Package 1 Length | 19.812 cm |
| Package 1 Weight | 467.200 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 9 |
| Package 2 Height | 22.098 cm |
| Package 2 Width | 34.544 cm |
| Package 2 Length | 39.878 cm |
| Package 2 Weight | 4.568 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 216 |
| Package 3 Height | 80.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 118.080 kg |
| Contractual warranty | |
| Warranty (in months) | 18 |
