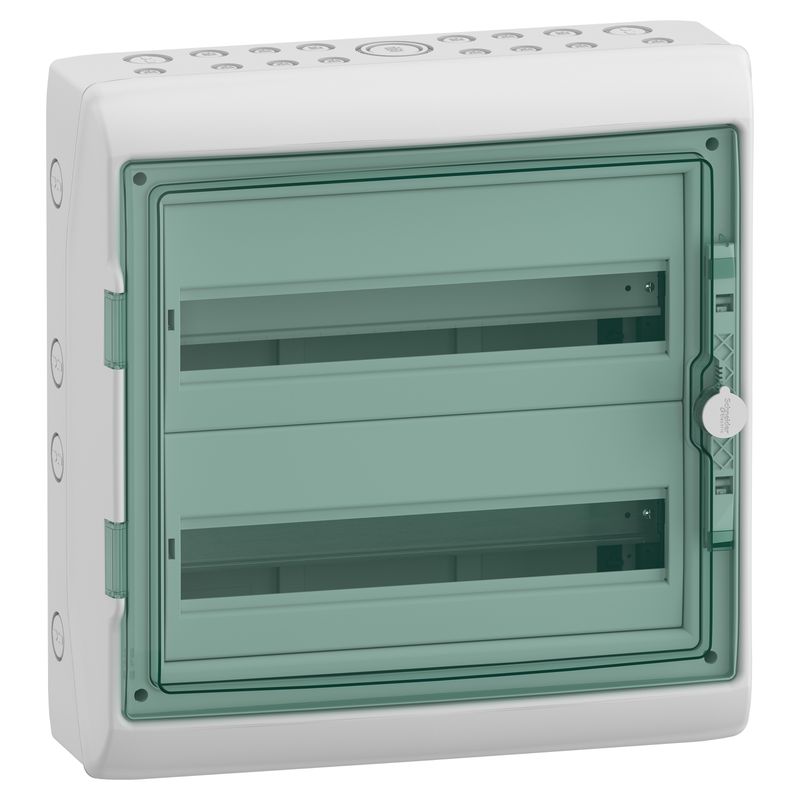

13984 | Mureva Enclosure IP65 2x18M ETB – Schneider Electric
Original price was: ₹21,768.00.₹11,754.72Current price is: ₹11,754.72. Excl. GST
Dispatch By : 15 Weeks
Dispatch By : 15 Weeks
19
People watching this product now!
Order protection
Buy with complete confidence.
We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included
Dedicated account manager
Technical support
Bulk & business pricing
3-day replacement
Specifications
| Main | |
|---|---|
| Range | Mureva |
| Product name | Mureva Enclosure |
| Product or component type | Weatherproof enclosure |
| enclosure type | Enclosure for modular device |
| Mounting plate description | Slotted |
| Complementary | |
| Enclosure mounting | Surface |
| 9 mm pitches | 36 |
| Number of 18 mm modules per row | 18 |
| Total number of 18 mm modules | 36 |
| Number of horizontal rows | 2 |
| Electrical insulation class | Class II Double insulation |
| Provided equipment | 2 marking kit 2 wiring strap 1 terminal block 32 holes 1 terminal block support |
| Type of front cover | Reversible Transparent |
| Power dissipation in W | 47 W |
| [In] rated current | 90 A |
| Type of rail | DIN |
| Number of pre-cutouts PG ISO | 17 |
| Number of terminal blocks | 1 earth (screw connection) with 32 outgoers |
| Distribution block outgoers | 16 x 16 mm² + 16 x 10 mm² |
| Locking options description | Optional keylock |
| Enclosure material | Self-extinguishing polymer |
| Width | 448 mm |
| Height | 460 mm |
| Depth | 160 mm |
| Internal depth | 88 mm |
| Colour | Door: transparent green Enclosure: light grey (RAL 7035) |
| Environment | |
| Standards | IEC 60670-1 IEC 60670-24 EN 50262 IEC 60695-2-1 |
| Fire resistance | 650 °C conforming to IEC 60695-2-1 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK09 conforming to EN 50102 |
| Environmental characteristics (UV) | UV resistant: class 3 conforming to ISO 4582:2010 Ultraviolet degradation test conforming to ISO 4892-2:2013 |
| Overvoltage category | II |
| Ambient air temperature for operation | -25…60 °C |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 17.000 cm |
| Package 1 Width | 46.800 cm |
| Package 1 Length | 47.000 cm |
| Package 1 Weight | 4.190 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 80.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 87.420 kg |
| Contractual warranty | |
| Warranty (in months) | 18 |
