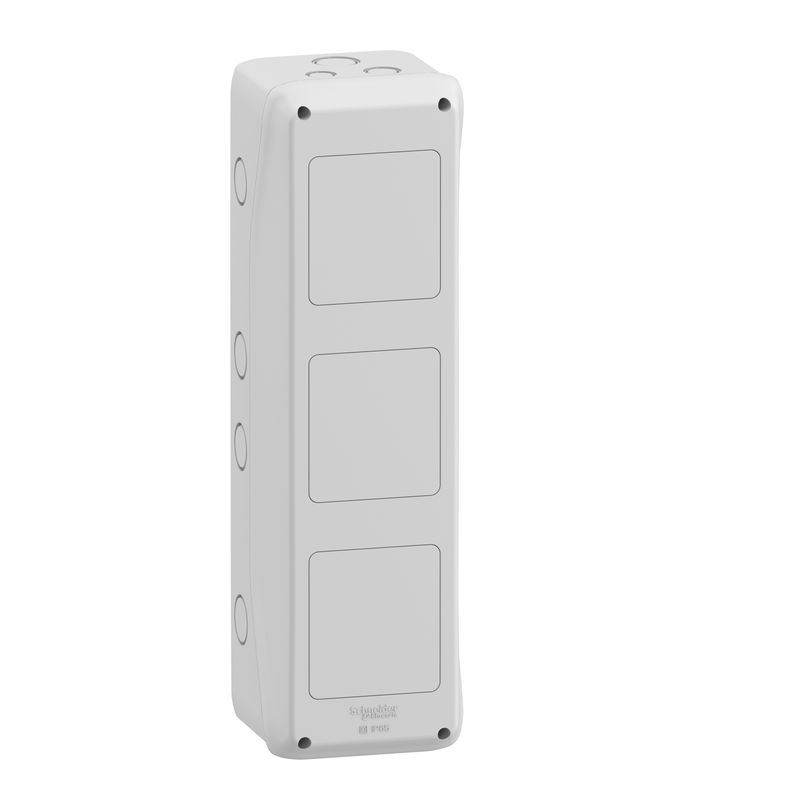

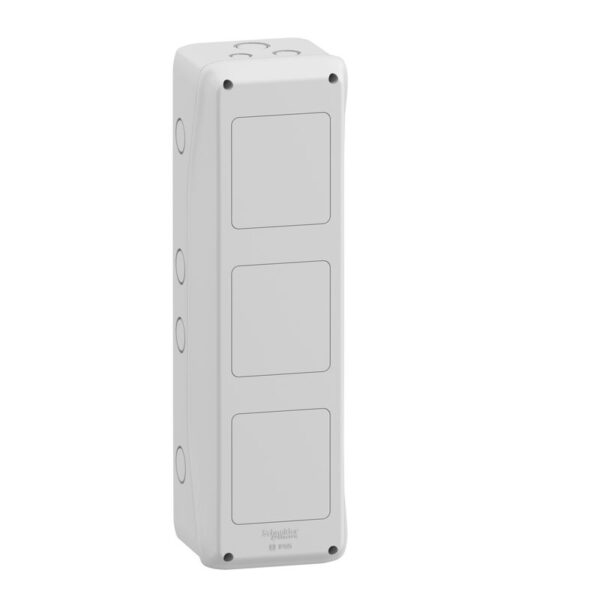

13993 | Mureva interface 3 openings – Schneider Electric

Name: 13993 - Kaedra - interface enclosure - 3 openings | Schneider Electric
Brand: Schneider Electric
SKU: 13993
Price: 3383.10 INR
Availability: BackOrder

SKU: 13993

Original price was: ₹6,265.00.Current price is: ₹3,383.10. Excl. GST

Dispatch By : 16 Weeks

20 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range	Mureva
Product name	Mureva Enclosure
Product or component type	Weatherproof enclosure
enclosure type	Interface enclosure
Mounting plate description	Without mounting plate
Complementary
Enclosure mounting	Surface
Electrical insulation class	Class II Double insulation
Number of openings of interface	3
Number of plates	1 for 65 x 85 power outlets 3 for push-button controls
Provided equipment	1 plate for 65 x 85 power outlet 3 plate for push-button control
Type of front cover	Opaque
Number of pre-cutouts PG ISO	3
Enclosure material	Self-extinguishing polymer
Base dimension	90 x 100 mm
Width	138 mm
Height	460 mm
Depth	160 mm
Internal depth	88 mm
Colour	Enclosure: light grey (RAL 7035)
Environment
Standards	IEC 60670-1 IEC 60670-24 EN 50262 IEC 60695-2-1
Fire resistance	650 °C conforming to IEC 60695-2-1
IP degree of protection	IP65 conforming to IEC 60529
IK degree of protection	IK09 conforming to EN 50102
Environmental characteristics (UV)	UV resistant: class 3 conforming to ISO 4582:2010 Ultraviolet degradation test conforming to ISO 4892-2:2013
Overvoltage category	II
Ambient air temperature for operation	-25…60 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	17.000 cm
Package 1 Width	15.500 cm
Package 1 Length	47.000 cm
Package 1 Weight	1.310 kg
Unit Type of Package 2	P12
Number of Units in Package 2	66
Package 2 Height	80.000 cm
Package 2 Width	80.000 cm
Package 2 Length	120.000 cm
Package 2 Weight	98.460 kg
Contractual warranty
Warranty (in months)	18
