140CRA31908 | Quantum S908 adapter - Schneider Electric - Image 1
Click to enlarge

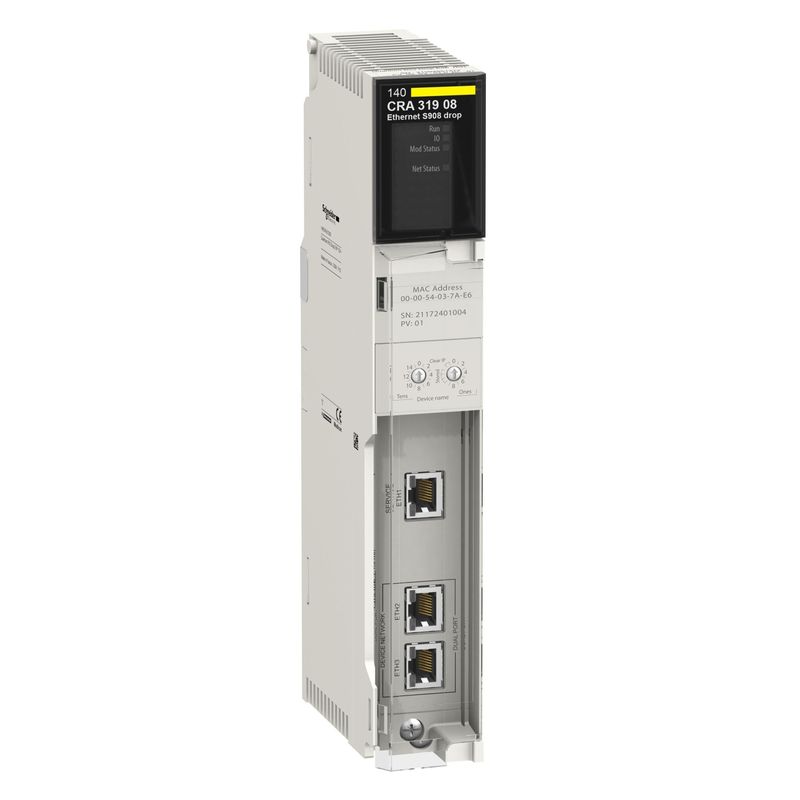

    140CRA31908 | Quantum S908 adapter – Schneider Electric

    SKU: 140CRA31908

    Original price was: ₹488,284.00.Current price is: ₹322,267.44. Excl. GST

    Dispatch By : 16 Weeks

    Dispatch By : 16 Weeks

    13 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Specifications

    Main
    Range of productModicon Quantum
    Product or component typeEthernet RIO drop adaptor
    Number of port3
    Integrated connection typeEthernet IP/Modbus TCP for service port
    Ethernet IP/Modbus TCP for device network
    Communication port protocolEthernet IP/Modbus TCP
    Product destinationModicon Quantum
    Device applicationTo provide the ability for a M580 system to control Modicon S908 coaxial bus
    Communication serviceThe input data are collected and published to the remote I/O head adaptor
    Output modules are updated with the data received from remote I/O head adaptor
    Complementary
    TopologyDaisy chain loop
    S908 bus
    Local signalling1 LED (green/red) for module status (Mod Status)
    1 LED (green/red) for network communication status (Net Status)
    1 LED (green) for RUN
    1 LED (red) for I/O
    Product compatibilityBMEP586040
    BMEH584040
    BMEP585040
    BMEH586040
    BMEP584040
    Environmental characteristicStandard environment
    Hazardous location class I division 2 conforming to EN/IEC 61131-1
    Width167 mm
    Height50 mm
    Net weight0.554 kg
    Environment
    Product certificationsUL 508
    CE
    C-Tick
    StandardsIEC 61000-4-16
    CSA C22.2 No 142
    IEC 55011
    IP degree of protectionIP20 conforming to IEC 61131-2
    IP20 conforming to IEC 60527
    Overvoltage categoryClass I conforming to IEC 61131-2
    Ambient air temperature for operation0…60 °C conforming to IEC 60068-2-2
    0…60 °C conforming to IEC 60068-2-2
    Ambient air temperature for storage-40…85 °C conforming to IEC 60068-2-2
    -40…85 °C conforming to IEC 60068-2-2
    Vibration resistance3.5 mm constant amplitude (f= 0.5…8.4 Hz) conforming to IEC 61131-2
    1 gn constant acceleration (f= 8.4…150 Hz) conforming to IEC 61131-2
    Operating altitude2000 m
    Maximum altitude transport3000 m
    Relative humidity93 % conforming to IEC 60068
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height5.000 cm
    Package 1 Width16.500 cm
    Package 1 Length31.500 cm
    Package 1 Weight592.000 g
    Unit Type of Package 2S03
    Number of Units in Package 27
    Package 2 Height30.000 cm
    Package 2 Width30.000 cm
    Package 2 Length40.000 cm
    Package 2 Weight4.590 kg
    Contractual warranty
    Warranty (in months)18
