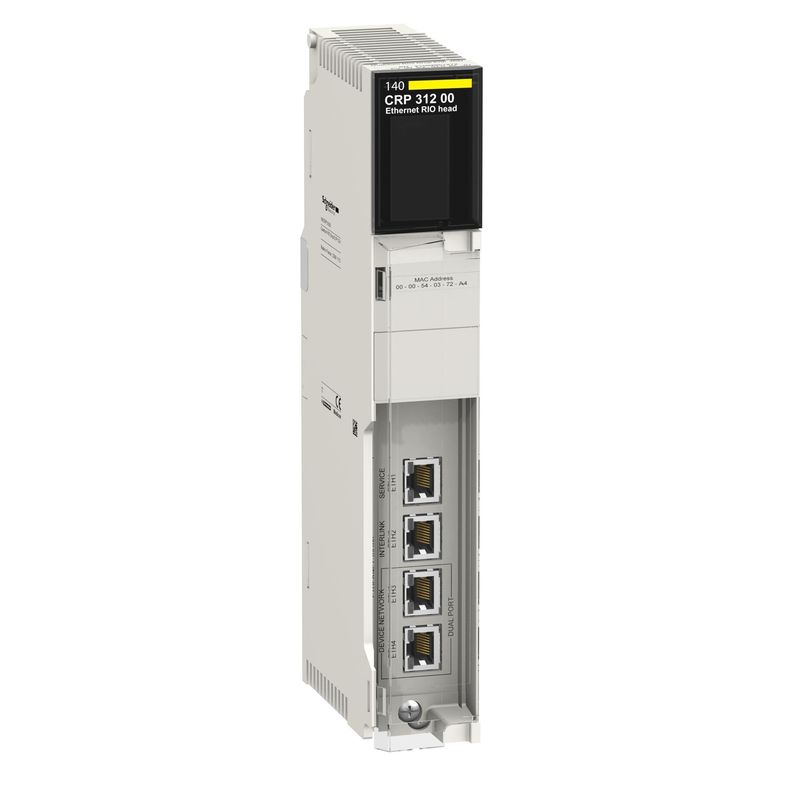

140CRP31200C | Quantum Ethernet RIO Head C/Coated – Schneider Electric

Name: 140CRP31200C - Quantum Ethernet RIO Head - conformal coated | Schneider Electric
Brand: Schneider Electric
SKU: 140CRP31200C
Price: 450977.12 INR
Availability: BackOrder

SKU: 140CRP31200C

Original price was: ₹524,392.00.Current price is: ₹450,977.12. Excl. GST

Dispatch By : 16 Weeks

17 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range of product	Modicon Quantum
Product or component type	Ethernet RIO head for Quantum
Number of port	4
Integrated connection type	Ethernet IP/Modbus TCP for service port Ethernet IP/Modbus TCP for interlink port Ethernet IP/Modbus TCP for device network
Communication port protocol	Ethernet IP/Modbus TCP
Communication service	Diagnostics for remote I/O devices Allows PLC to connect to an Ethernet network RSTP support Configure IP parameters Configuration for remote I/O devices
Complementary
Topology	Daisy chain loop
Local signalling	1 LED (green) for activity 1 LED (green) for ready 1 LED (green/red) for module status (Mod Status) 1 LED (green/red) for network communication status (Net Status)
Product compatibility	140CPU67160 140CPU65160 140CPU67261 140CPU65260 140CPU65150
Environmental characteristic	Hazardous location class I division 2 conforming to EN/IEC 61131-1 Harsh environment
Width	167 mm
Height	50 mm
Net weight	0.554 kg
Environment
Product certifications	UL 508 C-Tick CE
Standards	EN 55011 CSA C22.2 No 142 IEC 61000-4-16
IP degree of protection	IP20 conforming to EN 61131-2 IP20 conforming to IEC 60527
Overvoltage category	Class I conforming to EN 61131-2
Ambient air temperature for operation	0…60 °C conforming to IEC 60068-2-2 0…60 °C conforming to IEC 60068-2-2
Ambient air temperature for storage	-40…85 °C conforming to IEC 60068-2-2 -40…85 °C conforming to IEC 60068-2-2
Vibration resistance	3.5 mm constant amplitude (f= 0.5…8.4 Hz) conforming to EN 61131-2 1 gn constant acceleration (f= 8.4…150 Hz) conforming to EN 61131-2
Operating altitude	2000 m
Maximum altitude transport	3000 m
Relative humidity	93 % conforming to IEC 60068
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.0 cm
Package 1 Width	16.5 cm
Package 1 Length	31.5 cm
Package 1 Weight	554.0 g
Contractual warranty
Warranty (in months)	18
