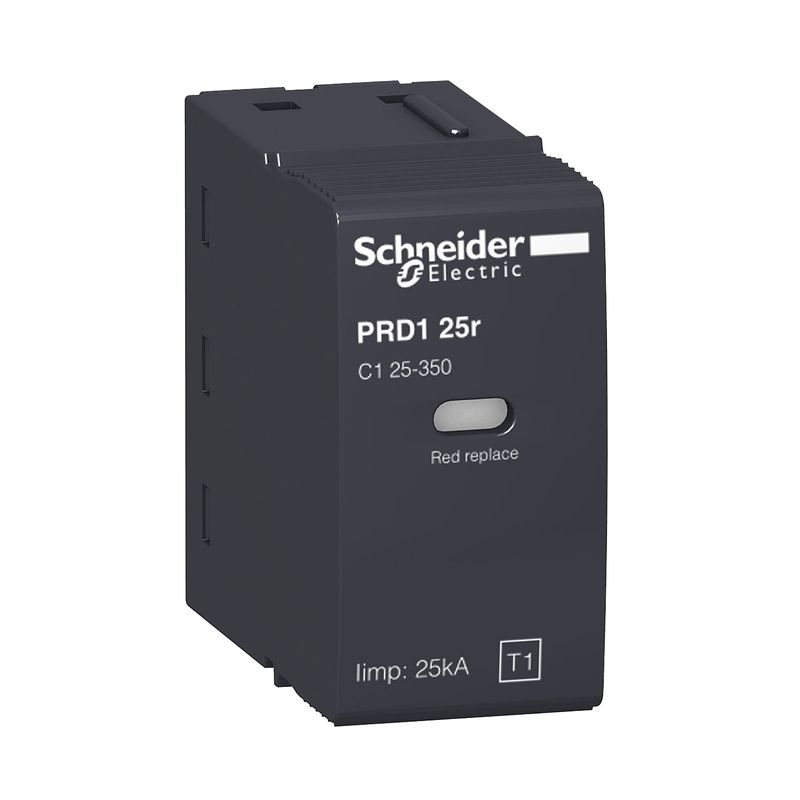

16315 | CARTRIDGE C1 25 – 350V SURGE ARRESTER – Schneider Electric

Name: 16315 - Cartridge C1 25-350 for surge arrester PRD1 | Schneider Electric
Brand: Schneider Electric
SKU: 16315
Price: 6913.83 INR
Availability: BackOrder

SKU: 16315

Original price was: ₹9,471.00.Current price is: ₹6,913.83. Excl. GST

Dispatch By : 18 Weeks

14 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
range of product	Acti9
Product or component type	Cartridge
Device short name	C1 25-350
Range compatibility	Acti9 PRD1 25r
Surge arrester type	Electrical distribution network
Standards	IEC 61643-1 EN 61643-11
Product certifications	KEMA-KEUR
Complementary
Surge arrester class type	Type 1
Surge arrester technology	Spark gap
Product destination	Surge protection device PRD1 25r 1P Surge protection device PRD1 25r 1P + N Surge protection device PRD1 25r 3P Surge protection device PRD1 25r 3P + N
Earthing system	TN TT
[Ue] rated operational voltage	230 V AC 50 Hz
Nominal discharge current	25 kA
[Uc] maximum continuous operating voltage	350 V
Maximum [Up] voltage protection level	1.5 kV type 1
[Ifi] follow current	25 kA
Local signalling	Flag (white/red)
Mounting mode	Plug-in
Mounting support	Into SPD module
9 mm pitches	2.5
Height	50 mm
Width	23 mm
Depth	57 mm
Colour	Anthracite grey (RAL 7016)
Material	PBT (polybutylene terephthalate)
Response time	< 100 ns
Environment
IP degree of protection	IP20 front face:
Relative humidity	5…90 %
Operating altitude	0…2000 m
Ambient air temperature for operation	-25…60 °C
Ambient air temperature for storage	-40…80 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8 cm
Package 1 Width	4.4 cm
Package 1 Length	11 cm
Package 1 Weight	152 g
Unit Type of Package 2	S02
Number of Units in Package 2	35
Package 2 Height	15 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	5.543 kg
Contractual warranty
Warranty (in months)	18
