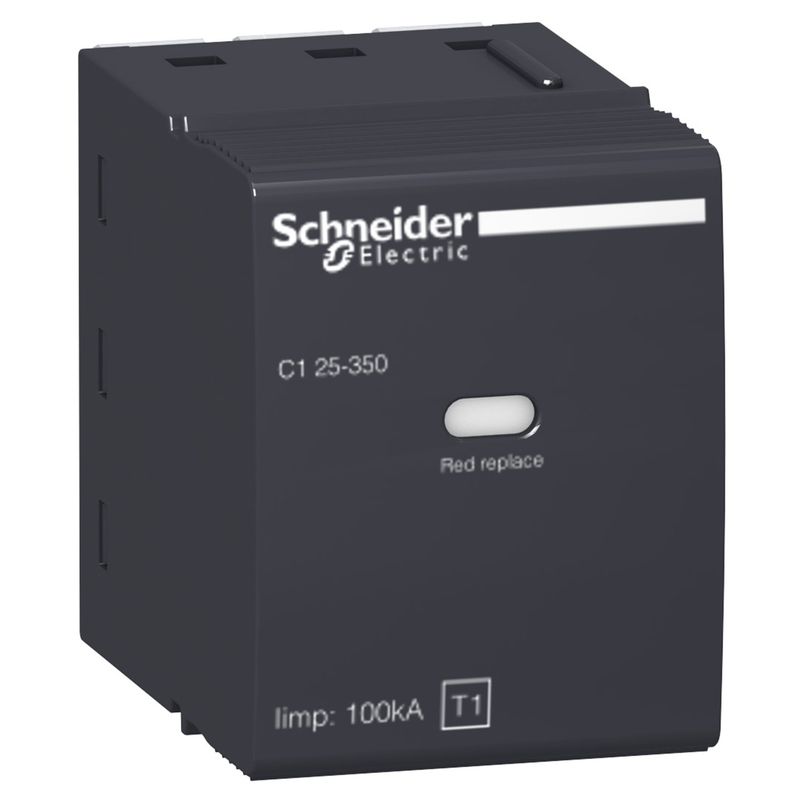

16317 | CARTRIDGE C1 NEUTRAL – 350V SURGE ARREST – Schneider Electric

Name: 16317 - Cartridge C1 Neutral-350 for surge arrester PRD1 25r and PRD1 | Schneider Electric
Brand: Schneider Electric
SKU: 16317
Price: 8305.21 INR
Availability: BackOrder

SKU: 16317

Original price was: ₹11,377.00.Current price is: ₹8,305.21. Excl. GST

Dispatch By : 18 Weeks

10 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
range of product	Acti9
Product or component type	Cartridge
Device short name	C1 Neutral-350
Range compatibility	Acti9 PRD1 25r Acti9 PRD1 Master
Surge arrester type	Electrical distribution network
Standards	IEC 61643-1 EN 61643-11
Product certifications	KEMA-KEUR
Complementary
Surge arrester class type	Type 1
Surge arrester technology	Spark gap
Product destination	Surge protection device PRD1 25r 1P + N Surge protection device PRD1 25r 3P + N Surge protection device PRD1 Master 1P + N Surge protection device PRD1 Master 3P + N
Earthing system	TN TT
[Ue] rated operational voltage	230 V AC 50 Hz
Nominal discharge current	20 kA
[Uc] maximum continuous operating voltage	350 V
Maximum [Up] voltage protection level	1.5 kV type 1
[Ifi] follow current	0.1 kA
Mounting mode	Plug-in
Mounting support	Into SPD module
9 mm pitches	4
Height	50 mm
Width	36 mm
Depth	57 mm
Colour	Anthracite grey (RAL 7016)
Material	PBT (polybutylene terephthalate)
Response time	< 100 ns
Environment
IP degree of protection	IP20 front face:
Relative humidity	5…90 %
Operating altitude	0…2000 m
Ambient air temperature for operation	-25…60 °C
Ambient air temperature for storage	-40…80 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	6.700 cm
Package 1 Width	4.000 cm
Package 1 Length	9.500 cm
Package 1 Weight	213.000 g
Unit Type of Package 2	S02
Number of Units in Package 2	35
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	7.868 kg
Contractual warranty
Warranty (in months)	18
