16329 | PRD1 25R 1P 350 V AVEC REPORT SIGNALISA – Schneider Electric

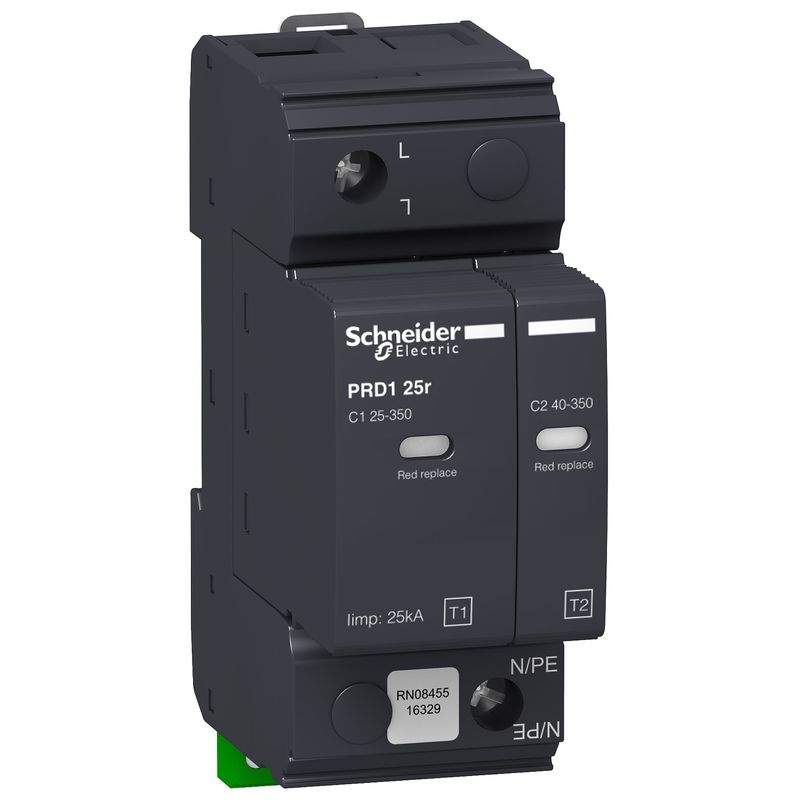

Name: 16329 - PRD1 25r modular surge arrester - 1 pole - 350V - with remote | Schneider Electric
Brand: Schneider Electric
SKU: 16329
Price: 19502.68 INR
Availability: BackOrder

SKU: 16329

Original price was: ₹26,716.00.Current price is: ₹19,502.68. Excl. GST

Dispatch By : 18 Weeks

16 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range of product	PRD1
range of product	Acti9
Product name	Acti9 PRD1
Product or component type	Surge arrester with pluggable cartridge
Device short name	PRD1 25r
Device application	Distribution
Standards	EN 61643-11:2012 IEC 61643-11:2011
Product certifications	CE
Quality labels	KEMA-KEUR
Poles description	1P
Remote signalling	With
Signal contacts composition	1 SD (1 C/O)
Surge arrester type	Electrical distribution network
Earthing system	TN-C
Complementary
Surge arrester class type	Type 1 + 2
Surge arrester technology	MOV Spark gap
[Ue] rated operational voltage	230 V AC (+/- 10 %) at 50 Hz
Nominal discharge current	Common mode: 25 kA (L/PE)
Maximum discharge current	Common mode: 40 kA L/PE
[Iimp] impulse current	Common mode: 25 kA L/PE 12.5 A.s
[Uc] maximum continuous operating voltage	Common mode: 350 V L/PE
Maximum [Up] voltage protection level	Common mode 1.5 kV type 2 L/PE
[Ut] temporary overvoltage	1200 V N/PE 200 ms withstand 415 V L/N 5 s withstand 440 V L/N 7200 s safe failure mode
[Ifi] follow current	25 kA differential mode L/N 3 kA differential mode L/N 100 A common mode N/PE
Short-circuit withstand	25 kA
Disconnector device type	Associated fuse gG 315 A up to Isc = 25 kA Associated circuit breaker NSXm 100E TM-D up to Isc = 16 kA Associated circuit breaker NSXm 100B TM-D up to Isc = 25 kA Associated circuit breaker Compact NSX100B TM-D up to Isc = 25 kA
Signalling circuit voltage	1 A/250 V AC 1 A/30 V DC
Mounting mode	Clip-on (DIN rail)
9 mm pitches	4
Height	90 mm
Width	36 mm
Depth	71 mm
Net weight	334 g
Colour	Anthracite grey (RAL 7016)
Material	PBT (polybutylene terephthalate)
Connections – terminals	Tunnel type terminal (top or bottom) 10…35 mm² rigid Tunnel type terminal (top or bottom) 10…25 mm² flexible
Tightening torque	4.5 N.m
Impulse current	25 kA
Compatibility code	PRD1_25r
Market segment	Small commercial
Environment
IK degree of protection	IK05 conforming to IEC 62262
Relative humidity	5…95 %
Operating altitude	2000 m
Ambient air temperature for operation	-25…60 °C
Ambient air temperature for storage	-40…80 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8 cm
Package 1 Width	4.5 cm
Package 1 Length	11 cm
Package 1 Weight	357 g
Unit Type of Package 2	S02
Number of Units in Package 2	26
Package 2 Height	15 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	9.709 kg
Contractual warranty
Warranty (in months)	18
