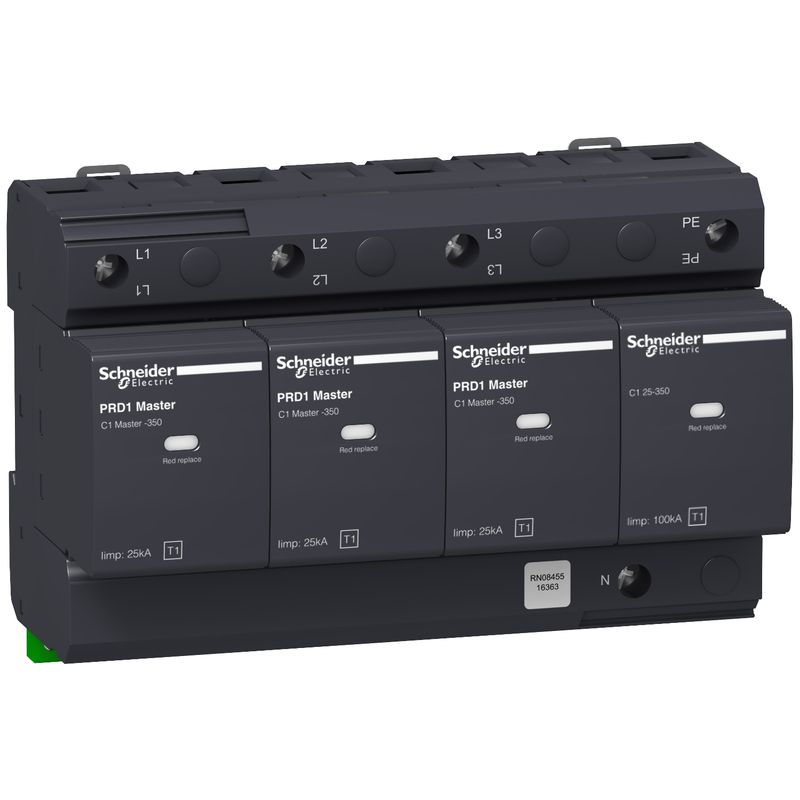

16363 | PRD1 MASTER 3P N 350V WITH REPORT SPD – Schneider Electric

Name: 16363 - PRD1 Master modular surge arrester - 3 poles + N - 350V - with | Schneider Electric
Brand: Schneider Electric
SKU: 16363
Price: 46798.11 INR
Availability: BackOrder

SKU: 16363

Original price was: ₹64,107.00.Current price is: ₹46,798.11. Excl. GST

Dispatch By : 19 Weeks

18 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range of product	PRD1 Master
range of product	Acti9
Product name	Acti9 PRD1 Master
Product or component type	Surge arrester with pluggable cartridge
Device short name	PRD1 Master
Device application	Distribution
Standards	EN 61643-11:2012 IEC 61643-11:2011
Product certifications	CE
Quality labels	KEMA-KEUR
Poles description	3P + N
Remote signalling	With
Signal contacts composition	1 SD (1 C/O)
Surge arrester type	Electrical distribution network
Earthing system	TT TN-S
Complementary
Surge arrester class type	Type 1
Surge arrester technology	Spark gap
[Ue] rated operational voltage	230/400 V AC (+/- 10 %) at 50/60 Hz
Nominal discharge current	Common mode: 100 kA (N/PE) Differential mode: 25 kA (L/N)
Maximum discharge current	Common mode: 50 kA L/N
[Iimp] impulse current	Common mode: 100 kA N/PE 50 A.s Differential mode: 25 kA L/N 12.5 A.s
[Uc] maximum continuous operating voltage	Differential mode: 350 V L/N Common mode: 350 V N/PE
Maximum [Up] voltage protection level	Common mode 1.5 kV type 2 N/PE Differential mode 1.5 kV type 2 L/N
[Ifi] follow current	0.1 kA common mode N/PE 50 kA differential mode L/N
Short-circuit withstand	50 kA
Disconnector device type	Associated fuse gG 315 A standard Associated circuit breaker Compact NSX100F 100 A curve C – Icu 36 kA Associated circuit breaker Compact NSX100N 100 A curve C – Icu 50 kA
Signalling circuit voltage	1 A/250 V AC 50/60 Hz
Mounting mode	Clip-on (DIN rail)
9 mm pitches	16
Height	90 mm
Width	142.8 mm
Depth	70 mm
Net weight	1.31 kg
Colour	Anthracite grey (RAL 7016)
Material	PBT (polybutylene terephthalate)
Connections – terminals	Tunnel type terminal (downside) 2.5…35 mm² Tunnel type terminal (upside) 2.5…35 mm²
Tightening torque	4.5 N.m
Impulse current	25 kA
Compatibility code	PRD1_Master
Market segment	Small commercial
Environment
IK degree of protection	IK05 conforming to IEC 62262
Relative humidity	5…90 %
Operating altitude	2000 m
Ambient air temperature for operation	-25…60 °C
Ambient air temperature for storage	-40…80 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	9.500 cm
Package 1 Width	14.000 cm
Package 1 Length	18.800 cm
Package 1 Weight	1.439 kg
Unit Type of Package 2	S03
Number of Units in Package 2	7
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	10.778 kg
Contractual warranty
Warranty (in months)	18
