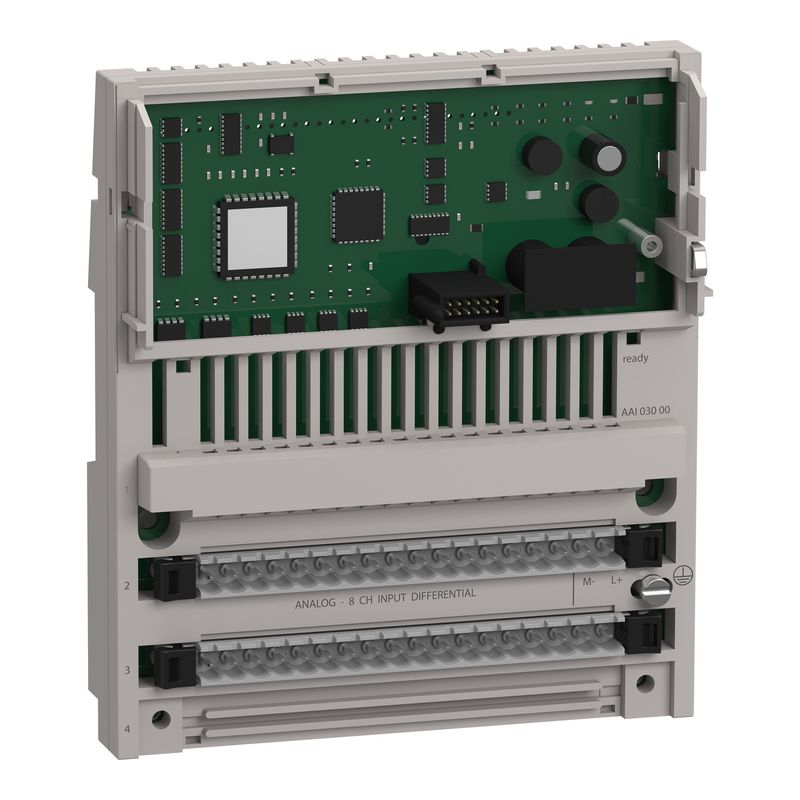

170AAI03000 | Momentum Base – 8AI-DIFF – Schneider Electric

Name: 170AAI03000 - Distributed analog input Modicon Momentum - 8 Input | Schneider Electric
Brand: Schneider Electric
SKU: 170AAI03000
Price: 98259.48 INR
Availability: BackOrder

SKU: 170AAI03000

Original price was: ₹148,878.00.Current price is: ₹98,259.48. Excl. GST

Dispatch By : 19 Weeks

14 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range of product	Modicon Momentum automation platform
Product or component type	Analogue input base
Analogue input number	8
Complementary
Data format	Full 16 bits signed
Absolute accuracy error	+/- 0.13 % full scale 25 °C 1…5 V +/- 0.19 % full scale 60 °C 1…5 V +/- 0.21 % full scale 25 °C +/- 5 V +/- 0.26 % full scale 60 °C +/- 5 V +/- 0.27 % full scale 25 °C +/- 10 V +/- 0.27 % full scale 25 °C 4…20 mA +/- 0.32 % full scale 25 °C +/- 20 mA +/- 0.32 % full scale 60 °C +/- 10 V +/- 0.38 % full scale 60 °C 4…20 mA +/- 0.41 % full scale 60 °C +/- 20 mA
Conversion time	12 ms 8
Permissible common mode voltage	100 V 47…63 Hz DC between channels to ground 250 V 47…63 Hz AC between channels to ground
Common mode rejection	> 80 dB between channels to ground
External power requirement	< 382 mA DC 20.4…28.8 V DC 24 V DC
Reverse polarity protection	Internal
Analogue input type	Differential +/-20 mA Differential 4…20 mA Differential +/- 10 V Differential +/- 5 V Differential 1…5 V Differential +/- 20 mA
Analogue input resolution	14 bits + sign +/- 20 mA 15 bits + sign 4…20 mA 14 bits + sign +/- 10 V 14 bits + sign +/- 5 V 15 bits + sign 1…5 V
Input impedance	250 kOhm > 0.1 kOhm
Common mode rejection	> 80 dB
Isolation between channels	+/- 200 V
Isolation between channels and bus	500 V AC
Isolation between channels and ground	500 V AC
Electrical connection	2 connectors for removable terminal blocks
Local signalling	1 LED green for ready 8 LEDs for channel status
Height	125 mm
Width	141.5 mm
Depth	47.5 mm
Net weight	0.215 kg
Environment
Protective treatment	TC
Marking	CE
Product certifications	FM Class 1 Division 2 CSA UL
Standards	EN 50081-2 IEC 1131
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-40…85 °C
Relative humidity	0…95 % without condensation
Operating altitude	<= 5000 m
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.500 cm
Package 1 Width	18.000 cm
Package 1 Length	26.000 cm
Package 1 Weight	400.000 g
Unit Type of Package 2	S03
Number of Units in Package 2	10
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	4.421 kg
Contractual warranty
Warranty (in months)	18
