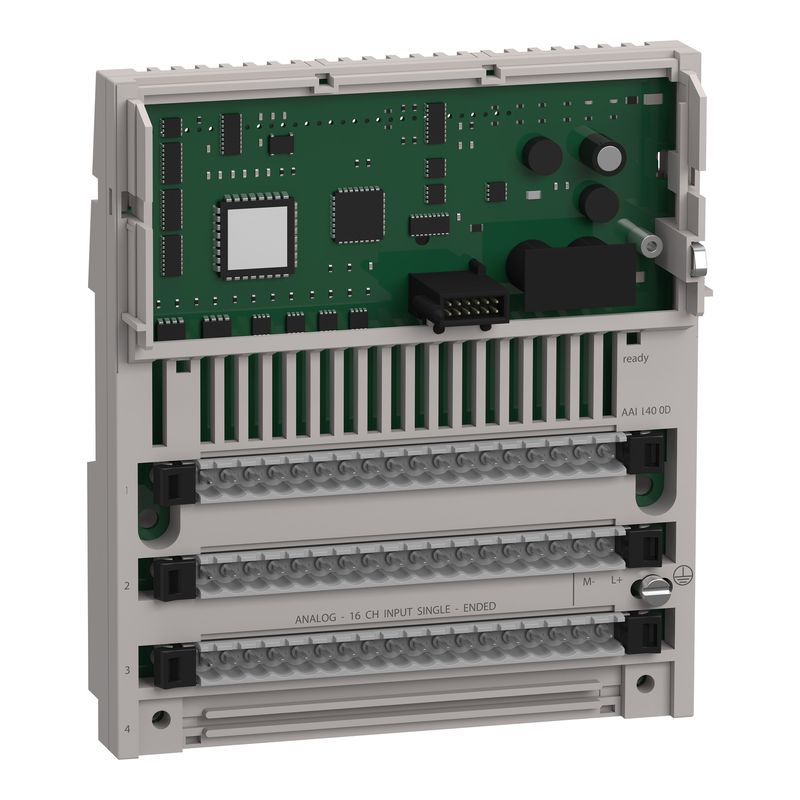

170AAI14000 | Momentum Base – 16AI – Schneider Electric

Name: 170AAI14000 - Distributed analog input Modicon Momentum - 16 Input | Schneider Electric
Brand: Schneider Electric
SKU: 170AAI14000
Price: 130977.00 INR
Availability: BackOrder

SKU: 170AAI14000

Original price was: ₹198,450.00.Current price is: ₹130,977.00. Excl. GST

Dispatch By : 19 Weeks

18 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range of product	Modicon Momentum automation platform
Product or component type	Analogue input base
Analogue input number	16
Type of filter	Low pass input filter 10 kHz
Complementary
Data format	Full 16 bits signed
Absolute accuracy error	+/- 0.15 % of full scale 25 °C +/- 10 V +/- 0.15 % of full scale 25 °C +/- 5 V +/- 0.25 % full scale 25 °C 4…20 mA +/- 0.25 % full scale 60 °C +/- 10 V +/- 0.25 % full scale 60 °C +/- 5 V +/- 0.45 % full scale 60 °C 4…20 mA
Full scale	10 V +/- 10 V 16 mA 4…20 mA 5 V +/- 5 V
Update time	25 ms
Permissible common mode voltage	100 V 47…63 Hz DC between channels to ground 250 V 47…63 Hz AC between channels to ground
External power requirement	+/- 30 V DC
Reverse polarity protection	Internal
Analogue input type	Single ended 4…20 mA Single ended +/- 10 V Single ended +/- 5 V
Analogue input resolution	12 bits 4…20 mA 12 bits + sign +/- 10 V 12 bits + sign +/- 5 V
Input impedance	< 0.25 Ohm > 2200 kOhm
Temperature drift	30 %oFS/°C +/- 10 V 60 %oFS/°C 4…20 mA
Typical current consumption	305 mA at 24 V DC
Power dissipation in W	5.55 W
Isolation between channels and ground	1780 V AC
Electrical connection	2 connectors for removable terminal blocks
Protection type	Internal 2 A slow-blow
Associated fuse rating	500 mA, fast blow
Local signalling	16 LEDs for channel status
Height	125 mm
Width	141.5 mm
Depth	47.5 mm
Net weight	0.215 kg
Environment
Protective treatment	TC
Marking	CE
Product certifications	UL FM Class 1 Division 2 CSA
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-40…85 °C
Relative humidity	0…95 % without condensation
Operating altitude	<= 5000 m
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.500 cm
Package 1 Width	18.000 cm
Package 1 Length	26.000 cm
Package 1 Weight	384.000 g
Unit Type of Package 2	S03
Number of Units in Package 2	10
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	3.850 kg
Contractual warranty
Warranty (in months)	18
