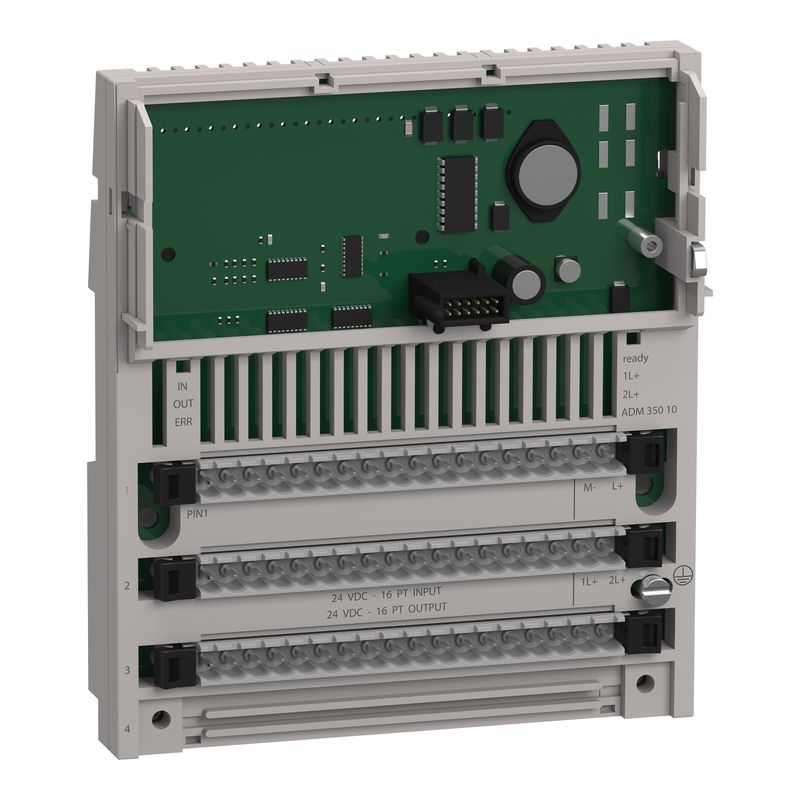

170ADM35010 | Momentum Base – 16 DI/16DO 24VDC – Schneider Electric

Name: 170ADM35010 - Discrete I/O module Modicon Momentum - 16 I/O solid state | Schneider Electric
Brand: Schneider Electric
SKU: 170ADM35010
Price: 49183.20 INR
Availability: BackOrder

SKU: 170ADM35010

Original price was: ₹74,520.00.Current price is: ₹49,183.20. Excl. GST

Dispatch By : 20 Weeks

20 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range of product	Modicon Momentum automation platform
Product or component type	Discrete solid state I/O base DC
Group of channels	2 groups of 8 outputs 1 group of 16 inputs
Discrete input number	16
Discrete input voltage	24 V DC (voltage limits: – 3…30 V)
Discrete input logic	Positive
Discrete output number	16
Discrete output logic	Positive
Discrete output voltage	<= 30 V DC for solid state switch 24 V DC for solid state switch
Complementary
Input resistance	4 kOhm
Peak output current	5 A
Fault type	Overload on output
Response time	< 0.1 ms from state 0 to state 1 on output < 0.1 ms from state 1 to state 0 on output 2.2 ms from state 0 to state 1 on input 3.3 ms from state 1 to state 0 on input
Discrete input compatibility	16 conforming to IEC 1131-2 Type 1 at 24 V DC
Voltage state 1 guaranteed	11…30 V
Voltage state 0 guaranteed	-3…5 V
Current state 1 guaranteed	>= 2.5 mA
Current state 0 guaranteed	<= 1.2 mA
Discrete output number	16 solid state switch at <= 30 V DC 16 solid state switch at 24 V DC
Discrete output current	4 A per group 8 A per module 0.5 A per point
Maximum leakage current	1 mA 24 V DC output circuit
Maximum voltage drop	<0.5 V at state 1 for output circuit
Typical current consumption	250 mA at 24 V DC
Power dissipation in W	6 W
Isolation between channels and bus	500 V AC
Terminals description PLC n°1	(L+)PW_POS (8)IN_DIS#8 (6)IN_DIS#6 (5)IN_DIS#5 TB (2)IN_DIS#2 (12)IN_DIS#12 (M-)PW_NEG (15)IN_DIS#15 (13)IN_DIS#13 (10)IN_DIS#10 (3)IN_DIS#3 (9)IN_DIS#9 (7)IN_DIS#7 (1)IN_DIS#1 (11)IN_DIS#11 (14)IN_DIS#14 (16)IN_DIS#16 (4)IN_DIS#4
Terminals description PLC n°2	(10)OUT_DIS#10 (6)OUT_DIS#6 (8)OUT_DIS#8 (1)OUT_DIS#1 (11)OUT_DIS#11 (4)OUT_DIS#4 (5)OUT_DIS#5 (15)OUT_DIS#15 (2L+)PW_POS TB_1 (7)OUT_DIS#7 (2)OUT_DIS#2 (14)OUT_DIS#14 (9)OUT_DIS#9 (13)OUT_DIS#13 (3)OUT_DIS#3 (1L+)PW_POS (12)OUT_DIS#12
Local signalling	16 LEDs for channel status
Height	141.5 mm
Width	125 mm
Depth	47.5 mm
Net weight	0.2 kg
Environment
IP degree of protection	IP20
Protective treatment	TC
Marking	CE
Product certifications	UL CSA
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-40…85 °C
Relative humidity	95 % without condensation
Operating altitude	<= 5000 m
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.900 cm
Package 1 Width	18.200 cm
Package 1 Length	26.000 cm
Package 1 Weight	406.000 g
Unit Type of Package 2	S03
Number of Units in Package 2	10
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	4.407 kg
Unit Type of Package 3	P06
Number of Units in Package 3	80
Package 3 Height	75.000 cm
Package 3 Width	60.000 cm
Package 3 Length	80.000 cm
Package 3 Weight	46.000 kg
Contractual warranty
Warranty (in months)	18
