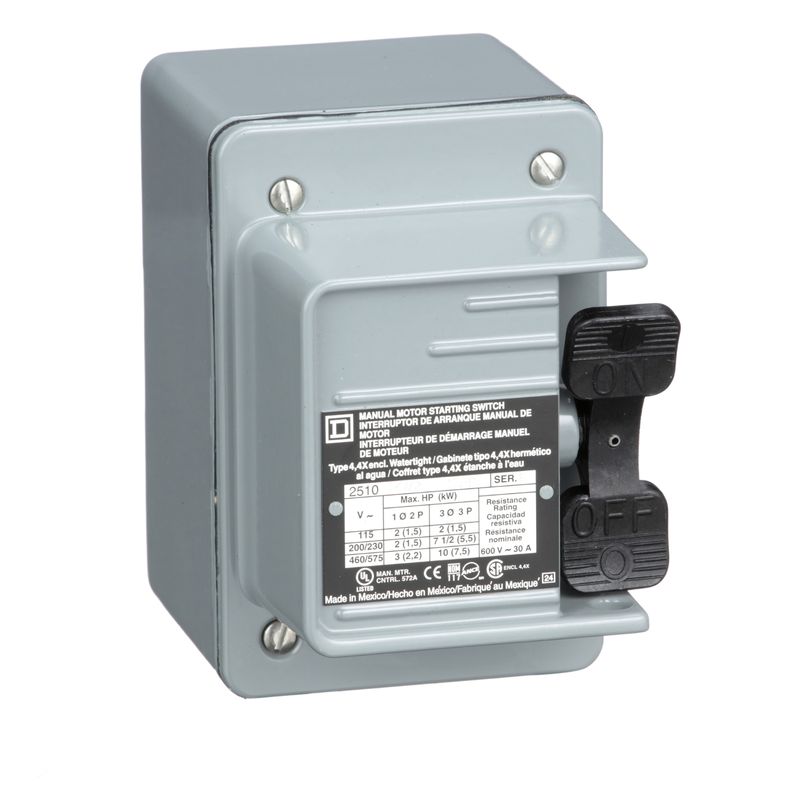

2510KW2 | MANUAL SWITCH 600VAC K+OPTIONS – Schneider Electric

Name: 2510KW2 - Switch, manual, 30A, 3 pole, 10HP at 575VAC, three phase | Schneider Electric
Brand: Schneider Electric
SKU: 2510KW2
Price: 52762.76 INR
Availability: BackOrder

SKU: 2510KW2

Original price was: ₹99,085.00.Current price is: ₹52,762.76. Excl. GST

Dispatch By : 22 Weeks

18 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Product	Single Unit Manual Switch
Type	K
Complementary
Current Rating	30 A
Cable Entry	0.75 NPT (bottom)
Horsepower Rating	2 hp 115 V AC 1 hp 90 V DC 2 hp 115 V DC 1.5 hp 230 V DC 7.5 hp 230 V AC 10 hp 460 V AC 10 hp 575 V AC
Maximum Voltage Rating	600 V AC 230 V DC
Number of Poles	3P
Control Unit Type	Toggle
Number of Phases	3 phase
Pilot Light	No indicator
Starter Type	Non reversing
Electrical Connection	Screw clamp terminals
Wire Gauge	14 AWG…10 AWG copper
Height	4.38 in (111.25 mm)
Width	3 in (76.2 mm)
Depth	4.25 in (107.95 mm)
Environment
Certifications	UL listed file E42243 CCN NLRV CSA LR25490 class 3211 05
NEMA Enclosure Rating	NEMA 4 die cast zinc alloy standard size
Ordering and shipping details
Category	US10CP121102
Discount Schedule	0CP1
GTIN	785901077053
Returnability	Yes
Country of origin	MX
Packing Units
Unit Type of Package 1	PCE
Nbr. of units in pkg.	1
Package 1 Height	3.800 in (9.652 cm)
Package 1 Width	4.800 in (12.192 cm)
Package 1 Length	5.400 in (13.716 cm)
Package weight(Lbs)	2.930 lb(US) (1.329 kg)
Contractual warranty
Warranty (in months)	18
