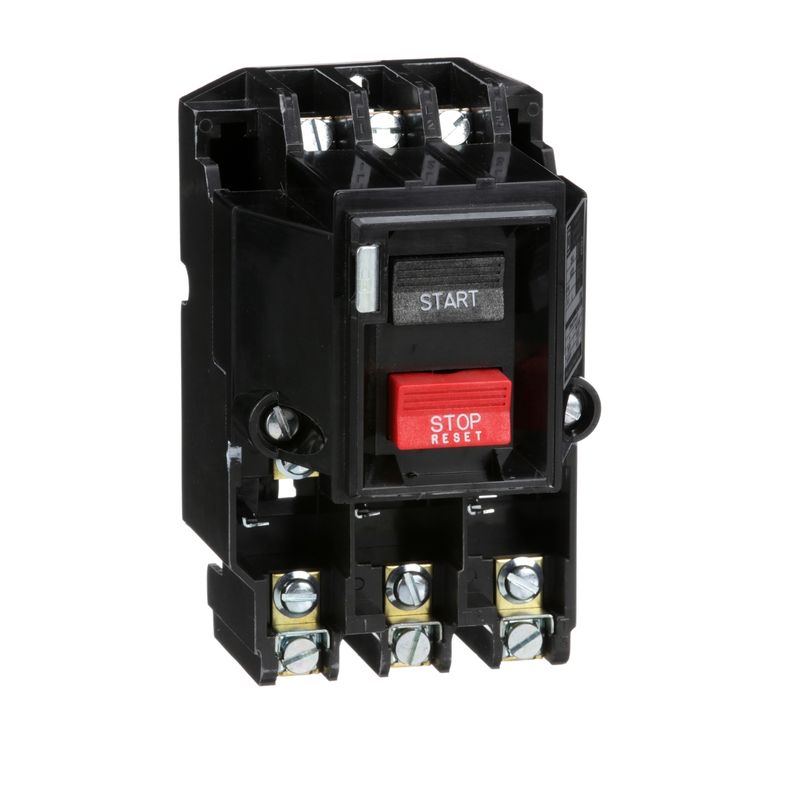

2510MCO3 | MANUAL STARTER 600VAC – Schneider Electric

Name: 2510MCO3 - Manual starter, integral horsepower, NEMA M1, 600VAC, 3 pole | Schneider Electric
Brand: Schneider Electric
SKU: 2510MCO3
Price: 78495.83 INR
Availability: BackOrder

SKU: 2510MCO3

Original price was: ₹147,410.00.Current price is: ₹78,495.83. Excl. GST

Dispatch By : 22 Weeks

17 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Product	Manual Starter
Type	M
NEMA Size	M-1
Complementary
Control Unit	Push-button
Pilot Light	No indicator
Horsepower Rating	7.5 hp 200…230 V AC, 3 phase 10 hp 380…575 V AC, 3 phase
Voltage Rating	600 V AC
Number of Poles	3P
Starter Type	Non reversing
Electrical Connection	Pressure wire clamp
Overload Relay Type	Melting alloy
Number of Thermal Units Required	3
Wire Gauge	14 AWG…8 AWG copper
Auxiliary Contacts	Without
Height	5.72 in (145.29 mm)
Width	3.5 in (88.9 mm)
Depth	4.03 in (102.36 mm)
Net Weight	2.20 lb(US) (1.00 kg)
Environment
Certifications	CSA LR60905 class 3211 05 UL listed file E42243 CCN NLRV
NEMA Enclosure Rating	Not rated (open device)
Ordering and shipping details
Category	US10CP121103
Discount Schedule	0CP1
GTIN	785901792208
Returnability	Yes
Country of origin	MX
Packing Units
Unit Type of Package 1	PCE
Nbr. of units in pkg.	1
Package 1 Height	6.500 in (16.510 cm)
Package 1 Width	5.000 in (12.700 cm)
Package 1 Length	8.800 in (22.352 cm)
Package weight(Lbs)	35.199 oz (997.902 g)
Contractual warranty
Warranty (in months)	18
