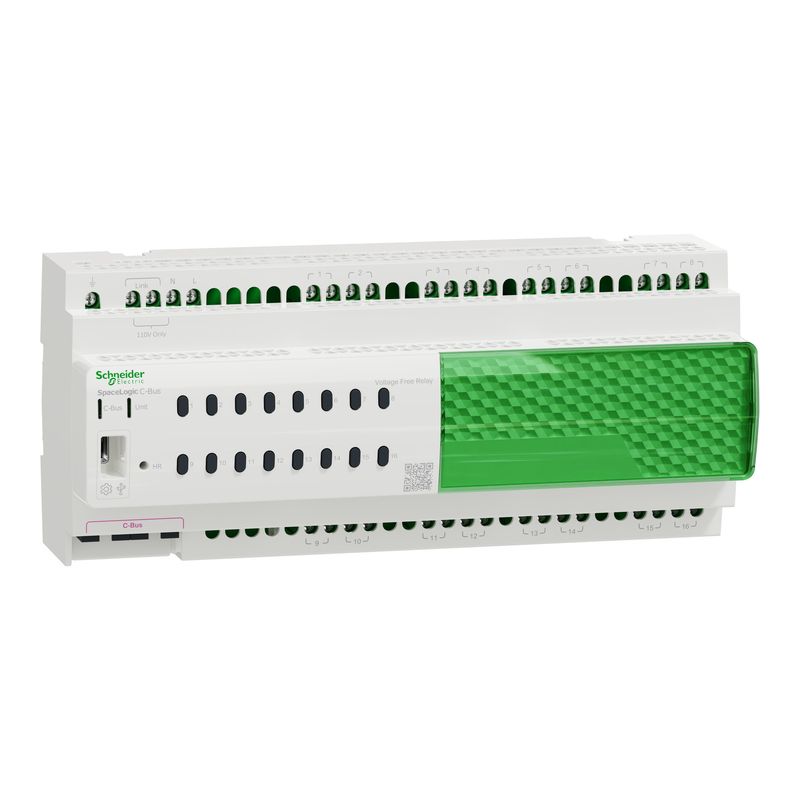

5516RVF | C-BUS RELAY VOLTAGE FREE DIN RAIL 16 CH – Schneider Electric

Name: 5516RVF - Relay voltage free, SpaceLogic C-Bus, 16 channel | Schneider Electric
Brand: Schneider Electric
SKU: 5516RVF
Price: 773.99 USD
Availability: BackOrder

SKU: 5516RVF

Original price was: $899.99.Current price is: $773.99. Excl. GST

Dispatch By : 7 Weeks

12 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range of product	SpaceLogic C-Bus
Product brand	Schneider Electric
Range	C-Bus
Product or component type	Relay
Device application	Switching loads
[Uc] control circuit voltage	230 V AC 50 Hz +/- 10 % 110 V AC 60 Hz +/- 10 %
Complementary
Maximum switching current	200 mA
Rated voltage	220…240 V AC 50 Hz 100…120 V AC 60 Hz
switching power	400 W 150 W
Local signalling	Multi-colour LED
Connector type	2 x RJ45 in parallel
Load type	LED lamp: 400 W, 230 V LED lamp: 150 W, 110 V Incandescent lamps: , 10 A Motor: , 5 A Inductive load: , 10 A
[Ie] rated operational current	20 mA at 20…36 V
Inrush current	800 A during 0.2 ms 165 A during 20 ms
[Us] rated supply voltage	27…35 V DC
Minimum switching capacity	12 V at 100 mA DC
Number of modules	12
Operating rate	6 operations/minute
Number of channels	16
Width	216 mm
Height	92 mm
Depth	63 mm
Connections – terminals	Screw terminal block
Connections – terminals	RJ45 connector
Device mounting	DIN rail
minimum switching current	100 mA
Minimum switching voltage	12 V
Net weight	665 g
Operating position	Horizontal position
Number of contacts as normally open contact	16
Contact terminal arrangement	Separate
With LED indication	True
IP degree of protection	IP20
control button type	Push-button
Forced guided contact present	False
Device presentation	Complete device
Control circuit type	DC
Contacts type and composition	NO
Tightening torque	0.6 N.m
Environment
Ambient air temperature for operation	-5…55 °C
Relative humidity	10…93 %
Product certifications	CE RCM UKCA
Standards	AS/NZS 60669.2.1 IEC 60669-2-1 IEC 60669-1
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	10.200 cm
Package 1 Width	9.600 cm
Package 1 Length	22.300 cm
Package 1 Weight	803.000 g
Unit Type of Package 2	S03
Number of Units in Package 2	10
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	8.441 kg
Unit Type of Package 3	P12
Number of Units in Package 3	240
Package 3 Height	90.000 cm
Package 3 Width	80.000 cm
Package 3 Length	120.000 cm
Package 3 Weight	216.584 kg
Contractual warranty
Warranty (in months)	18
