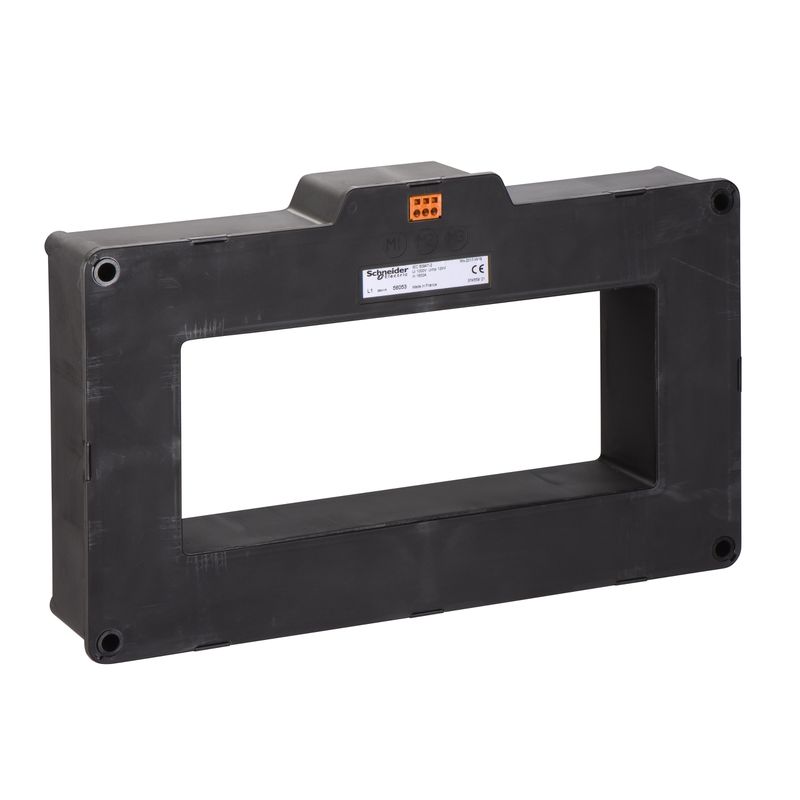

56053 | Vigirex rectangular sensor 280×115 mm – Schneider Electric

Name: 56053 - Rectangular sensor L1 type, Vigirex, 280 mm X 115 mm, 1600 A | Schneider Electric
Brand: Schneider Electric
SKU: 56053
Price: 436235.25 INR
Availability: BackOrder

SKU: 56053

Original price was: ₹528,770.00.Current price is: ₹436,235.25. Excl. GST

Dispatch By : 15 Weeks

11 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range	VigiPacT
Device short name	L
Product or component type	Earth leakage current sensor
Device application	Equipment monitoring and control
Range compatibility	VigiPacT RH10M residual current protection relay VigiPacT RH10P residual current protection relay VigiPacT RH21M residual current protection relay VigiPacT RH21P residual current protection relay VigiPacT RH68M residual current protection relay VigiPacT RH86M residual current protection relay VigiPacT RH86P residual current protection relay VigiPacT RH99M residual current protection relay VigiPacT RH99P residual current protection relay VigiPacT RH197M residual current protection relay VigiPacT RH197P residual current protection relay VigiPacT RHU residual current protection relay VigiPacT RHUs residual current protection relay VigiPacT RMH residual current protection relay
current sensor type	Rectangular sensor
[Ie] rated operational current	1600 A
Complementary
Transformer ratio	1/1000
Network frequency	50/60 Hz 400 Hz
[Icw] rated short-time withstand current	100 kA for 0.5 s
Residual short-circuit withstand current	85 kA / 0.5 s
[Ui] rated insulation voltage	1000 V
Overvoltage category	IV
[Uimp] rated impulse withstand voltage	12 kV
Mounting mode	Fixed (cables) Fixed (busbar)
Connections – terminals	Screw connection 0.5…2.5 mm²
Net weight	11 kg
Height	Outside: 233 mm Inside: 115 mm
Width	Outside: 388 mm Inside: 280 mm
Depth	72 mm
Environment
IP degree of protection	Body: IP30 Connectors: IP20
Environmental characteristic	Exposure to damp heat in service: category C2: 48 hours conforming to IEC 60068-2-56 Exposure to damp heat not in service (25…55 °C, RH 95 %) : 28 cycles conforming to IEC 60068-2-30 Salt mist: Kb/2 conforming to IEC 60068-2-52
Pollution degree	Level 3 conforming to IEC 60664-1
Ambient air temperature for operation	-35…80 °C
Ambient air temperature for storage	-55…100 °C
Standards	IEC 60947-2
Product certifications	CE
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	17.000 cm
Package 1 Width	30.000 cm
Package 1 Length	46.000 cm
Package 1 Weight	11.724 kg
Unit Type of Package 2	P12
Number of Units in Package 2	15
Package 2 Height	67.000 cm
Package 2 Width	80.000 cm
Package 2 Length	120.000 cm
Package 2 Weight	187.860 kg
Contractual warranty
Warranty (in months)	18
