56517 | RESID. CURRENT RELAY RH197 M 230V – Schneider Electric

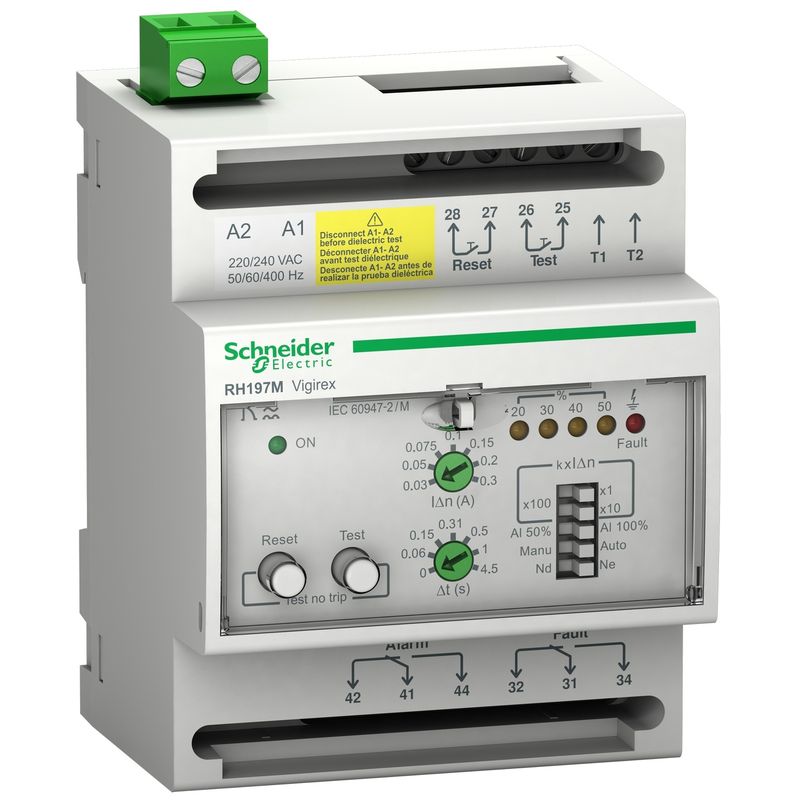

Name: 56517 - Residual current protection relay, Vigirex RH197M, 30 mA to 30 A | Schneider Electric
Brand: Schneider Electric
SKU: 56517
Price: 65868.00 INR
Availability: BackOrder

SKU: 56517

Original price was: ₹79,840.00.Current price is: ₹65,868.00. Excl. GST

Dispatch By : 7 Weeks

16 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range	VigiPacT
Device short name	RH197M
Product or component type	Residual current protection relay
Relay application	Protection relay
Mounting support	DIN rail
Earth-leakage protection class	Type A
Type of setting	Selector
Residual earth-leakage sensitity adjustment type	Adjustable 19 settings
Earth-leakage sensitivity	0.03…30 A
Earth-leakage time delay	Instantaneous for 0.03 A Adjustable 7 settings 0…4.5 s for 0.03…30 A
Alarm threshold	100 % 50 %
Current sensors compatibility	VigiPacT TOA earth leakage current sensor VigiPacT A earth leakage current sensor VigiPacT L earth leakage current sensor
[Ithe] conventional enclosed thermal current	8 A
Minimum load	10 mA at 12 V
[Us] rated supply voltage	220…240 V AC 50/60 Hz 70…110 %
Power consumption in VA	4 VA
Monitored distribution system	1000 V – AC at 50/60 Hz (maximum) 1000 V – AC at 400 Hz (maximum)
Earthing system	TT TN-S IT
[Uimp] rated impulse withstand voltage	8 kV
Reset	Manual reset Automatic reset
Complementary
Test function	Local Remote test
Monitoring	Electronics (watchdog) Power supply (continuous) Relay/sensor link (continuous)
Signal contacts composition	1 NO
Type of measurement	Earth fault current internal measurement, range: 80…100 %
Refresh time	0.5 s
Tamperproof of settings	Protected by sealable cover
Connections – terminals	Auxiliary power supply: terminal block cable(s) 0.2…2.5 mm² flexible 24 AWG…12 AWG Auxiliary power supply: terminal block cable(s) 0.2…2.5 mm² rigid 24 AWG…12 AWG Auxiliary power supply: terminal block cable(s) 0.25…2.5 mm² flexible 24 AWG…12 AWG Fault: terminal block cable(s) 0.2…2.5 mm² flexible 24 AWG…12 AWG Fault: terminal block cable(s) 0.2…2.5 mm² rigid 24 AWG…12 AWG Fault: terminal block cable(s) 0.25…2.5 mm² flexible 24 AWG…12 AWG Relay test and fault reset: terminal block cable(s) 0.2…2.5 mm² flexible 24 AWG…12 AWG Relay test and fault reset: terminal block cable(s) 0.2…2.5 mm² rigid 24 AWG…12 AWG Relay test and fault reset: terminal block cable(s) 0.25…2.5 mm² flexible 24 AWG…12 AWG Sensor: terminal block cable(s) 0.2…2.5 mm² flexible 24 AWG…12 AWG Sensor: terminal block cable(s) 0.2…2.5 mm² rigid 24 AWG…12 AWG Sensor: terminal block cable(s) 0.25…2.5 mm² flexible 24 AWG…12 AWG Voltage presence: terminal block cable(s) 0.2…2.5 mm² flexible 24 AWG…12 AWG Voltage presence: terminal block cable(s) 0.2…2.5 mm² rigid 24 AWG…12 AWG Voltage presence: terminal block cable(s) 0.25…2.5 mm² flexible 24 AWG…12 AWG
Wire stripping length	Auxiliary power supply: 7 mm Fault: 7 mm Relay test and fault reset: 7 mm Sensor: 7 mm Voltage presence: 7 mm
Tightening torque	Auxiliary power supply: 0.6 N.m Fault: 0.6 N.m Relay test and fault reset: 0.6 N.m Sensor: 0.6 N.m Voltage presence: 0.6 N.m
9 mm pitches	8
Standards	EN/IEC 60947-2 Annex M EN/IEC 60755
Width	71.2 mm
Height	98.7 mm
Depth	65.8 mm
Net weight	0.3 kg
IP degree of protection	IP40 on front face: conforming to EN/IEC 60529 IP30 on side parts: conforming to EN/IEC 60529 IP20 on connection terminals: conforming to EN/IEC 60529
IK degree of protection	IK07 conforming to EN 50102
Mechanical robustness	Fire resistance conforming to IEC 60695-2-1 IK protection 2 joules: IK07 conforming to EN 50102 Vibrations 13.2…100 Hz: 0.7 g Vibrations 2…13.2 Hz: +/- 1 mm
Environment
Overvoltage category	IV
Electrical shock protection class	Class II
Electromagnetic compatibility	Conducted and radiated emissions: , B, conforming to CISPR 11 Conducted radio-frequency immunity test: , 3, conforming to IEC 61000-4-6 Electrostatic discharge immunity test: , 4, conforming to IEC 61000-4-2 High-energy conducted susceptibility: , 4, conforming to IEC 61000-4-5 Low-energy conducted susceptibility: , 4, conforming to IEC 61000-4-4 Radiated susceptibility: , 3, conforming to IEC 61000-4-3
Relative humidity	95 % at 55 °C
Pollution degree	3 conforming to IEC 60664-1
Ambient air temperature for operation	-25…55 °C
Ambient air temperature for storage	-40…85 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	9.500 cm
Package 1 Width	8.500 cm
Package 1 Length	8.000 cm
Package 1 Weight	324.200 g
Unit Type of Package 2	S03
Number of Units in Package 2	24
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	8.181 kg
Logistical informations
Country of origin	IT
Contractual warranty
Warranty (in months)	18
