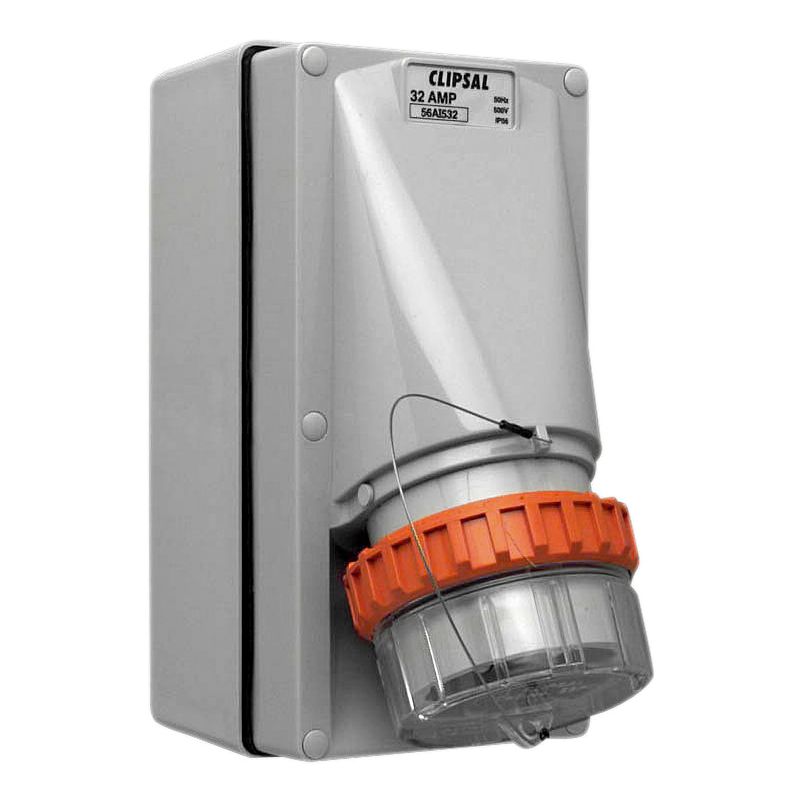

56AI532-GY | SOCKET APPL INLET IP56 5PIN 32 – Schneider Electric
Original price was: ₹41,801.00.₹21,736.52Current price is: ₹21,736.52. Excl. GST
Dispatch By : 5 Weeks
Dispatch By : 5 Weeks
17
People watching this product now!
Order protection
Buy with complete confidence.
We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included
Dedicated account manager
Technical support
Bulk & business pricing
3-day replacement
Specifications
| Main | |
|---|---|
| Range | Clipsal – 56 Series |
| Range of product | Series 56 |
| Product brand | Clipsal |
| Product or component type | Appliance inlet |
| Device application | Power supply |
| Complementary | |
| [In] rated current | 32 A |
| Poles description | 3P + N + E |
| [Ue] rated operational voltage | 500 V 50/60 Hz conforming to EN 60309-2 |
| Colour | Grey (RAL 7035) |
| Material | Plastic |
| Plug, socket category | Low voltage |
| Material | Polycarbonate: cover |
| Mounting mode | Surface mounted |
| Outlet standard deviation | Australian/New Zealand |
| Outlet standard | Industrial |
| Tightening torque | 0.8 N.m |
| Connections – terminals | Screw terminal 6…16 mm² rigid or stranded cable |
| Contacts material | Screws: brass |
| Plug, socket, control station shape | Angled |
| Duration | 7 h |
| Net weight | 0.98 kg |
| Height | 204 mm |
| Width | 101 mm |
| Depth | 165 mm |
| Targeted country | Australia |
| Environment | |
| Standards | AS/NZS 60320.1 |
| IP degree of protection | IP66 conforming to AS 60529 |
| Ambient air temperature for operation | -25…75 °C |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.6 cm |
| Package 1 Width | 10.2 cm |
| Package 1 Length | 20.1 cm |
| Package 1 Weight | 978.0 g |
| Contractual warranty | |
| Warranty (in months) | 18 |
