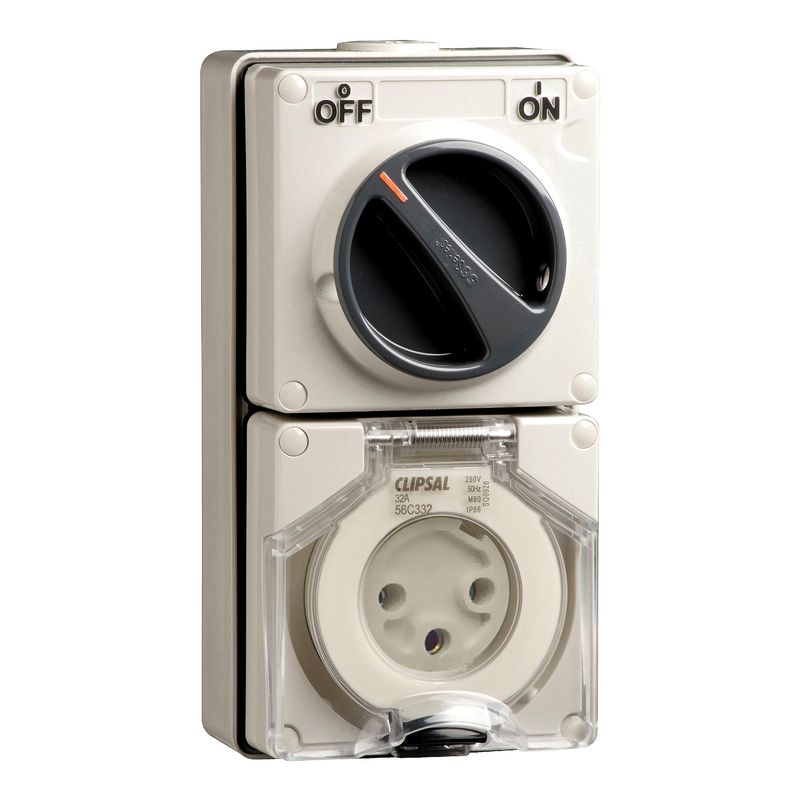

56C332-GY | SOCKET SWT SURF IP66 3PIN 32A – Schneider Electric
Original price was: ₹12,275.00.₹6,383.00Current price is: ₹6,383.00. Excl. GST
Dispatch By : 9 Weeks
Dispatch By : 9 Weeks
19
People watching this product now!
Order protection
Buy with complete confidence.
We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included
Dedicated account manager
Technical support
Bulk & business pricing
3-day replacement
Specifications
| Main | |
|---|---|
| Range of product | Series 56 |
| Range | Clipsal – 56 Series |
| Product brand | Clipsal |
| Product Type | Socket-outlet |
| Device application | Power supply |
| Colour | Grey (RAL 7035) |
| Complementary | |
| Number of switched poles | 3 |
| Plug, socket category | Low voltage |
| Outlet standard | Australian/New Zealand |
| Plug and socket configuration | Straight |
| Number of modules | 1 |
| Number of power socket outlets | 1 protective cover |
| Rated current | 32 A |
| Rated operational voltage | 250 V AC 50 Hz |
| Poles description | 1P + N + E |
| Protection type | Without protection |
| Device mounting | Surface |
| Material | Polycarbonate: cover |
| Contacts material | Pins: phosphor bronze |
| Connections – terminals | Screw terminals cable(s) 6…16 mm² |
| Electrical connection | Industrial connector |
| Depth | 108 mm |
| Width | 101 mm |
| Height | 204 mm |
| Targeted country | Australia |
| Environment | |
| Standards | AS/NZS 3123 AS/NZS 3133 |
| Ambient air temperature for operation | -25…75 °C |
| IP degree of protection | IP66 conforming to AS 60529 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.6 cm |
| Package 1 Width | 10.6 cm |
| Package 1 Length | 21 cm |
| Package 1 Weight | 1.006 kg |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 210 cm |
| Package 2 Width | 348 cm |
| Package 2 Length | 445 cm |
| Package 2 Weight | 12.504 kg |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 130 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 241.44 kg |
| Contractual warranty | |
| Warranty (in months) | 18 |
