56CSC532-EO | SOCK CORD EXN IP66 5PN 32A 500 - Schneider Electric - Image 1

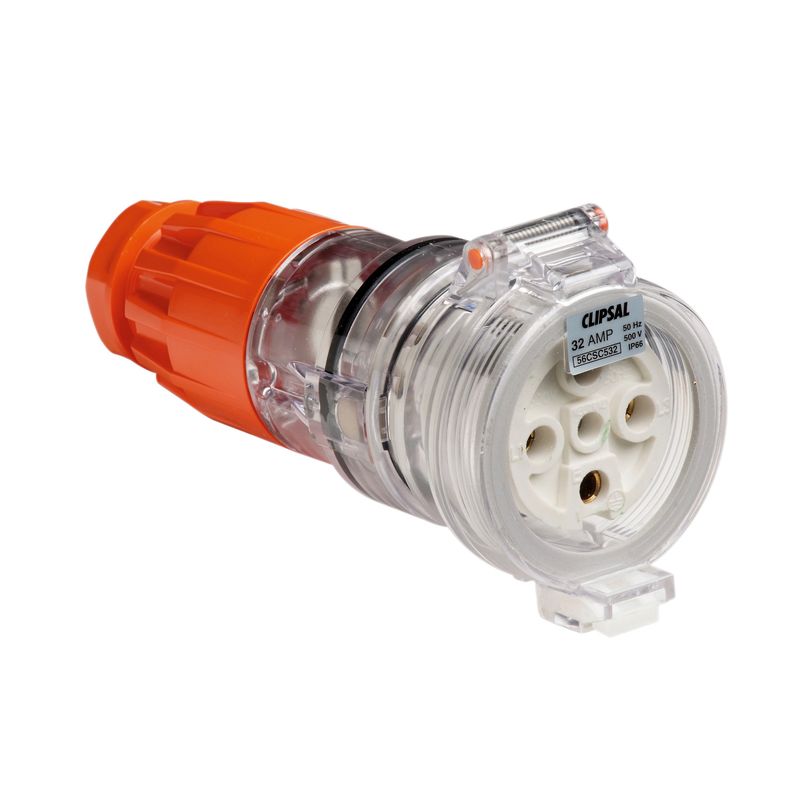

    56CSC532-EO | SOCK CORD EXN IP66 5PN 32A 500 – Schneider Electric

    SKU: 56CSC532-EO

    Original price was: $161.60.Current price is: $84.03. Excl. GST

    Dispatch By : 5 Weeks

    Dispatch By : 5 Weeks

    18 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Specifications

    Main
    Range of productSeries 56
    RangeClipsal – 56 Series
    Product brandClipsal
    Product TypeSocket
    Device applicationPower supply
    ColourOrange (RAL 2004)
    Complementary
    Plug, socket categoryLow voltage
    Plug and socket configurationStraight
    Mounting modeExternal mounting
    Rated current32 A
    Rated operational voltage500 V AC 50 Hz conforming to EN 60309-2
    Poles description3P + N + E
    Voltage colourBlack
    Duration7 h
    MaterialPolycarbonate: housing
    Contacts materialSleeves: brass
    Connections – terminalsScrew terminals 2.5…25 mm²
    Connections – terminalsScrew terminal
    Socket number1
    Socket-outlet typeS
    Outlet standardIndustrial
    Cable outer diameter9…29 mm
    cable entryCable gland
    Thread typeM40
    Net weight0.402 kg
    Depth180 mm
    Length184 mm
    Width90 mm
    Height90 mm
    Targeted countryAustralia
    Main colour tintFine gold
    Environment
    IP degree of protectionIP66 conforming to AS 60529
    Ambient air temperature for operation-25…75 °C
    StandardsAS/NZS 3120
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height8.8 cm
    Package 1 Width9.2 cm
    Package 1 Length20.2 cm
    Package 1 Weight450.0 g
    Contractual warranty
    Warranty (in months)18
