70-461-1 | SIMPLE SOCKET - Schneider Electric - Image 1

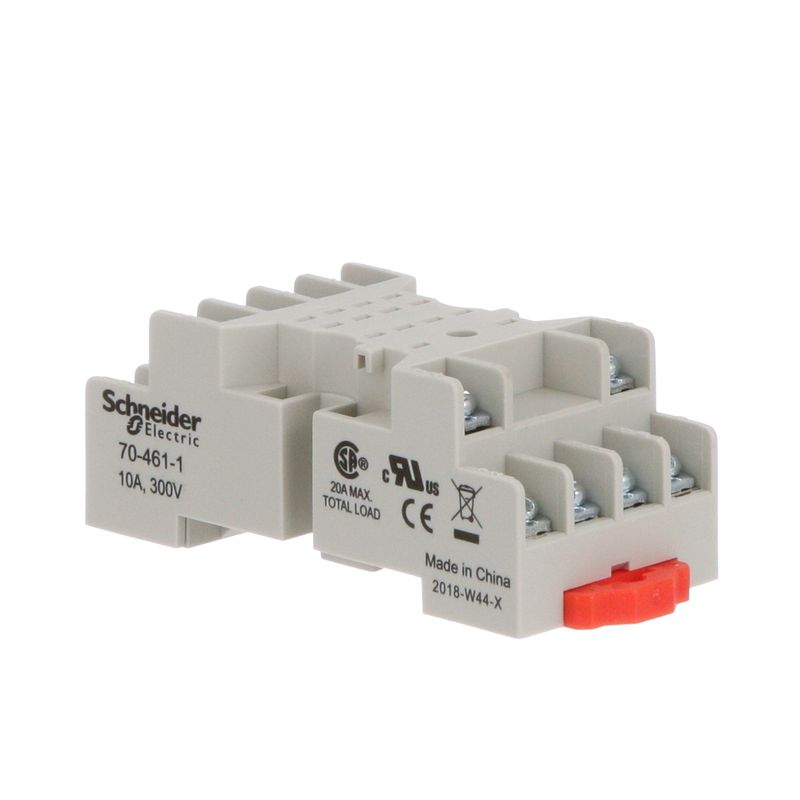

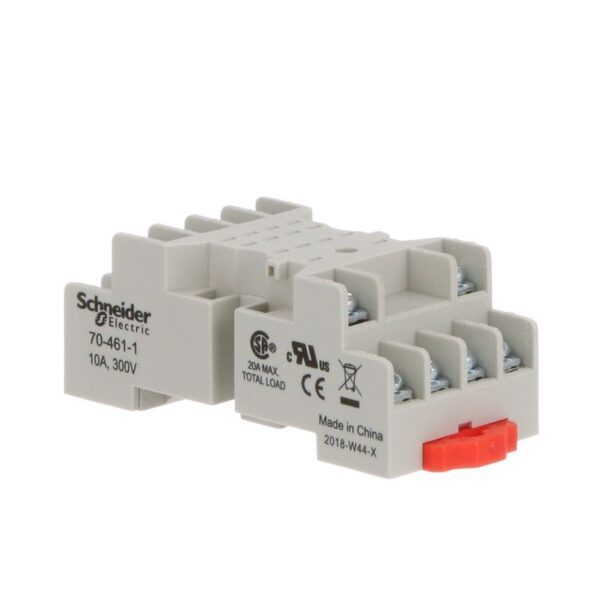

    70-461-1 | SIMPLE SOCKET – Schneider Electric

    SKU: 70-461-1

    Original price was: $13.14.Current price is: $6.05. Excl. GST

    Dispatch By : 18 Weeks

    Dispatch By : 18 Weeks

    18 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Specifications

    Main
    Product RangeHarmony Electromechanical Relays
    Product TypeSocket
    Product Compatibilityrelay 792XDX
    relay 782XDXH
    Number of Terminals14
    Switch Function4PDT
    Contact Composition4 C/O
    Complementary
    Rated Current10 A
    [Ue] rated operational voltage300 V
    Contact Terminal ArrangementMixed
    Connections TerminalsPanel screw clamp terminals, clamping connection capacity:2 x 1.5…2 x 2.5 mm², 16 AWG…14 AWG solid for output
    Panel screw clamp terminals, clamping connection capacity:2 x 1.5…2 x 2.5 mm², 16 AWG…14 AWG stranded for output
    Tightening TorqueChassis: 0.8 N.m, 16 AWG…14 AWG, copper
    Screw: < 0.8 N.m
    Fixing ModeBy screws, M3, for panel
    Shape of Screw HeadCombination roundhead
    Product Weight50 g
    Width30.7 mm
    Depth64 mm
    Environment
    Ambient Air Temperature for Storage-40…105 °C
    Ambient Air Temperature for Operation-40…70 °C
    Flame RetardanceUL94-V0
    Product CertificationsUL
    CSA
    CE
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height6.9 cm
    Package 1 Width3.07 cm
    Package 1 Length2.54 cm
    Package 1 Weight50 g
    Unit Type of Package 2BB1
    Number of Units in Package 210
    Package 2 Height5.4 cm
    Package 2 Width7.2 cm
    Package 2 Length15.9 cm
    Package 2 Weight525.12 g
    Unit Type of Package 3CAR
    Number of Units in Package 3500
    Package 3 Height400 cm
    Package 3 Width320 cm
    Package 3 Length410 cm
    Package 3 Weight27.009 kg
    Contractual warranty
    Warranty (in months)18
