70-782D14-1 | SOCKET 14 PINS SCREW CLAMP 10A 300V - Schneider Electric - Image 1

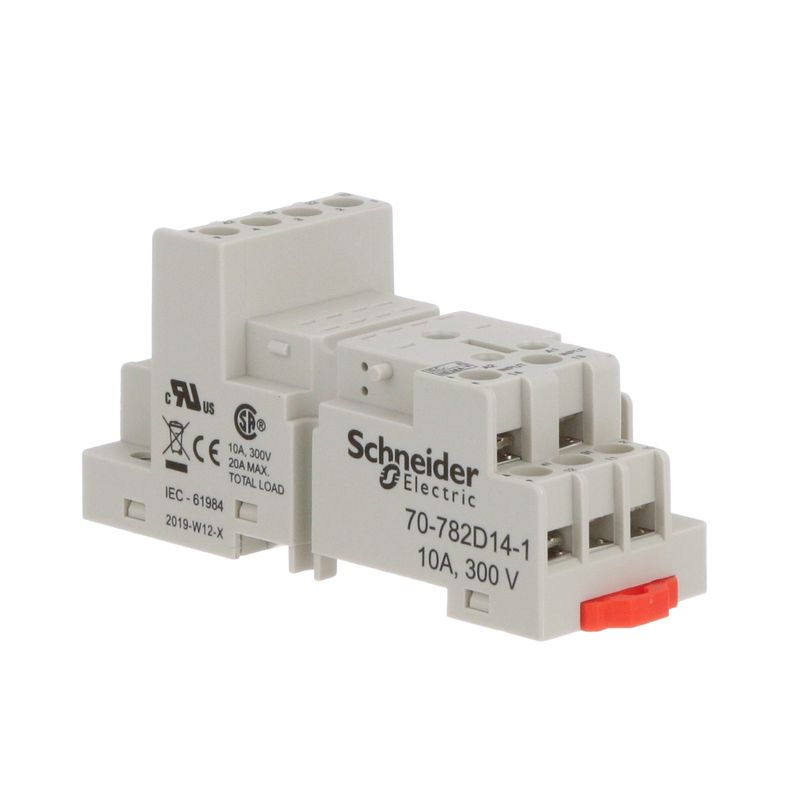

    70-782D14-1 | SOCKET 14 PINS SCREW CLAMP 10A 300V – Schneider Electric

    SKU: 70-782D14-1

    Original price was: $11.09.Current price is: $5.10. Excl. GST

    Dispatch By : 18 Weeks

    Dispatch By : 18 Weeks

    20 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Specifications

    Main
    Product RangeHarmony Electromechanical Relays
    Product TypeSocket
    Product Compatibilityrelay 792XDX
    relay 782XDXH
    relay 792XBX
    diode 70-BSMD
    signalling device 70-BSMLG
    suppressor module 70-BSMM
    Number of Terminals14
    Switch Function4PDT
    Contact Composition4 C/O
    Complementary
    Rated Current10 A
    [Ue] rated operational voltage300 V
    Contact Terminal ArrangementMixed
    Connections TerminalsPanel screw clamp terminals, clamping connection capacity:2 x 2.5…2 x 4 mm², 14 AWG…12 AWG solid for output
    Panel screw clamp terminals, clamping connection capacity:2 x 2.5…2 x 4 mm², 14 AWG…12 AWG stranded for output
    Tightening TorqueChassis: 0.8 N.m, 14 AWG…12 AWG, copper
    Screw: 0.8 N.m
    Fixing ModeBy screw, M3, for panel
    Clip-on, for 35 mm symmetrical DIN rail
    Shape of Screw HeadCombination roundhead
    Product Weight62 g
    Width30 mm
    Depth79.06 mm
    Environment
    Ambient Air Temperature for Storage-40…105 °C
    Ambient Air Temperature for Operation-40…70 °C
    IP Degree of ProtectionIP20
    Flame RetardanceUL94-V0
    Product CertificationsUL
    CSA
    CE
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height8.4 cm
    Package 1 Width3 cm
    Package 1 Length4 cm
    Package 1 Weight62 g
    Unit Type of Package 2BB1
    Number of Units in Package 210
    Package 2 Height7.1 cm
    Package 2 Width8.4 cm
    Package 2 Length15.2 cm
    Package 2 Weight621 g
    Unit Type of Package 3CAR
    Number of Units in Package 3200
    Package 3 Height17 cm
    Package 3 Width32 cm
    Package 3 Length44 cm
    Package 3 Weight12.44 kg
    Contractual warranty
    Warranty (in months)18
