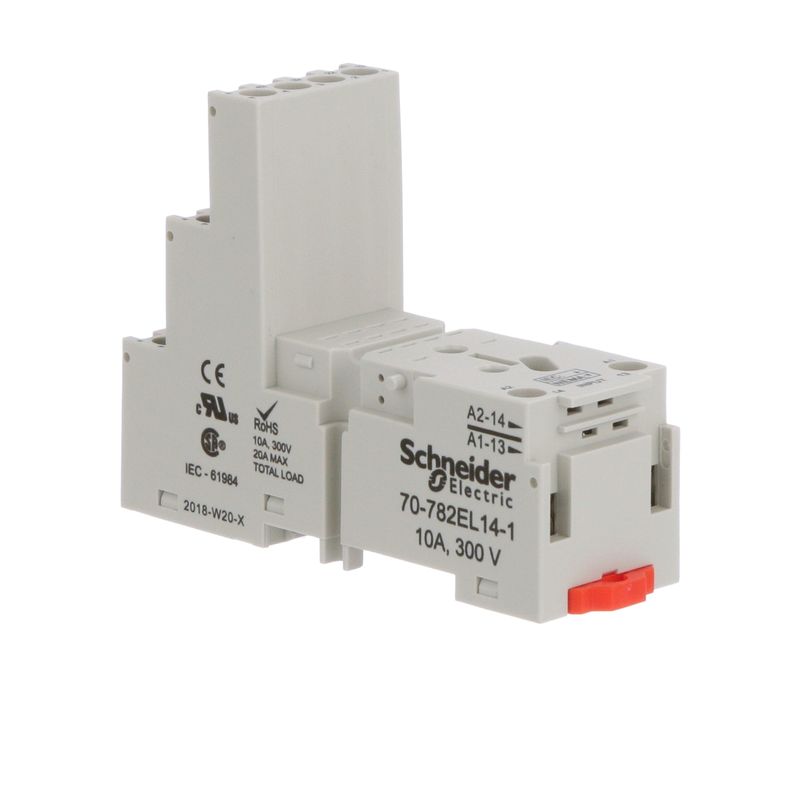

70-782EL14-1 | LOGIC STYLE SOCKET - Schneider Electric - Image 1

    70-782EL14-1 | LOGIC STYLE SOCKET – Schneider Electric

    SKU: 70-782EL14-1

    Original price was: ₹989.00.Current price is: ₹454.94. Excl. GST

    Dispatch By : 18 Weeks

    Dispatch By : 18 Weeks

    18 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Specifications

    Main
    Product RangeHarmony Electromechanical Relays
    Product TypeSocket
    Product Compatibilityrelay 792XDX
    relay 782XDXH
    relay 792XBX
    diode 70-BSMD
    signalling device 70-BSMLG
    suppressor module 70-BSMM
    jumper wire 16-782CBJ-1
    Number of Terminals14
    Switch Function4PDT
    Contact Composition4 C/O
    Complementary
    Rated Current10 A
    [Ue] rated operational voltage300 V
    Contact Terminal ArrangementSeparate
    Connections TerminalsPanel lift terminals, clamping connection capacity:2 x 1.5…1 x 2.5 mm², 16 AWG…14 AWG solid
    Panel lift terminals, clamping connection capacity:2 x 1.5…1 x 2.5 mm², 16 AWG…14 AWG stranded
    Tightening TorqueChassis: 0.8 N.m, 16 AWG…14 AWG, copper
    Screw: 0.8 N.m
    Fixing ModeBy screw, M3, for panel
    Clip-on, for 35 mm symmetrical DIN rail
    Shape of Screw HeadCombination roundhead
    Product Weight62 g
    Width25.4 mm
    Depth79 mm
    Environment
    Ambient Air Temperature for Storage-40…105 °C
    Ambient Air Temperature for Operation-40…70 °C
    IP Degree of ProtectionIP20
    Flame RetardanceUL94-V0
    Product CertificationsUL
    CSA
    CE
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height8.5 cm
    Package 1 Width2.54 cm
    Package 1 Length6.1 cm
    Package 1 Weight62 g
    Contractual warranty
    Warranty (in months)18
