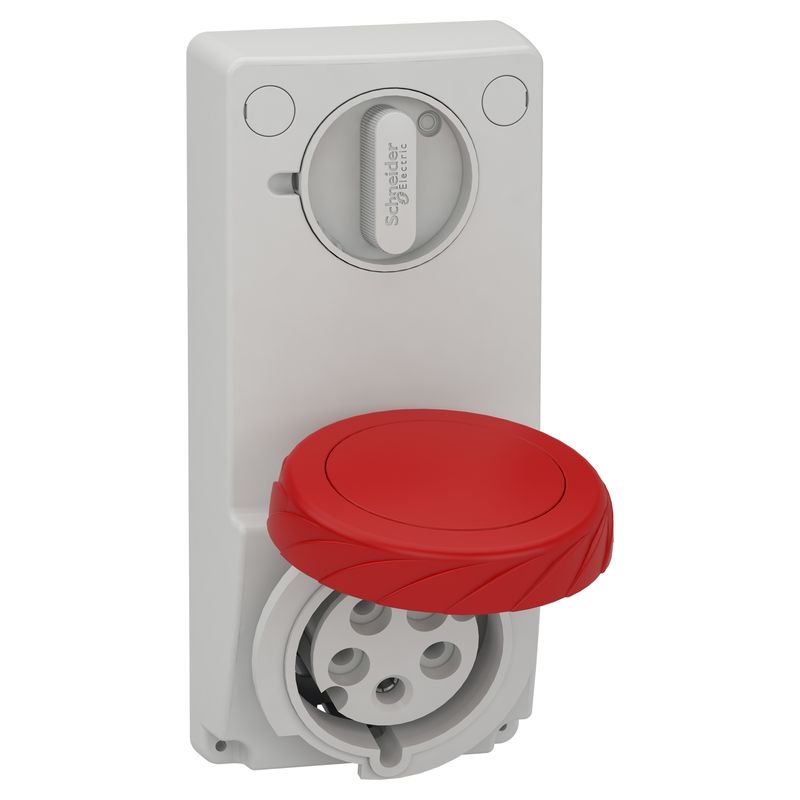

82097 | SOCKET UNIKA W/INTERLOCK 32A 3P-N-E 380- – Schneider Electric

Name: 82097 - Unika interlocked socket - 32 A - 3P + N + E - 380...415 V AC | Schneider Electric
Brand: Schneider Electric
SKU: 82097
Price: 7484.40 INR
Availability: BackOrder

SKU: 82097

Original price was: ₹13,860.00.Current price is: ₹7,484.40. Excl. GST

Dispatch By : 7 Weeks

11 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range	Mureva
Product or component type	Interlocked socket
Device short name	Mureva socket
Plug, socket category	Low voltage
Poles description	3P + N + E
Network type	AC
Outlet standard	Industrial
Complementary
Mounting mode	Panel-mounted
[In] rated current	32 A
[Ue] rated operational voltage	380…415 V
Network frequency	50/60 Hz
Ground lug clockwise position	6 h
Protection type	Without protection
Plug, socket material	Housing: self-extinguishing engineering polymer
Contacts material	Sleeves: nickel plated brass
Connections – terminals	Captive screws
Maximum cable cross section	10 mm²
Maximum cable outer diameter	25 mm
cable entry	Cable gland
Thread type	Pg 21
Net weight	0.796 kg
Base dimension	103 x 225 mm
Height	225 mm
Width	103 mm
Depth	130 mm
Colour	Grey (RAL 7035)
Voltage colour	Red
Environment
Standards	IEC 60309-2 IEC 60309-1
IP degree of protection	IP65 conforming to IEC 60529
IK degree of protection	IK09 conforming to EN 62262
Fire resistance	750 °C conforming to IEC 60695-2-11
Relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
Ambient air temperature for operation	35 °C ( 86400 s ) -25…40 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	11.500 cm
Package 1 Width	10.800 cm
Package 1 Length	23.800 cm
Package 1 Weight	794.000 g
Unit Type of Package 2	S03
Number of Units in Package 2	5
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	4.458 kg
Contractual warranty
Warranty (in months)	18
