82420 | PRISE MOBILE DROITE 32A 3P 24/48V IP44 1 – Schneider Electric

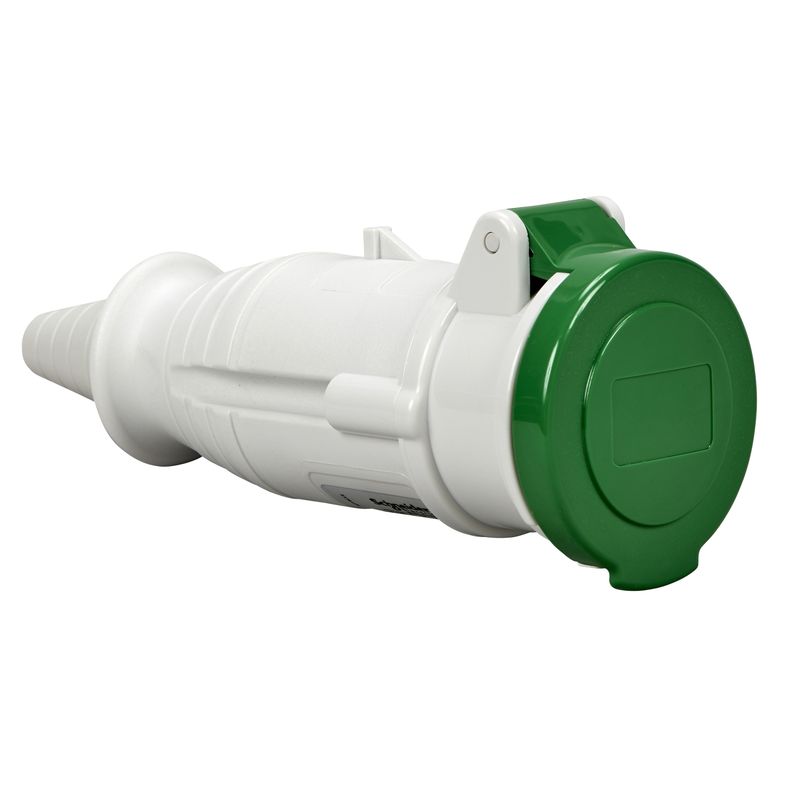

Name: 82420 - PratiKa wander socket - straight - 32 A - 3P - 20...25 V AC - IP44 | Schneider Electric
Brand: Schneider Electric
SKU: 82420
Price: 1912.14 INR
Availability: BackOrder

SKU: 82420

Original price was: ₹3,541.00.Current price is: ₹1,912.14. Excl. GST

Dispatch By : 10 Weeks

17 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range	Mureva
Product or component type	Wander socket
Device short name	Mureva socket
Plug, socket category	Extra-low voltage
Poles description	3P
Network type	AC
Outlet standard	Industrial
Complementary
Plug, socket, control station shape	Straight
[In] rated current	32 A
[Ue] rated operational voltage	40…50 V 20…25 V
Network frequency	100/200 Hz
Secondary keyway clockwise position	4 h
Plug, socket material	Housing: self-extinguishing engineering polymer
Contacts material	Pins: stainless steel Sleeves: nickel plated brass Springs: stainless steel
Connections – terminals	Captive screws
Cable cross section	4…10 mm²
Cable outer diameter	6…23 mm
cable entry	Cable gland
Thread type	Pg 21
Net weight	0.2 kg
Height	72 mm
Width	72 mm
Depth	172 mm
Colour	Grey (RAL 7035)
Voltage colour	Green
Environment
Standards	IEC 60309-1 IEC 60309-2
IP degree of protection	IP44 conforming to IEC 60529
IK degree of protection	IK08 conforming to EN 62262
Fire resistance	850 °C conforming to IEC 60695-2-1
Relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
Ambient air temperature for operation	35 °C ( 86400 s ) -25…40 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.200 cm
Package 1 Width	7.200 cm
Package 1 Length	17.200 cm
Package 1 Weight	190.000 g
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Height	11.800 cm
Package 2 Width	21.000 cm
Package 2 Length	27.500 cm
Package 2 Weight	2.020 kg
Unit Type of Package 3	S03
Number of Units in Package 3	30
Package 3 Height	30.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	6.547 kg
Contractual warranty
Warranty (in months)	18
