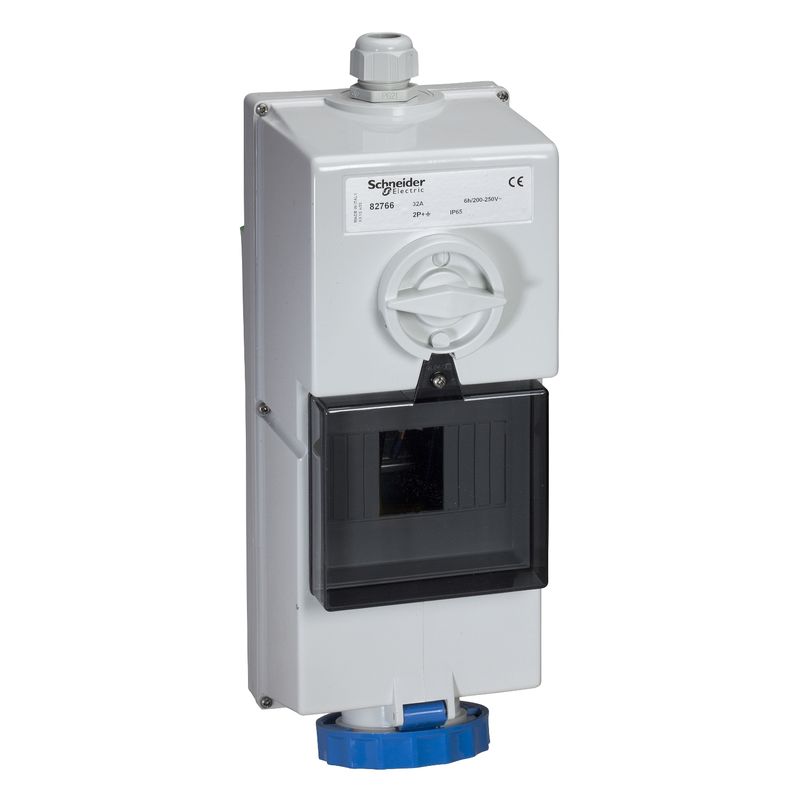

82766 | SOCKET W/INTERLOCK RAIL DIN 32A 2P-E 20 – Schneider Electric

Name: 82766 - Isoblock interlocked socket - 32 A - 2P + E - 200...250 V AC | Schneider Electric
Brand: Schneider Electric
SKU: 82766
Price: 11153.70 INR
Availability: BackOrder

SKU: 82766

Original price was: ₹20,655.00.Current price is: ₹11,153.70. Excl. GST

Dispatch By : 7 Weeks

20 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range	Mureva
Product or component type	Interlocked socket
Device short name	Isoblock socket
Plug, socket category	Low voltage
Industrial socket type	B32/63
Poles description	2P + E
Network type	AC
Outlet standard	Industrial
Complementary
Mounting mode	Wall-mounted
[In] rated current	32 A
[Ue] rated operational voltage	200…250 V
Network frequency	50/60 Hz
Ground lug clockwise position	6 h
Protection type	Without protection
Product compatibility	Modular device
Total number of 18 mm modules	6
Plug, socket material	Housing: self-extinguishing engineering polymer
Contacts material	Pins: stainless steel Springs: stainless steel
Connections – terminals	Captive screws
Maximum cable cross section	10 mm²
Maximum cable outer diameter	25 mm
cable entry	Cable gland
Thread type	Pg 21
Net weight	1.6 kg
Base dimension	144 x 371 mm
Height	371 mm
Width	144 mm
Depth	147 mm
Colour	Grey (RAL 7035)
Voltage colour	Blue
Environment
Standards	IEC 60309-2 IEC 60309-1
IP degree of protection	IP65 conforming to IEC 60529
IK degree of protection	IK10 conforming to EN 62262
Fire resistance	850 °C conforming to IEC 60695-2-11
Relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
Ambient air temperature for operation	35 °C ( 86400 s ) -25…40 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	15.500 cm
Package 1 Width	15.500 cm
Package 1 Length	41.500 cm
Package 1 Weight	1.656 kg
Unit Type of Package 2	P12
Number of Units in Package 2	66
Package 2 Height	112.000 cm
Package 2 Width	80.000 cm
Package 2 Length	120.000 cm
Package 2 Weight	129.296 kg
Contractual warranty
Warranty (in months)	18
