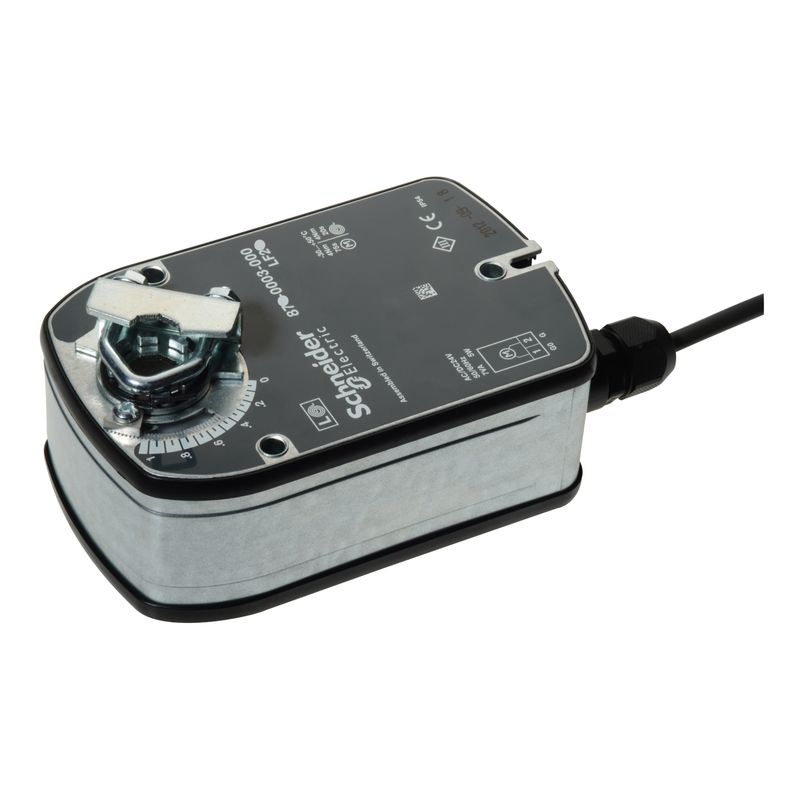

8750003000 | Actuator Damper LF230 – Schneider Electric
Original price was: R$3,244.99.R$1,882.09Current price is: R$1,882.09. Excl. GST
Dispatch By : 6 Weeks
Dispatch By : 6 Weeks
14
People watching this product now!
Order protection
Buy with complete confidence.
We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included
Dedicated account manager
Technical support
Bulk & business pricing
3-day replacement
Specifications
| Main | |
|---|---|
| Product or component type | Actuator |
| Actuator type | Electric |
| Actuator product series | LF |
| Actuator model | LF230 |
| Product destination | dampers |
| Actuator | Rotary |
| Control type | Manual override with 5/32 allen wrench |
| rated supply voltage | 230 V AC |
| Transformer rated power in VA | 7 VA |
| Power consumption in W | 5 W |
| Hold-in power consumption in W | 3 W |
| Hold-in power consumption in VA | 7 VA AC |
| Control signal | 2-position (on/off) |
| Power loss return | Spring return |
| Stroke auto calibration | False |
| Electrical insulation class | Class II |
| Tightening torque | 35 lb.in 4 N.m |
| Position indicator | Stroke indicator on bracket |
| Lead length | 1 m |
| Spring return timing | 20 s |
| Actuator rotation | 95 ° |
| Rotational range adjustment | 37…100° |
| Stroke running time | 75 s |
| Stroke running time noload extend | 40 s |
| Stroke running time noload retract | 40 s |
| IP degree of protection | IP43 |
| Ambient air temperature for operation | -30…50 °C |
| Relative humidity | 0…95 % RH, non-condensing |
| Ambient air temperature for storage | -40…80 °C |
| Targeted region | Europe Asia Pacific. Australia. |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 28.8 cm |
| Package 1 Width | 12.8 cm |
| Package 1 Length | 10.8 cm |
| Package 1 Weight | 1.68 kg |
| Logistical informations | |
| Country of origin | CH |
| Contractual warranty | |
| Warranty (in months) | 18 |
