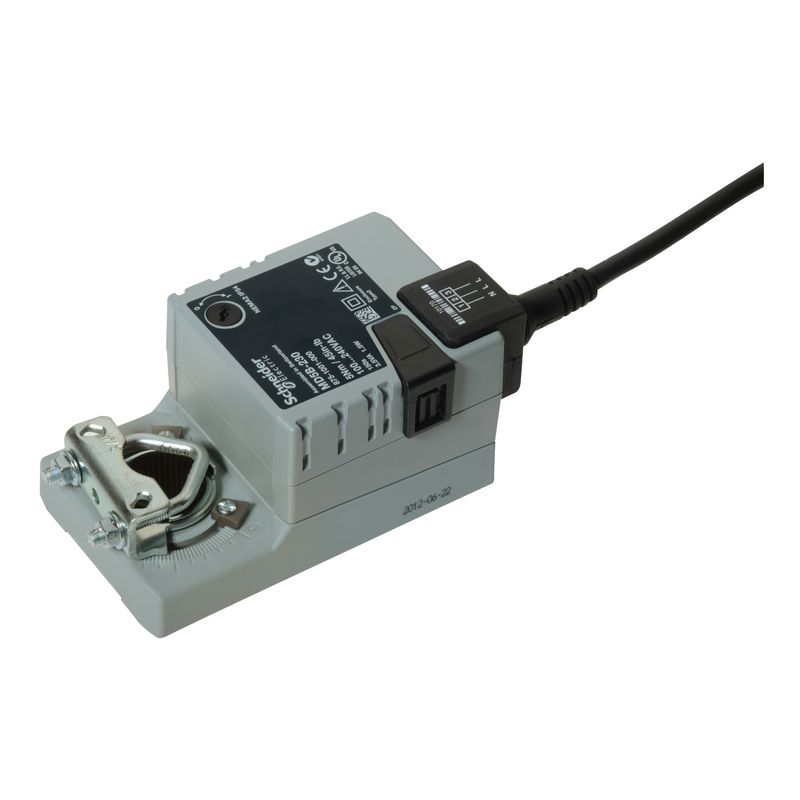

8751001000 | Actuator Damper MD5B-230 – Schneider Electric

Name: 8751001000 - Electric Actuator, 2 Position, Non-Spring Return, 230Vac | Schneider Electric
Brand: Schneider Electric
SKU: 8751001000
Price: 11090.76 INR
Availability: BackOrder

SKU: 8751001000

Original price was: ₹19,122.00.Current price is: ₹11,090.76. Excl. GST

Dispatch By : 4 Weeks

11 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Product or component type	Actuator
Actuator type	Electric
Actuator product series	MD
Actuator model	MD5B-230
Product destination	dampers
Actuator	Rotary
Control type	Automatic reset
rated supply voltage	230 V AC
Transformer rated power in VA	3.5 VA
Power consumption in W	1.5 W
Power consumption in VA	1.5 VA AC
Hold-in power consumption in W	0.4 W
Hold-in power consumption in VA	3.5 VA AC
Control signal	2-position (on/off)
Power loss return	Non-spring return
Stroke auto calibration	False
Electrical insulation class	Class II
Tightening torque	44 lb.in 5 N.m
Position indicator	Visual indicator with position ring
Lead length	1 m
Actuator rotation	95 °
Rotational range adjustment	95° maximum (limited by an adjustable end stop)
Stroke running time	150 s
IP degree of protection	IP43
Ambient air temperature for operation	-30…50 °C
Relative humidity	0…95 % RH, non-condensing
Ambient air temperature for storage	-40…80 °C
Targeted region	Europe Asia Pacific. Australia.
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	19 cm
Package 1 Width	11.8 cm
Package 1 Length	7.2 cm
Package 1 Weight	520 g
Contractual warranty
Warranty (in months)	18
