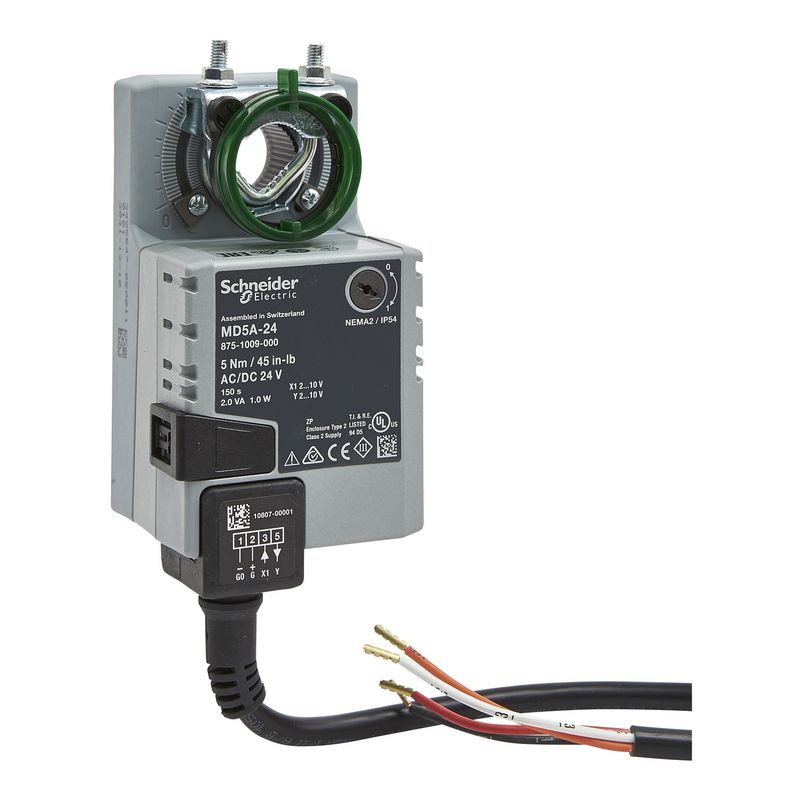

8751009000 | Actuator Damper MD5A-24 – Schneider Electric
Original price was: ₹28,122.00.₹16,310.76Current price is: ₹16,310.76. Excl. GST
Dispatch By : 4 Weeks
Dispatch By : 4 Weeks
15
People watching this product now!
Order protection
Buy with complete confidence.
We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included
Dedicated account manager
Technical support
Bulk & business pricing
3-day replacement
Specifications
| Main | |
|---|---|
| Product or component type | Actuator |
| Actuator type | Electric |
| Actuator product series | MD |
| Actuator model | MD5A-24 |
| Product destination | dampers |
| Actuator | Rotary |
| Control type | Automatic reset |
| rated supply voltage | 24 V AC/DC |
| Analogue input range | 2…10 V DC |
| Feedback signal | 2…10 V DC |
| Transformer rated power in VA | 2 VA |
| Power consumption in W | 1 W |
| Hold-in power consumption in W | 0.4 W |
| Hold-in power consumption in VA | 2 VA AC |
| Control signal | Proportional/modulating |
| Power loss return | Non-spring return |
| Stroke auto calibration | False |
| Electrical insulation class | Class III |
| Tightening torque | 44 lb.in 5 N.m |
| Position indicator | Visual indicator with position ring |
| Lead length | 1 m |
| Actuator rotation | 95 ° |
| Rotational range adjustment | 95° maximum (limited by an adjustable end stop) |
| Stroke running time | 150 s |
| IP degree of protection | IP54 |
| Ambient air temperature for operation | -30…50 °C |
| Relative humidity | 0…95 % RH, non-condensing |
| Ambient air temperature for storage | -40…80 °C |
| Targeted region | Europe Asia Pacific. Australia. |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 19 cm |
| Package 1 Width | 11.6 cm |
| Package 1 Length | 7.2 cm |
| Package 1 Weight | 520 g |
| Logistical informations | |
| Country of origin | CH |
| Contractual warranty | |
| Warranty (in months) | 18 |
