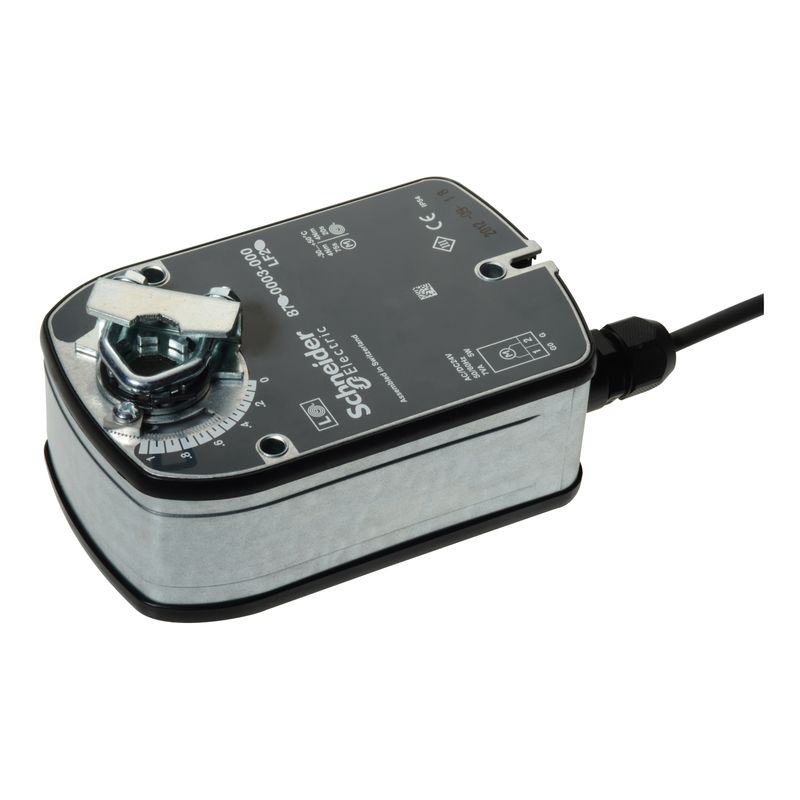

8770003000 | Actuator Damper LF24-SR – Schneider Electric

Name: 8770003000 - LF24 Damper Actuator, Modulating, 2-10Vdc, Spring Return | Schneider Electric
Brand: Schneider Electric
SKU: 8770003000
Price: 29513.30 INR
Availability: BackOrder

SKU: 8770003000

Original price was: ₹50,885.00.Current price is: ₹29,513.30. Excl. GST

Dispatch By : 4 Weeks

15 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Product or component type	Actuator
Actuator type	Electric
Actuator product series	LF
Actuator model	LF24-SR
Product destination	dampers
Actuator	Rotary
Control type	Automatic reset
rated supply voltage	24 V AC/DC
Analogue input range	2…10 V DC
Transformer rated power in VA	5 VA
Power consumption in W	2.5 W
Hold-in power consumption in W	1 W
Hold-in power consumption in VA	5 VA AC
Control signal	Proportional/modulating
Power loss return	Spring return
Stroke auto calibration	False
Electrical insulation class	Class III
Tightening torque	35 lb.in 4 N.m
Force N	5 N
Force lbf	1 lbf
Position indicator	Stroke indicator on bracket
Lead length	1 m
Spring return timing	20 s
Actuator rotation	95 °
Rotational range adjustment	37…100°
Stroke running time	15 s
Stroke running time noload extend	40 s
Stroke running time noload retract	40 s
IP degree of protection	IP54
Ambient air temperature for operation	-30…50 °C
Relative humidity	0…95 % RH, non-condensing
Ambient air temperature for storage	-40…80 °C
Targeted region	Europe Asia Pacific. Australia.
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	28.8 cm
Package 1 Width	13 cm
Package 1 Length	10.8 cm
Package 1 Weight	1.52 kg
Contractual warranty
Warranty (in months)	18
