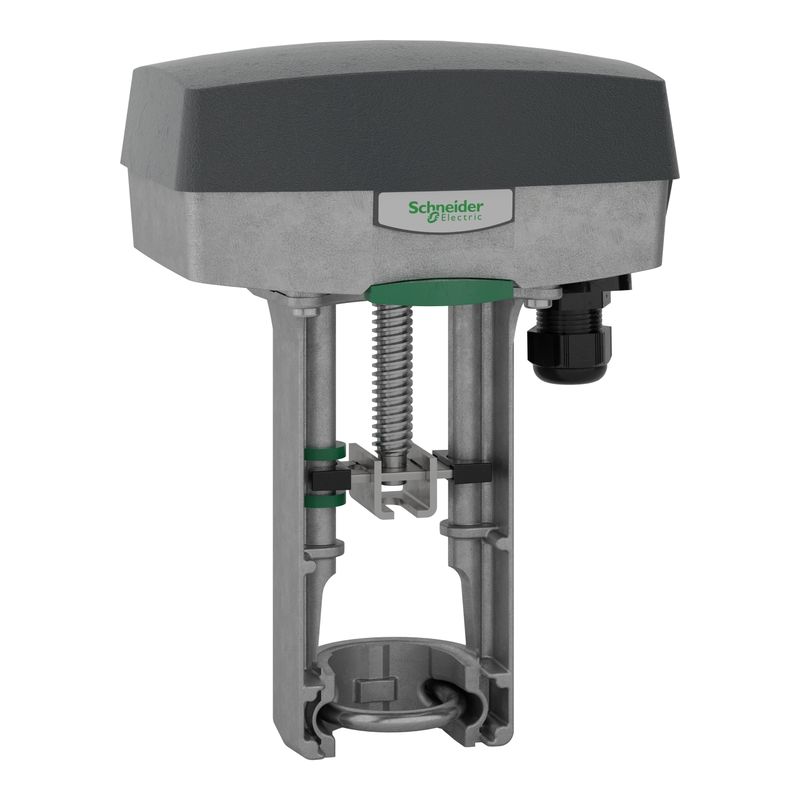

8800230030 | Actuator valve M400 – Schneider Electric
Original price was: $456.33.$264.67Current price is: $264.67. Excl. GST
Dispatch By : 4 Weeks
Dispatch By : 4 Weeks
13
People watching this product now!
Order protection
Buy with complete confidence.
We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included
Dedicated account manager
Technical support
Bulk & business pricing
3-day replacement
Specifications
| Main | |
|---|---|
| Actuator product range | SpaceLogic |
| Product or component type | Actuator |
| Actuator type | Electric |
| Actuator product series | M400 |
| Actuator model | M400 |
| Product destination | globe valve |
| Actuator | Linear |
| Motor type | Brushless DC motor |
| Control type | Automatic reset |
| Switch function | 2 SPDT (optional) |
| rated supply voltage | 24 V AC/DC |
| Analogue input range | 0…10 V DC |
| Feedback signal | 2…10 V DC |
| Transformer rated power in VA | 30 VA |
| Power consumption in VA | 7 VA AC |
| Hold-in power consumption in VA | 7 VA AC |
| Power loss return | Non-spring return |
| Control signal | Proportional/modulating Floating |
| Stroke length | 9…32 mm |
| Stroke auto calibration | True |
| Electrical insulation class | Class II |
| Force N | 400 N |
| Force lbf | 89 lbf |
| Position indicator | Stroke indicator on bracket |
| Conduit connection | Gland for 6-12 mm O/D cable |
| Leads and connections | Terminal block |
| Stroke running time | 60 s |
| IP degree of protection | IP54 |
| Material | Aluminium: housing ABS/PC: cover |
| Duty cycle | 20 % |
| Ambient air temperature for operation | -10…50 °C |
| Relative humidity | 0…90 % RH, non-condensing |
| Ambient air temperature for storage | -10…50 °C |
| Targeted region | Europe Asia Pacific. Australia. |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 14.000 cm |
| Package 1 Width | 26.000 cm |
| Package 1 Length | 18.000 cm |
| Package 1 Weight | 1.896 g |
| Contractual warranty | |
| Warranty (in months) | 18 |
