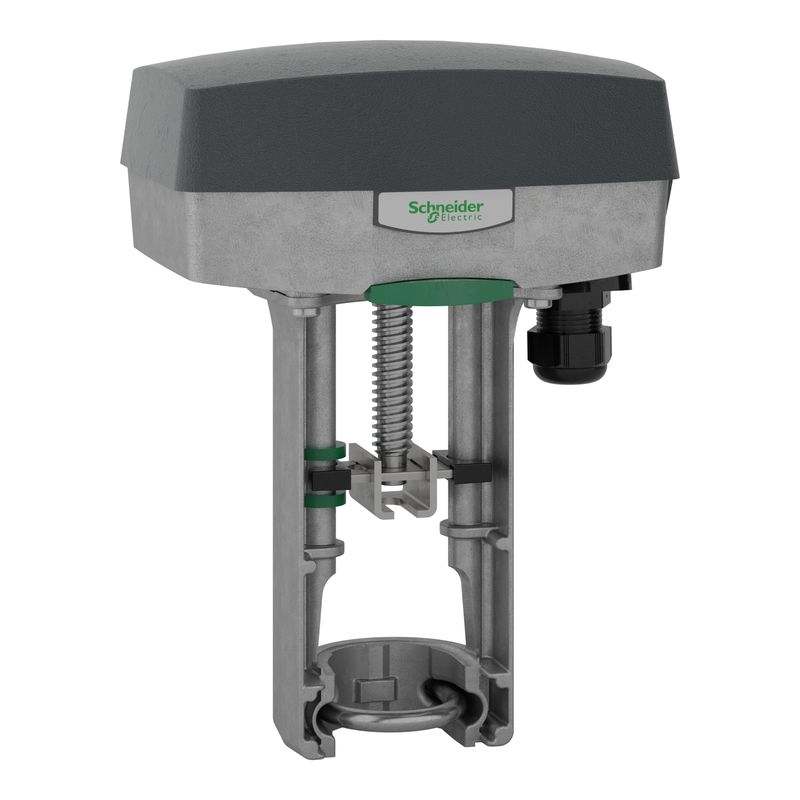

8800310030 | Actuator valve M800 - Schneider Electric - Image 1
Click to enlarge

    8800310030 | Actuator valve M800 – Schneider Electric

    SKU: 8800310030

    Original price was: $529.35.Current price is: $307.02. Excl. GST

    Dispatch By : 4 Weeks

    Dispatch By : 4 Weeks

    19 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Specifications

    Main
    Actuator product rangeSpaceLogic
    Product or component typeActuator
    Actuator typeElectric
    Actuator product seriesM800
    Actuator modelM800
    Product destinationglobe valve
    ActuatorLinear
    Motor typeBrushless DC motor
    Control typeAutomatic reset
    Switch function2 SPDT (optional)
    rated supply voltage24 V AC/DC
    Analogue input range0…10 V DC
    Feedback signal2…10 V DC
    Transformer rated power in VA50 VA
    Power consumption in VA15 VA AC
    Hold-in power consumption in VA10 VA AC
    Power loss returnNon-spring return
    Control signalProportional/modulating
    Floating
    Stroke length9…52 mm
    Stroke auto calibrationTrue
    Electrical insulation classClass II
    Force N800 N
    Force lbf179 lbf
    Position indicatorStroke indicator on bracket
    Conduit connectionGland for 6-12 mm O/D cable
    Leads and connectionsTerminal block
    Stroke running time15 s
    20 s
    IP degree of protectionIP54
    MaterialAluminium: housing
    ABS/PC: cover
    Duty cycle20 %
    Ambient air temperature for operation-10…50 °C
    Relative humidity0…90 % RH, non-condensing
    Ambient air temperature for storage-10…50 °C
    Targeted regionEurope
    Asia Pacific.
    Australia.
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height14.000 cm
    Package 1 Width26.000 cm
    Package 1 Length18.000 cm
    Package 1 Weight1.886 g
    Contractual warranty
    Warranty (in months)18
