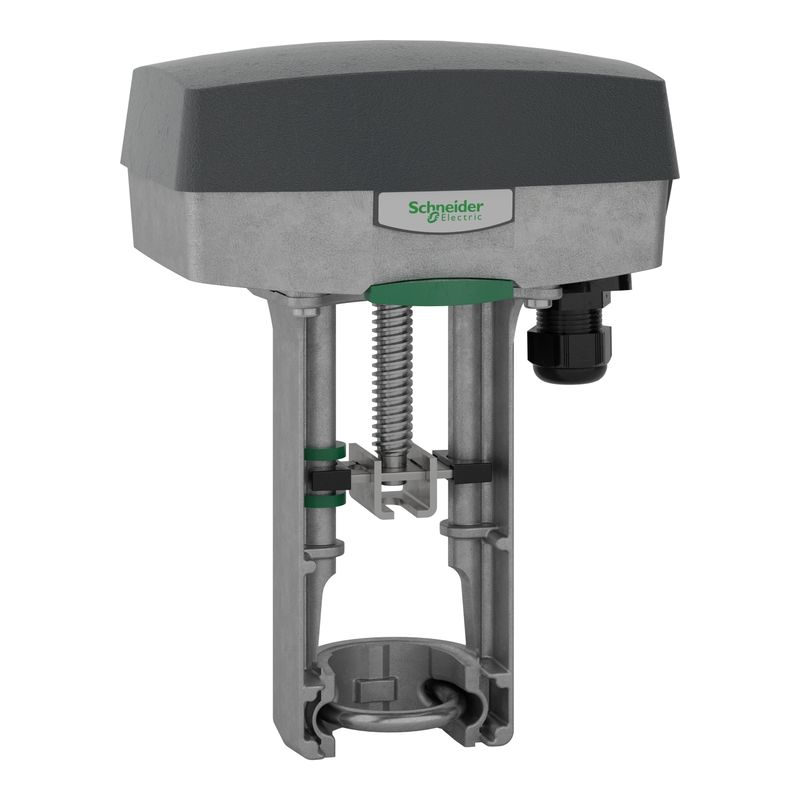

8800311030 | Actuator valve M800 S2 – Schneider Electric
Original price was: ₹42,537.00.₹24,671.46Current price is: ₹24,671.46. Excl. GST
Dispatch By : 7 Weeks
Dispatch By : 7 Weeks
17
People watching this product now!
Order protection
Buy with complete confidence.
We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included
Dedicated account manager
Technical support
Bulk & business pricing
3-day replacement
Specifications
| Main | |
|---|---|
| Actuator product range | SpaceLogic |
| Product or component type | Actuator |
| Actuator type | Electric |
| Actuator product series | M800 |
| Product destination | globe valve |
| Actuator | Linear |
| Motor type | Brushless DC motor |
| Control type | Automatic reset |
| Switch function | 2 SPDT |
| rated supply voltage | 24 V AC/DC |
| Analogue input range | 0…10 V DC |
| Feedback signal | 2…10 V DC |
| Transformer rated power in VA | 50 VA |
| Power consumption in VA | 10 VA AC |
| Power loss return | Non-spring return |
| Control signal | Floating Proportional/modulating |
| Stroke length | 9…52 mm |
| Stroke auto calibration | True |
| Electrical insulation class | Class II |
| Force N | 800 N |
| Force lbf | 180 lbf |
| Position indicator | Stroke indicator on bracket |
| Conduit connection | 3 x M20 Gland for 6-9 mm O/D cable |
| Leads and connections | Terminal block |
| Stroke running time | 15 s |
| IP degree of protection | IP43 |
| Duty cycle | 20 % |
| Ambient air temperature for operation | -10…50 °C |
| Relative humidity | 0…90 % |
| Ambient air temperature for storage | -10…50 °C |
| Targeted region | Europe Asia Pacific. Australia. |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 25.8 cm |
| Package 1 Width | 18 cm |
| Package 1 Length | 13.8 cm |
| Package 1 Weight | 1.92 kg |
| Contractual warranty | |
| Warranty (in months) | 18 |
