9080LBA364108 | PWR DISTR BLK 600V 335A – Schneider Electric

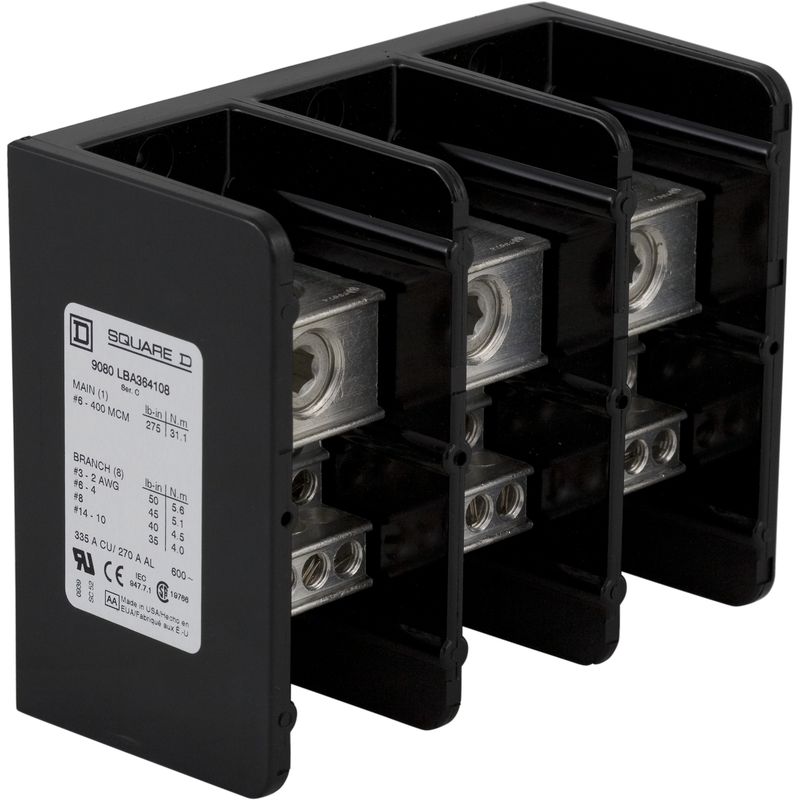

Name: 9080LBA364108 - Power distribution block, Linergy, 3 pole, 1 line, 8 load | Schneider Electric
Brand: Schneider Electric
SKU: 9080LBA364108
Price: 113.70 USD
Availability: BackOrder

SKU: 9080LBA364108

Original price was: $132.21.Current price is: $113.70. Excl. GST

Dispatch By : 27 Weeks

13 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range	9080LB
Product	Power Distribution Block
Current Rating	335 A copper 270 A aluminium
Short Circuit Current Rating	65 kA
Complementary
Voltage Rating	600 V AC/DC
Mounting Type	Surface mount
Number of poles	3
Terminals per Pole	1 line 8 load
Wire Size	Line 1, 4 AWG…600 kcmil, copper or aluminium Load 8, 14 AWG…2 AWG, copper or aluminium
Electrical Connection	Tin plated aluminium lugs
SCCR	100 kA UL 508 A
Ambient Air Temperature for Operation	-40…302 °F (-40…150 °C)
Block Material	Phenolic: block
Terminal Tightening Torque	Load lug 45 lbf.in (5.08 N.m) 6 AWG…4 AWG copper or aluminium Load lug 40 lbf.in (4.5 N.m) 8 AWG copper or aluminium Load lug 50 lbf.in (5.6 N.m) 2 AWG copper or aluminium Line lug 275 lbf.in (31.07 N.m) 6 AWG…400 kcmil copper or aluminium Load lug 35 lbf.in (4.0 N.m) 14 AWG…10 AWG copper or aluminium
Wire stripping length	Line: 1.06 in (26.92 mm) Load: 0.56 in (14.22 mm) for top connection Load: 1 in (25.4 mm) for bottom connection
Height	4.75 in (120.65 mm)
Width	6.03 in (153.16 mm)
Depth	2.91 in (73.91 mm)
End Barrier	9080LB43
Environment
Certifications	CE UL recognized E60616 CCN XCFR2 CSA file 70361 class 6228 01
Ordering and shipping details
Category	US1CTR121254
Discount Schedule	CTR1
GTIN	785901097501
Returnability	Yes
Country of origin	US
Packing Units
Unit Type of Package 1	PCE
Nbr. of units in pkg.	1
Package 1 Height	3.50 in (8.89 cm)
Package 1 Width	5.200 in (13.208 cm)
Package 1 Length	6.300 in (16.002 cm)
Package weight(Lbs)	2.291 lb(US) (1.039 kg)
Contractual warranty
Warranty (in months)	18
