9080LBA365208 | PWR DISTR BLK 600V 760A – Schneider Electric

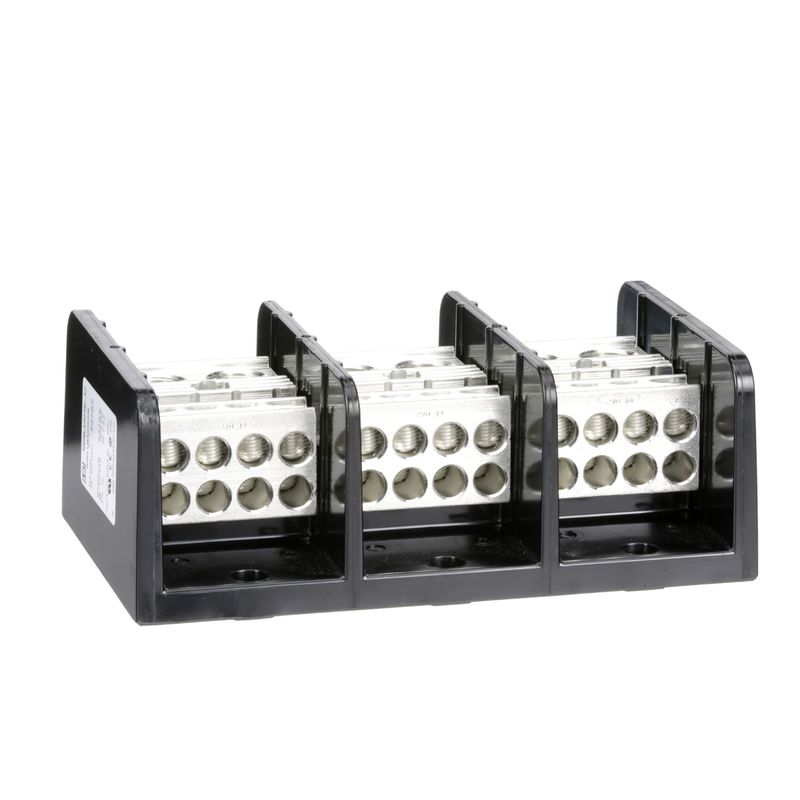

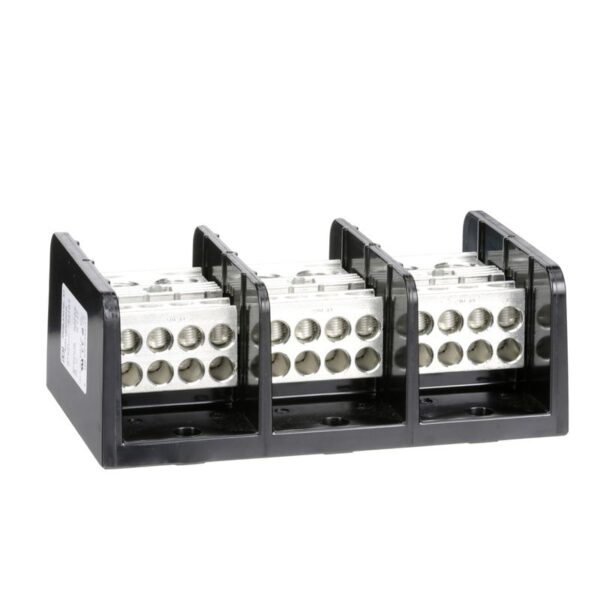

Name: 9080LBA365208 - Power distribution block, Linergy, 3 pole, 2 line, 8 load | Schneider Electric
Brand: Schneider Electric
SKU: 9080LBA365208
Price: 245.65 USD
Availability: BackOrder

SKU: 9080LBA365208

Original price was: $285.64.Current price is: $245.65. Excl. GST

Dispatch By : 27 Weeks

16 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range	9080LB
Product	Power Distribution Block
Current Rating	760 A copper 620 A aluminium
Complementary
Voltage Rating	600 V AC/DC
Mounting Type	Surface mount
Number of poles	3
Terminals per Pole	2 line 8 load
Wire Size	Line 2, 4 AWG…500 kcmil, copper or aluminium Load 8, 14 AWG…2/0 AWG, copper or aluminium
Electrical Connection	Tin plated aluminium lugs
SCCR	100 kA UL 508 A
Ambient Air Temperature for Operation	-40…302 °F (-40…150 °C)
Block Material	Phenolic: block
Terminal Tightening Torque	Load lug 40 lbf.in (4.5 N.m) 8 AWG copper or aluminium Load lug 120 lbf.in (13.6 N.m) 6 AWG…2/0 AWG copper or aluminium Load lug 35 lbf.in (4.0 N.m) 14 AWG…10 AWG copper or aluminium Line lug 375 lbf.in (42.4 N.m) 4 AWG…500 kcmil copper or aluminium
Wire stripping length	Load: 0.75 in (19.05 mm) for top connection Line: 1.13 in (28.70 mm) Load: 1.38 in (35.05 mm) for bottom connection
Height	5.5 in (139.7 mm)
Width	8.54 in (216.92 mm)
Depth	3.13 in (79.50 mm)
End Barrier	9080LB53
Net Weight	3.66 lb(US) (1.66 kg)
Environment
Certifications	UL recognized E60616 CCN XCFR2 CSA file 70361 class 6228 01 CE
Ordering and shipping details
Category	US1CTR121254
Discount Schedule	CTR1
GTIN	785901097563
Returnability	Yes
Country of origin	US
Packing Units
Unit Type of Package 1	PCE
Nbr. of units in pkg.	1
Package 1 Height	3.50 in (8.89 cm)
Package 1 Width	6.00 in (15.24 cm)
Package 1 Length	8.700 in (22.098 cm)
Package weight(Lbs)	3.66 lb(US) (1.66 kg)
Unit Type of Package 2	CAR
Number of Units in Package 2	6
Package 2 Height	12.700 in (32.258 cm)
Package 2 Width	9.600 in (24.384 cm)
Package 2 Length	13.400 in (34.036 cm)
Package 2 Weight	22.571 lb(US) (10.238 kg)
Contractual warranty
Warranty (in months)	18
