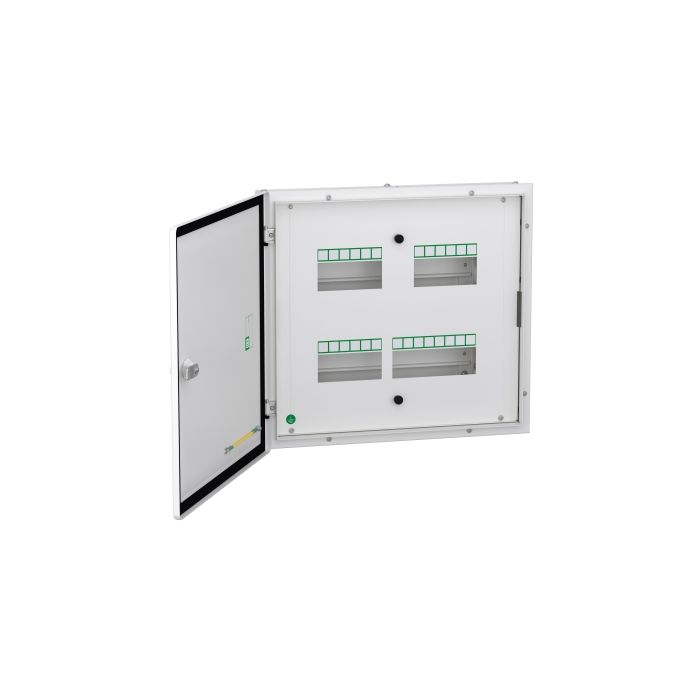

A9HTPI06 | Acti9 TPN PPI DB 6way IP43 – Schneider Electric

Name: A9HTPI06 | Acti9 TPN PPI DB 6way IP43 - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: A9HTPI06
Price: 4847.74 INR
Availability: OutOfStock

SKU: A9HTPI06

Original price was: ₹13,102.00.Current price is: ₹4,847.74. Excl. GST

Out of stock

19 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

A9S4P040 Acti 9 Isolator xSW 4P 40A 1.25kA 415V AC Schneider Electric pb110827 1500x1500

-65%

A9S4P063 | Acti 9 Isolator xSW 4P 63A 2.5kA 415V AC – Schneider Electric

Isolator

Schneider Electric

Excl. GST

Add to basket

SKU: A9S4P063

A9S2P040 Acti 9 Isolator xSW 2P 40A 1.25kA 240V AC Schneider Electric pb110824 1500x1500

-65%

A9S2P063 | Acti 9 Isolator xSW 2P 63A 2.5kA 240V AC – Schneider Electric

Isolator

Schneider Electric

Excl. GST

Add to basket

SKU: A9S2P063

A9N16324 Acti 9 xID residual circuit breaker 40 A 4P 30mA class SI instantaneous Schneider Electric pb110817 1500x1500

-70%

A9N16258 | Acti 9 xID residual circuit breaker – 63 A – 4P – 30mA class AC instantaneous – Schneider Electric

RCCB

Schneider Electric

Excl. GST

Add to basket

SKU: A9N16258

-63%

A9HRL802 | Acti9 key lock – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: A9HRL802

A9N16202 Acti 9 xID residual circuit breaker 25 A 2P 300mA class AC instantaneous Schneider Electric pb110816 1500x1500

-70%

A9N16204 | Acti 9 xID residual circuit breaker – 40 A – 2P – 30mA class AC instantaneous – Schneider Electric

RCCB

Schneider Electric

Excl. GST

Add to basket

SKU: A9N16204

The Schneider Electric A9HTPI06 is a distribution board from the Acti9 range, engineered for safe and organised power distribution in demanding Indian and international installations. Key ratings include 4 Poles, IP43. Buy the A9HTPI06 | Acti9 TPN PPI DB 6way IP43 online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	A9HTPI06
Category	Distribution Board
Main
Range	Acti9
Product name	TPN PPI
Product or component type	Consumer unit
Device application	Distribution
Colour	White (RAL 9003)
Provided equipment	Removable gland plates Removable centre plates Removable frame Grounding bar Neutral bar Busbar Wire set
Complementary
Enclosure mounting	Flush Surface
Protection device type	Main incomer: isolator – 4P Main incomer: miniature circuit breaker (MCB) – 4P Outgoer: miniature circuit breaker (MCB) – 1P Main incomer: residual current circuit breaker (RCCB) – 4P Main incomer: residual current circuit breaker with overcurrent protection (RCBO) – 4P
Total number of 18 mm modules	26
Number of ways	6 ways
Enclosure/cubicle description	Double door enclosure
Enclosure material	Galvanized steel box Galvanized steel chassis Galvanized steel cable gland plate Galvanized steel DIN rail CRCA door CRCA central plate CRCA frame
Door opening side	Reversible
Height	External: 422 mm
Width	External: 460 mm
Depth	External : 101.4 mm
Environment
IP degree of protection	IP43
IK degree of protection	IK09
Standards	IS 8623-1 IS 8623-3 IEC 61439-3
Product certifications	NABL
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	11.5 cm
Package 1 Width	43.2 cm
Package 1 Length	43.0 cm
Package 1 Weight	9.48 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

IP43 rated enclosure — dust-protected and splash-proof from all directions; suitable for utility rooms and meter cupboards.
35mm DIN rail and neutral busbar pre-fitted — ready to accept MCBs, RCCBs, RCBOs, and surge protection devices directly from the box with no additional mounting hardware.
Knock-out cable entry points on top, bottom, and sides — accommodate PVC conduit, steel conduit, trunking, or direct cable entry without drilling the enclosure body.
Flame-retardant thermoplastic construction (UL 94 V-0) — self-extinguishes within 10 seconds; does not propagate flame in the event of internal fault or external fire exposure.
Manufactured to IEC 61439-3 / IS 8623 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

A9HRL802A9N16204A9N16258A9S2P063A9S4P063

❓ Frequently Asked Questions

Q: What environments is the IP43 rating on the A9HTPI06 suitable for?

A: IP43 means the enclosure is solid particle protection (first digit: 4) and protected against water spray up to 60° from vertical (second digit: 3). This makes the A9HTPI06 suitable for dry indoor environments with occasional dust. Always verify IP integrity after installation — damaged seals or unused cable entries reduce actual protection.
