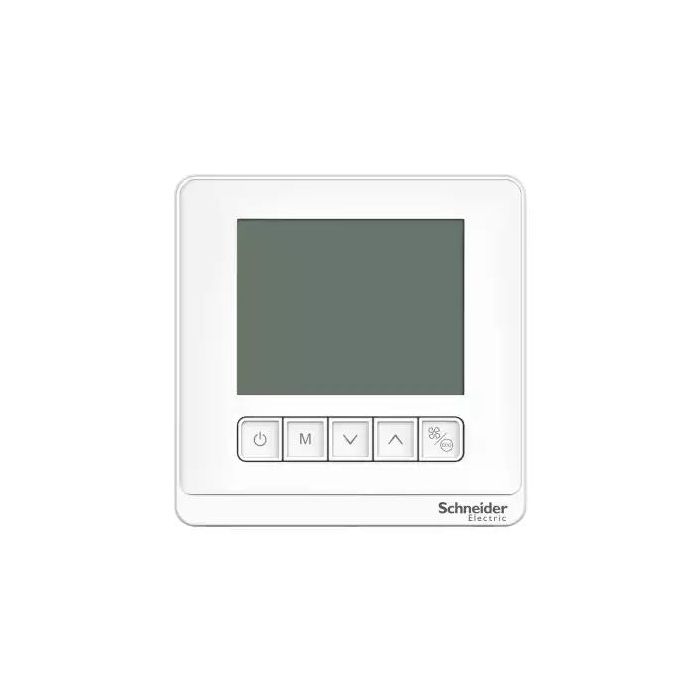

The Schneider Electric TC903-3A2P-24 is a fcu / thermostat controller from the SpaceLogic range, engineered for industrial, commercial, and infrastructure applications in demanding Indian and international installations. Key ratings include 24V AC, 2 Poles, IP20. Buy the TC903-3A2P-24 | Tstat,Fcu-P,Lcd,2P,24V,Wt online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	TC903-3A2P-24
Category	FCU / Thermostat Controller
Main
Range	SpaceLogic
Product name	SpaceLogic TC900
Device short name	TC903
Product or component type	Thermostat
Sensor type	100 kOhm NTC thermistor
Complementary
Device application	Fan
Product specific application	2-pipe system
[Us] rated supply voltage	24 V AC 50/60 Hz
Network frequency	50 Hz 60 Hz
Max power consumption in W	1 W
Communication port protocol	–
Function available	Setpoint adjustment Fan control Mode selection Economiser Disable functions Alarm Low temperature protection
Colour	White
Housing colour	White
Control type	mechanical, for thermostat pulse width modulation, for actuator 3 speed control relay, for fan
Display type	Backlit LCD screen
Information displayed	Ambient room temperature 0 to 50 °C Time Day Temperature alarm Communication status ok Current program
Measurement accuracy	Temperature: +/- 1 °C,
Output voltage	240 V AC 5 A for relay
Connections – terminals	Screw terminal (back) – 2 cable(s) 1.5 mm² Screw terminal (back) – 1 cable(s) 2.5 mm²
Width	86 mm
Depth	40 mm
Height	86 mm
Market segment	Small buildings Hotel Healthcare Residential
Environment
Temperature setting range	5…35 °C
Relative humidity	5…95 %
Ambient air temperature for operation	0…50 °C
Standards	EN/IEC 60730-1 EN/IEC 60730-2-9
Product certifications	CE
IP degree of protection	IP20
Pollution degree	2
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	12.6 cm
Package 1 Width	10.2 cm
Package 1 Length	5.6 cm
Package 1 Weight	200 g
Unit Type of Package 2	S03
Number of Units in Package 2	36
Package 2 Height	30 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	9.42 kg
Unit Type of Package 3	P12
Number of Units in Package 3	864
Package 3 Height	105.0 cm
Package 3 Width	80.0 cm
Package 3 Length	120.0 cm
Package 3 Weight	241.08 kg
Contractual warranty
Warranty (in months)	18
