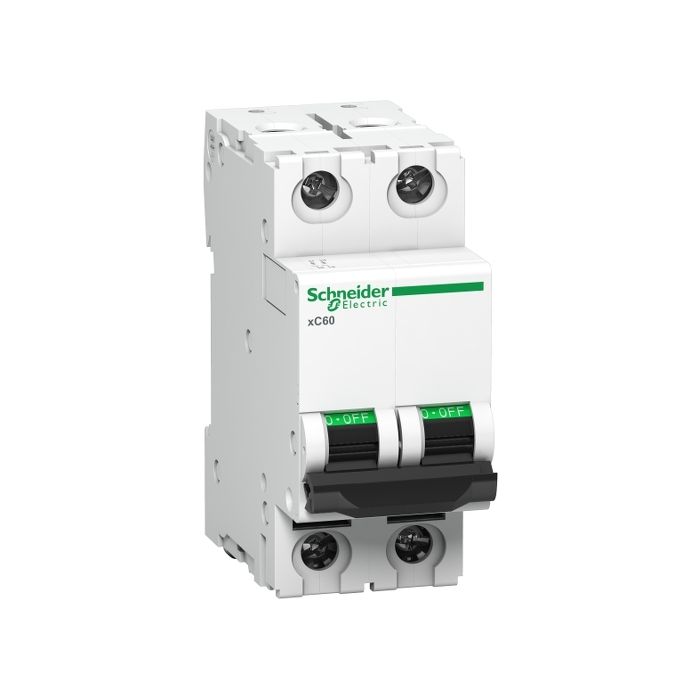

A9N2P10CGN | Acti9 xC60 2P C 10A MCB IS/IEC 60898-1 – Schneider Electric

SKU: A9N2P10CGN

Original price was: ₹1,857.00.Current price is: ₹519.96. Excl. GST

In stock

In stock

My Electric Support Online · Mon–Sat 9am–6pm IST
Product enquiry
Order on WhatsApp SKU: A9N2P10CGN

Same-day dispatch · GST invoice available

19 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

A9N26581 VIGI XC60- earth leakage add-on block 2P 25A AC 30MA Schneider Electric pb110819 1500x1500
-60%

A9N26582 | VIGI XC60- earth leakage add-on block 2P 25A AC 100MA – Schneider Electric

Schneider Electric
Original price was: ₹14,169.00.Current price is: ₹5,667.60. Excl. GST
Add to basket
SKU: A9N26582
A9N26960 Voltage release MN 220-240Vac dc Schneider Electric 61011 a9n26960 1500x1500
-40%

A9N26960 | Voltage release MN 220-240Vac dc – Schneider Electric

Schneider Electric
Original price was: ₹7,867.00.Current price is: ₹4,720.20. Excl. GST
Add to basket
SKU: A9N26960
A9N26611 VIGI XC60- earth leakage add-on block 2P 63A AC 30MA Schneider Electric pb110820 1500x1500
-60%

A9N26612 | VIGI XC60- earth leakage add-on block 2P 63A AC 100MA – Schneider Electric

Schneider Electric
Original price was: ₹16,493.00.Current price is: ₹6,597.20. Excl. GST
Add to basket
SKU: A9N26612
A9N26946 MX Shunt Trip MX plus 1 OF 220-415Vac dc Schneider Electric pb107148 1500x1500
-40%

A9N26946 | MX Shunt Trip MX plus 1 OF 220-415Vac dc – Schneider Electric

Schneider Electric
Original price was: ₹4,873.00.Current price is: ₹2,923.80. Excl. GST
Add to basket
SKU: A9N26946
A9N26923 Acti 9 auxiliary contact OFS 1 O C for RCCB Schneider Electric pb107192 1500x1500
-40%

A9N26923 | Acti 9 – auxiliary contact OFS 1 O/C for RCCB – Schneider Electric

Schneider Electric
Original price was: ₹11,201.00.Current price is: ₹6,720.60. Excl. GST
Add to basket
SKU: A9N26923
-27%

A9N26909 | Acti9 A9N OF/SD+OF top/bt wir 0.1-6A aux – Schneider Electric

Schneider Electric
Original price was: ₹2,649.00.Current price is: ₹1,933.77. Excl. GST
Add to basket
SKU: A9N26909
A9N26948 MX Shunt Trip MX plus 1 OF 24Vac dc Schneider Electric 61011 a9n26948 1500x1500
-40%

A9N26948 | MX Shunt Trip MX plus 1 OF 24Vac dc – Schneider Electric

Schneider Electric
Original price was: ₹4,873.00.Current price is: ₹2,923.80. Excl. GST
Add to basket
SKU: A9N26948
A9N26581 VIGI XC60- earth leakage add-on block 2P 25A AC 30MA Schneider Electric pb110819 1500x1500
-60%

A9N26581 | VIGI XC60- earth leakage add-on block 2P 25A AC 30MA – Schneider Electric

Schneider Electric
Original price was: ₹12,873.00.Current price is: ₹5,149.20. Excl. GST
Add to basket
SKU: A9N26581
A9N26581 VIGI XC60- earth leakage add-on block 2P 25A AC 30MA Schneider Electric pb110819 1500x1500
-60%

A9N26583 | VIGI XC60- earth leakage add-on block 2P 25A AC 300MA – Schneider Electric

Schneider Electric
Original price was: ₹14,980.00.Current price is: ₹5,992.00. Excl. GST
Add to basket
SKU: A9N26583
-39%

A9N26907 | Acti9 A9N SD bottom wiring 0.1-6A aux – Schneider Electric

Schneider Electric
Original price was: ₹2,184.00.Current price is: ₹1,332.24. Excl. GST
Add to basket
SKU: A9N26907
A9N26611 VIGI XC60- earth leakage add-on block 2P 63A AC 30MA Schneider Electric pb110820 1500x1500

A9N26611 | VIGI XC60- earth leakage add-on block 2P 63A AC 30MA – Schneider Electric

Schneider Electric
₹15,574.00 Excl. GST
Add to basket
SKU: A9N26611
-39%

A9N26904 | Acti9 A9A iOF bottom wiring 0.1-6A aux – Schneider Electric

Schneider Electric
Original price was: ₹1,659.00.Current price is: ₹1,011.99. Excl. GST
Add to basket
SKU: A9N26904

    The Schneider Electric A9N2P10CGN is a miniature circuit breaker (mcb) from the Acti9 range, engineered for reliable circuit protection and isolation in demanding Indian and international installations. Key ratings include 10 A, 220…240 V AC 50/60 Hz, 2P. Buy the A9N2P10CGN | Acti9 xC60 2P C 10A MCB IS/IEC 60898-1 online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

    📋 Technical Specifications

    Product
    BrandSchneider Electric
    Part Number / SKUA9N2P10CGN
    CategoryMiniature Circuit Breaker (MCB)
    Main
    Device applicationDistribution
    Range of productActi9
    RangeActi9
    Product nameXC60
    Product or component typeMiniature circuit-breaker
    Device short namexC60
    Poles description2P
    Number of protected poles2
    [In] rated current10 A
    Network typeAC
    Trip unit technologyThermal-magnetic
    Curve codeC
    Complementary
    Network frequency50/60 Hz
    [Ue] rated operational voltage220…240 V AC 50/60 Hz
    380…415 V AC 50/60 Hz
    Magnetic tripping limit5…10 x In
    Breaking capacity10000 A Icn at 240 V AC 50/60 Hz conforming to IS/IEC 60898-1
    10000 A Icn at 415 V AC 50/60 Hz conforming to IS/IEC 60898-1
    Limitation class3 conforming to IS/IEC 60898-1
    Contact position indicatorYes
    Control typeToggle
    Local signallingON/OFF indication
    Mounting modeClip-on
    Mounting support35 mm DIN rail
    Comb busbar and distribution block compatibilityTop: YES
    9 mm pitches4
    Height85 mm
    Width36 mm
    Depth77.5 mm
    Product weight0.215 kg
    ColourWhite
    Mechanical durability20000 cycles
    Electrical durability20000 cycles
    Connections – terminalsTunnel type terminals (bottom) 16 mm² flexible
    Tunnel type terminals (bottom) 25 mm² rigid
    Biconnect (bottom)
    Wire stripping length13 mm for top or bottom connection
    Tightening torque2 N.m
    Earth-leakage protectionSeparate block
    Product compatibilityC60 auxiliary
    C60 accessories
    Overvoltage categoryIV
    Environment
    StandardsIS/IEC 60898-1
    IP degree of protectionIP20
    Pollution degree3
    Tropicalisation2 conforming to IEC 60068-1
    Relative humidity95 % at 55 °C
    Ambient air temperature for operation-30…70 °C
    Ambient air temperature for storage-40…85 °C
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height8.1 cm
    Package 1 Width3.6 cm
    Package 1 Length7.4 cm
    Package 1 Weight220 g
    Unit Type of Package 2BB1
    Number of Units in Package 26
    Package 2 Height8 cm
    Package 2 Width9 cm
    Package 2 Length23.8 cm
    Package 2 Weight1.382 kg
    Unit Type of Package 3CAR
    Number of Units in Package 372
    Package 3 Height27 cm
    Package 3 Width30 cm
    Package 3 Length35 cm
    Package 3 Weight17.184 kg
    Contractual warranty
    Warranty (in months)18

    ⚡ Key Features

    • 10 A rated current — provides overload and short-circuit protection for the connected circuit.
    • 2 Poles — protects a single-phase circuit, switching both live and neutral; fits standard 35mm DIN rail in distribution boards.
    • Thermal-magnetic trip mechanism — bimetal element trips on sustained overload, instantaneous magnetic trip on short-circuit; two independent protection functions in one compact module.
    • Visi-Trip indicator — handle snaps to a clearly visible mid-position on trip, allowing instant fault identification without opening the panel door.
    • Compatible with Acti9 comb busbar (1P, 2P, 3P, 3P+N) — parallel wiring of multiple MCBs without individual cables, cutting panel wiring time significantly.
    • Manufactured to IS 8828 / IEC 60898-1 (residential) and IEC 60947-2 (industrial) — complies with the applicable Indian BIS and IEC international standards for this product category.
    • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
    • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
    • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
    • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

    ❓ Frequently Asked Questions

    Q: What load can the A9N2P10CGN protect at its rated 10 A?

    A: The A9N2P10CGN is rated to carry and protect circuits up to 10 A continuously. For motor loads, ensure the full-load current (FLC) of the motor does not exceed this rating. For resistive loads (heaters, lighting), the 10 A rating is used directly. Derate by 20% for ambient temperatures above 40°C.

    Q: Is the A9N2P10CGN suitable for both single-phase and three-phase systems?

    A: The A9N2P10CGN is a 2 poles device for single-phase circuits. For three-phase circuits, use a 3-pole or 4-pole MCB of the same series.

    Q: Can the A9N2P10CGN be DIN rail mounted in any standard distribution board?

    A: Yes. This Schneider Electric MCB uses the standard 35mm EN 60715 DIN rail and 17.5mm module width, making it compatible with all major brand distribution boards and enclosures. Terminal capacity accommodates both rigid and flexible conductors up to the rated cross-section.

    Q: What happens when the A9N2P10CGN trips — how do I identify and reset it?

    A: When the A9N2P10CGN trips on fault, the handle moves to a midway position (between ON and OFF), distinctly visible from a distance. To reset: (1) identify and rectify the fault, (2) push the handle fully to OFF, (3) then switch back to ON. Never force-reset without investigating the fault cause.

    Q: Which Schneider Electric accessories are compatible with the A9N2P10CGN?

    A: The Schneider Electric Acti9 series supports snap-on accessories including auxiliary contacts (OF), alarm contacts (SD), shunt trip coils (MX), undervoltage releases (MN), and comb busbars. Accessories are series-specific — always verify compatibility using the Schneider Electric product catalogue before ordering. myelectric.in can advise on the correct accessory part numbers for the A9N2P10CGN.
