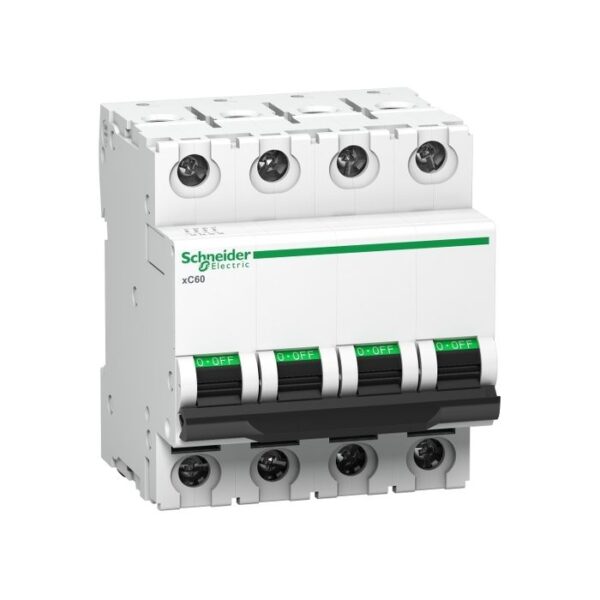

A9N4P40CIN | Acti9 xC60 4P C 40A MCB IS/IEC 60947-2 – Schneider Electric

Name: A9N4P40CIN | Acti9 xC60 4P C 40A MCB IS/IEC 60947-2 - Schneider Electric
Brand: Schneider Electric
SKU: A9N4P40CIN
Availability: BackOrder

SKU: A9N4P40CIN

Original price was: ₹6,751.00.Current price is: ₹2,362.85. Excl. GST

Dispatch By : 2 Weeks

20 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-27%

A9N26909 | Acti9 A9N OF/SD+OF top/bt wir 0.1-6A aux – Schneider Electric

Excl. GST

SKU: A9N26909

A9N26595 | VIGI XC60- earth leakage add-on block 4P 25A AC 30MA – Schneider Electric

Excl. GST

SKU: A9N26595

A9N26960 | Voltage release MN 220-240Vac dc – Schneider Electric

Auxiliaries and Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: A9N26960

-39%

A9N26907 | Acti9 A9N SD bottom wiring 0.1-6A aux – Schneider Electric

Excl. GST

SKU: A9N26907

A9N26644 | VIGI XC60- earth leakage add-on block 4P 63A AC 100MA – Schneider Electric

Excl. GST

SKU: A9N26644

A9N26904 | Acti9 A9A iOF bottom wiring 0.1-6A aux – Schneider Electric

Excl. GST

SKU: A9N26904

A9N26923 | Acti 9 – auxiliary contact OFS 1 O/C for RCCB – Schneider Electric

Auxiliaries and Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: A9N26923

-60%

A9N26643 | VIGI XC60- earth leakage add-on block 4P 63A AC 30MA – Schneider Electric

Excl. GST

SKU: A9N26643

A9N26948 | MX Shunt Trip MX plus 1 OF 24Vac dc – Schneider Electric

Auxiliaries and Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: A9N26948

-60%

A9N26597 | VIGI XC60- earth leakage add-on block 4P 25A AC 300MA – Schneider Electric

Excl. GST

SKU: A9N26597

A9N26946 | MX Shunt Trip MX plus 1 OF 220-415Vac dc – Schneider Electric

Auxiliaries and Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: A9N26946

-60%

A9N26596 | VIGI XC60- earth leakage add-on block 4P 25A AC 100MA – Schneider Electric

Excl. GST

SKU: A9N26596

A9N26645 | VIGI XC60- earth leakage add-on block 4P 63A AC 300MA – Schneider Electric

Vigi Block

Schneider Electric

Excl. GST

Add to basket

SKU: A9N26645

The Schneider Electric A9N4P40CIN is a miniature circuit breaker (mcb) from the Acti9 range, engineered for reliable circuit protection and isolation in demanding Indian and international installations. Key ratings include 40 A, 415 V AC 50/60 Hz, 4P. Buy the A9N4P40CIN | Acti9 xC60 4P C 40A MCB IS/IEC 60947-2 online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	A9N4P40CIN
Category	Miniature Circuit Breaker (MCB)
Main
Device application	Distribution
Range of product	Acti9
Range	Acti9
Product name	XC60
Product or component type	Miniature circuit-breaker
Device short name	xC60
Poles description	4P
Number of protected poles	4
[In] rated current	40 A
Network type	AC DC
Trip unit technology	Thermal-magnetic
Curve code	C
Utilisation category	Category A conforming to IS/IEC 60947-2
Suitability for isolation	Yes conforming to IS/IEC 60947-2
Complementary
Network frequency	50/60 Hz
[Ue] rated operational voltage	415 V AC 50/60 Hz 220…250 V DC
Magnetic tripping limit	8 x In +/- 20 %
Breaking capacity	15 kA Inc at 415 V AC 50/60 Hz conforming to IS/IEC 60947-2 6 kA Icu at 220…250 V DC conforming to IS/IEC 60947-2
[Ics] rated service breaking capacity	7.5 kA conforming to IS/IEC 60947-2 – 415 V AC 50/60 Hz 6 kA conforming to IS/IEC 60947-2 – 220…250 V DC
Limitation class	3 conforming to IS/IEC 60947-2
[Ui] rated insulation voltage	500 V AC 50/60 Hz conforming to IS/IEC 60947-2
[Uimp] rated impulse withstand voltage	4 kV conforming to IS/IEC 60947-2
Contact position indicator	Yes
Control type	Toggle
Local signalling	ON/OFF indication
Mounting mode	Clip-on
Mounting support	35 mm DIN rail
Comb busbar and distribution block compatibility	Top: YES
9 mm pitches	8
Height	85 mm
Width	72 mm
Depth	77.5 mm
Product weight	0.415 kg
Colour	White
Mechanical durability	20000 cycles
Electrical durability	10000 cycles
Connections – terminals	Biconnect (bottom) Tunnel type terminals (bottom) 25 mm² flexible Tunnel type terminals (bottom) 35 mm² rigid
Wire stripping length	13 mm for top or bottom connection
Tightening torque	3.5 N.m
Earth-leakage protection	Separate block
Product compatibility	C60 accessories C60 auxiliary
Overvoltage category	IV
Environment
Standards	IS/IEC 60947-2
IP degree of protection	IP20
Pollution degree	3
Tropicalisation	2 conforming to IEC 60068-1
Relative humidity	95 % at 55 °C
Ambient air temperature for operation	-30…70 °C
Ambient air temperature for storage	-40…85 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8.1 cm
Package 1 Width	7.15 cm
Package 1 Length	7.4 cm
Package 1 Weight	470 g
Unit Type of Package 2	BB1
Number of Units in Package 2	3
Package 2 Height	8 cm
Package 2 Width	9 cm
Package 2 Length	23.8 cm
Package 2 Weight	1.472 kg
Unit Type of Package 3	CAR
Number of Units in Package 3	36
Package 3 Height	27 cm
Package 3 Width	30 cm
Package 3 Length	35 cm
Package 3 Weight	18.264 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

40 A rated current — provides overload and short-circuit protection for the connected circuit.
4 Poles — protects a three-phase four-wire circuit with switched neutral; fits standard 35mm DIN rail in distribution boards.
Thermal-magnetic trip mechanism — bimetal element trips on sustained overload, instantaneous magnetic trip on short-circuit; two independent protection functions in one compact module.
Visi-Trip indicator — handle snaps to a clearly visible mid-position on trip, allowing instant fault identification without opening the panel door.
Compatible with Acti9 comb busbar (1P, 2P, 3P, 3P+N) — parallel wiring of multiple MCBs without individual cables, cutting panel wiring time significantly.
Manufactured to IS 8828 / IEC 60898-1 (residential) and IEC 60947-2 (industrial) — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: What load can the A9N4P40CIN protect at its rated 40 A?

A: The A9N4P40CIN is rated to carry and protect circuits up to 40 A continuously. For motor loads, ensure the full-load current (FLC) of the motor does not exceed this rating. For resistive loads (heaters, lighting), the 40 A rating is used directly. Derate by 20% for ambient temperatures above 40°C.

Q: Is the A9N4P40CIN suitable for both single-phase and three-phase systems?

A: The A9N4P40CIN with 4 Poles can protect three-phase circuits. Each pole simultaneously interrupts one phase — ensuring all phases are de-energised on a fault.

Q: Can the A9N4P40CIN be DIN rail mounted in any standard distribution board?

A: Yes. This Schneider Electric MCB uses the standard 35mm EN 60715 DIN rail and 17.5mm module width, making it compatible with all major brand distribution boards and enclosures. Terminal capacity accommodates both rigid and flexible conductors up to the rated cross-section.

Q: What happens when the A9N4P40CIN trips — how do I identify and reset it?

A: When the A9N4P40CIN trips on fault, the handle moves to a midway position (between ON and OFF), distinctly visible from a distance. To reset: (1) identify and rectify the fault, (2) push the handle fully to OFF, (3) then switch back to ON. Never force-reset without investigating the fault cause.

Q: Which Schneider Electric accessories are compatible with the A9N4P40CIN?

A: The Schneider Electric Acti9 series supports snap-on accessories including auxiliary contacts (OF), alarm contacts (SD), shunt trip coils (MX), undervoltage releases (MN), and comb busbars. Accessories are series-specific — always verify compatibility using the Schneider Electric product catalogue before ordering. myelectric.in can advise on the correct accessory part numbers for the A9N4P40CIN.
