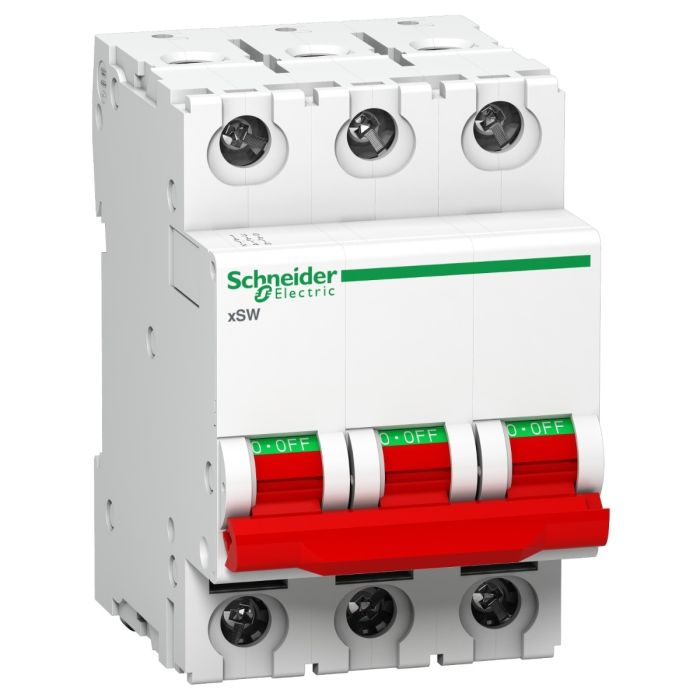

A9S3P063 | Acti 9 Isolator xSW 3P 63A – Schneider Electric

Name: A9S3P063 | Acti 9 Isolator xSW 3P 63A - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: A9S3P063
Price: 1043.35 INR
Availability: BackOrder

SKU: A9S3P063

Original price was: ₹2,981.00.Current price is: ₹1,043.35. Excl. GST

Dispatch By : 1 Weeks

12 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-27%

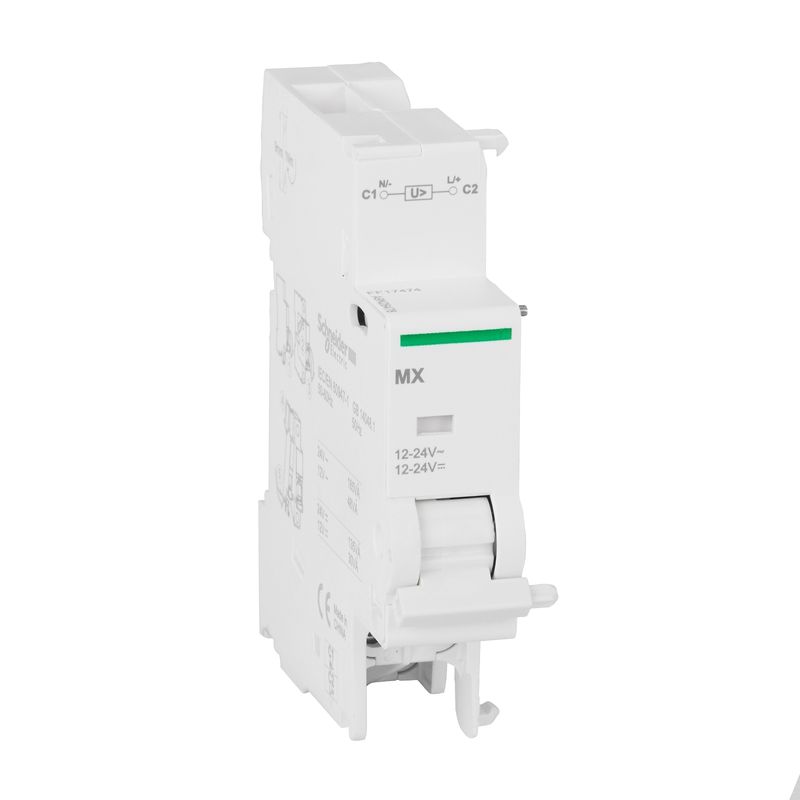

A9N26478 | DECLENCHEUR MX 12-24VAC 12-24VDC CCC – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: A9N26478

-27%

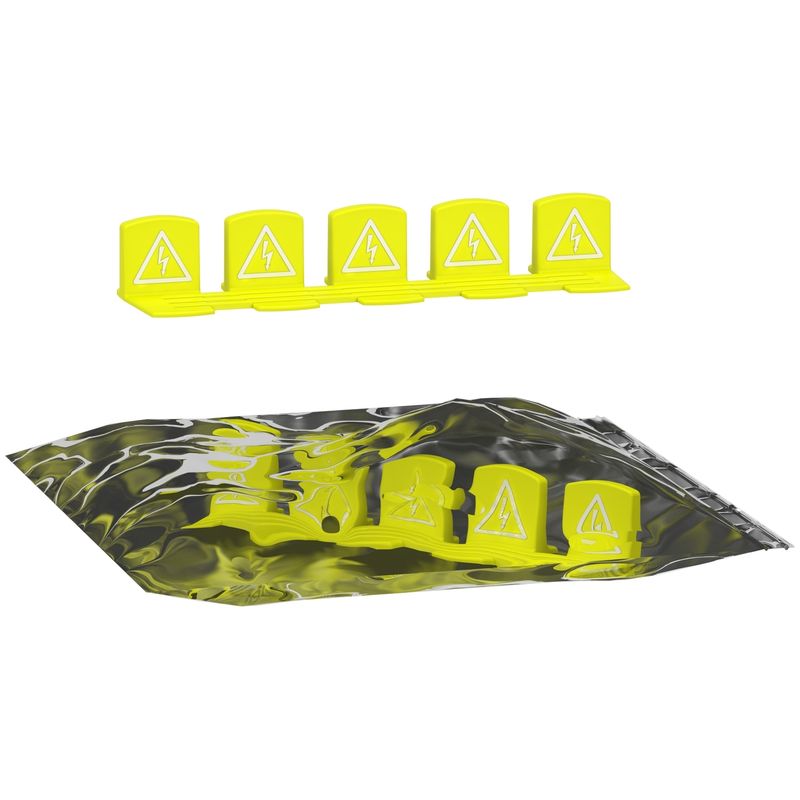

R9XT20 | R9 SET OF 20 TOOTH CAPS – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: R9XT20

-40%

A9N26946 | MX Shunt Trip MX plus 1 OF 220-415Vac dc – Schneider Electric

Auxiliaries and Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: A9N26946

-27%

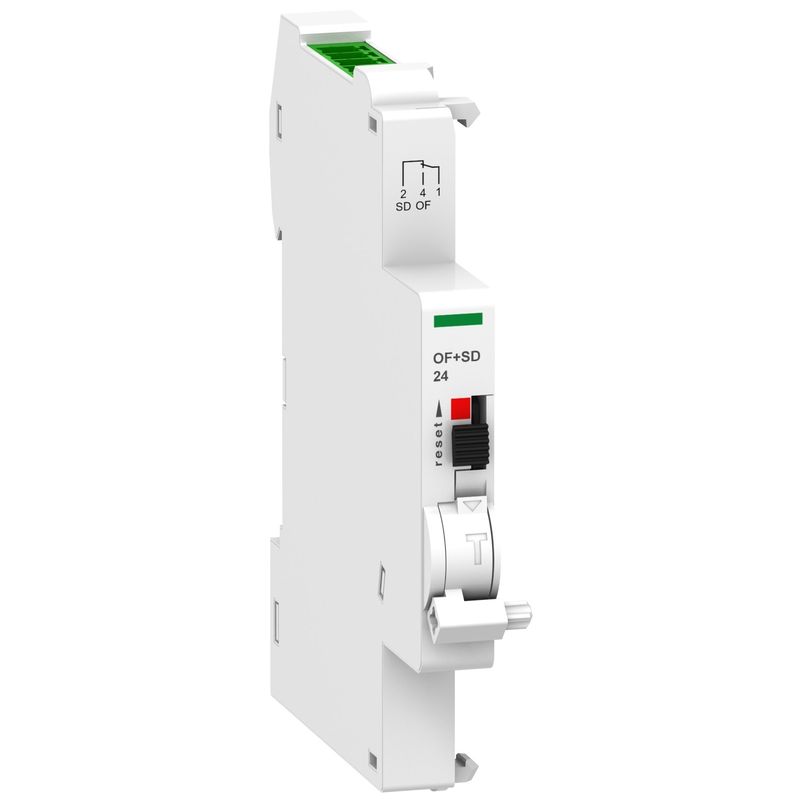

A9N26899 | Acti9 A9N OF+SD 24 VDC Ti24 term on top – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: A9N26899

-40%

A9N26960 | Voltage release MN 220-240Vac dc – Schneider Electric

Auxiliaries and Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: A9N26960

-40%

A9N26948 | MX Shunt Trip MX plus 1 OF 24Vac dc – Schneider Electric

Auxiliaries and Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: A9N26948

-24%

26970 | SET 2 LOCKING SLIDE – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: 26970

-27%

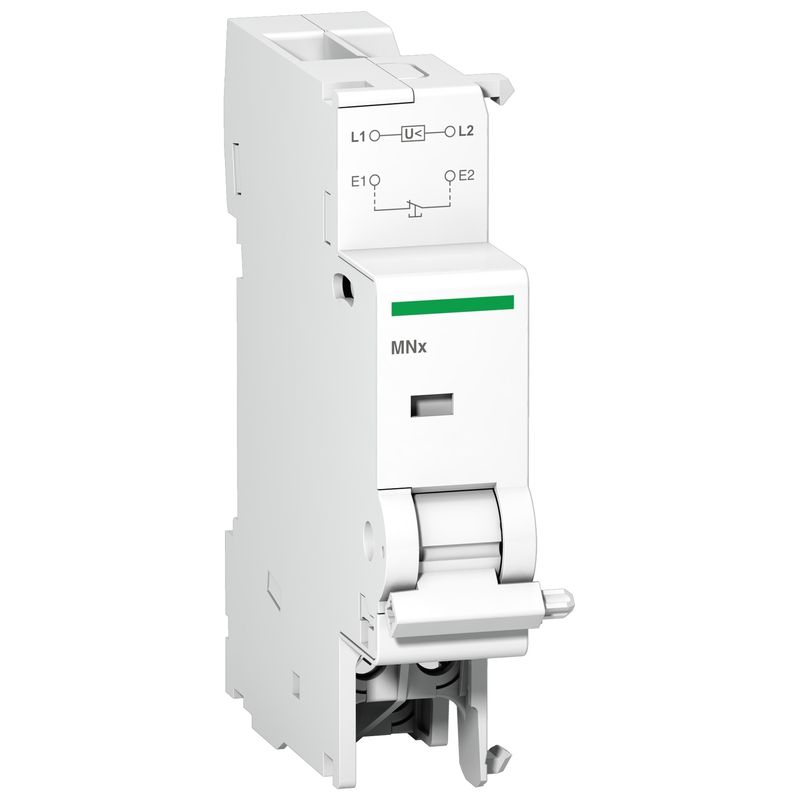

A9N26969 | VOLTAGE RELEASE MNX 220-240VAC DC GHOST – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: A9N26969

-27%

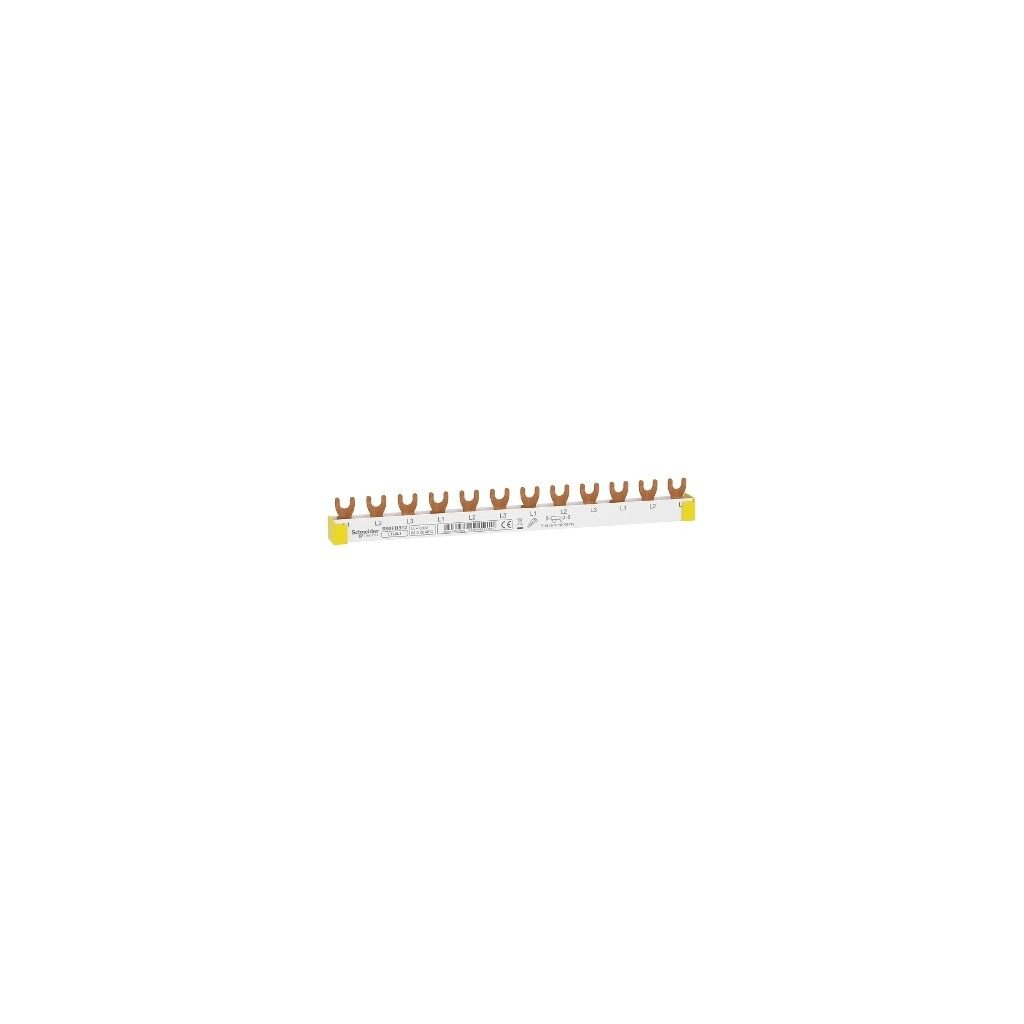

R9XFH312 | Resi9 – comb busbar – 3L – 18 mm pitch – 12 modules – 63 A – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: R9XFH312

-27%

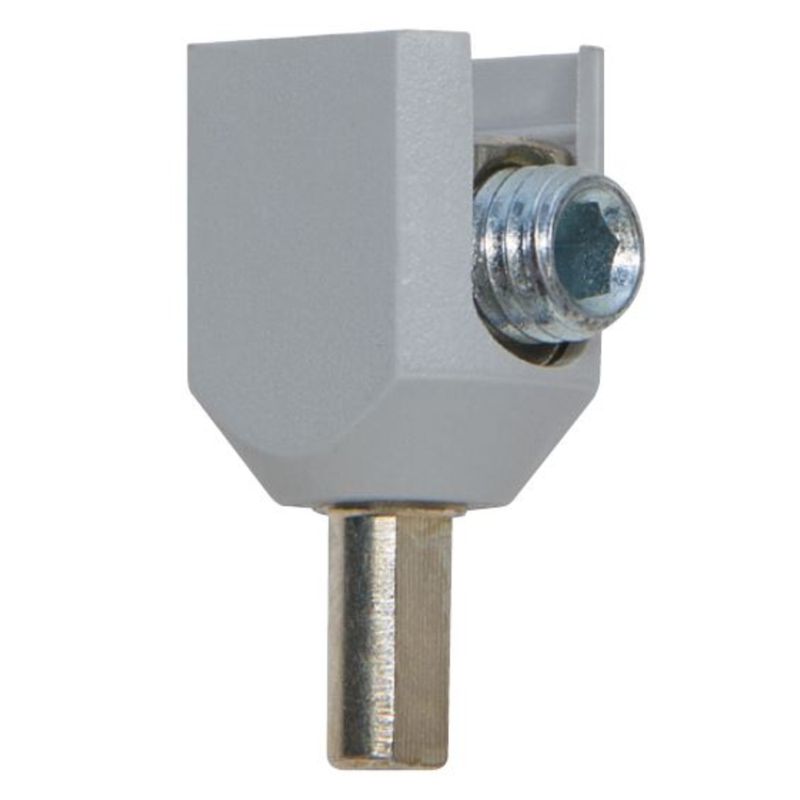

27060 | ALU CABLE CONNECTOR FOR C60/C120 – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: 27060

-27%

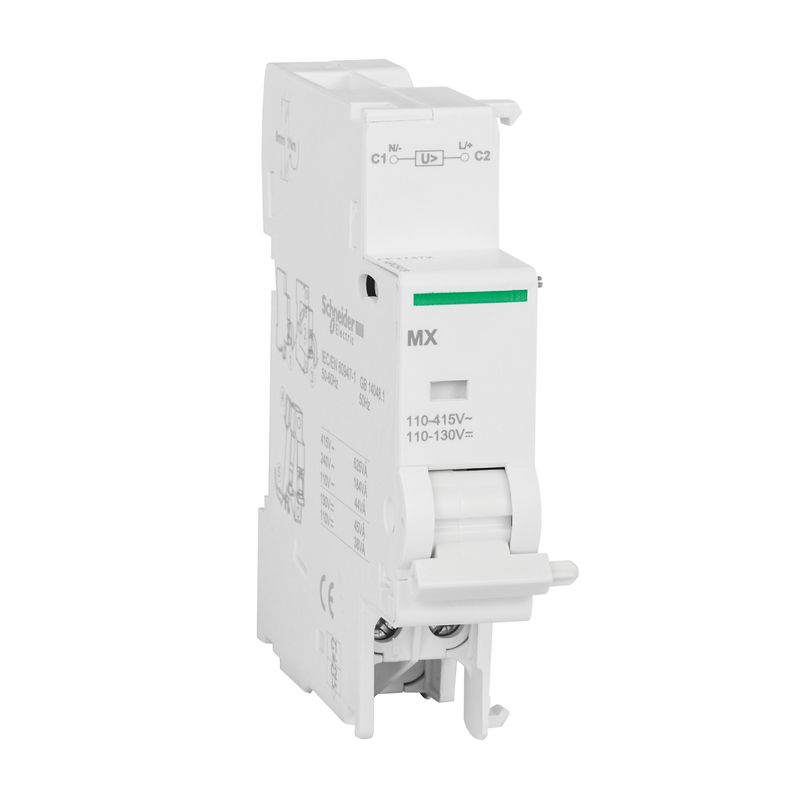

A9N26476 | DECLENCHEUR MX 415VAC 110-130VDC CCC – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: A9N26476

The Schneider Electric A9S3P063 is an isolator / disconnector from the ISW 40…125 range, engineered for reliable circuit protection and isolation in demanding Indian and international installations. Key ratings include 63 A at 415 V AC, 3P, IP20. Buy the A9S3P063 | Acti 9 Isolator xSW 3P 63A online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	A9S3P063
Category	Isolator / Disconnector
Main
Range of product	ISW 40…125
Range	Acti9
Product or component type	Isolator
Device application	Isolation
Complementary
[Ie] rated operational current	63 A at 415 V AC
[Us] rated supply voltage	415 V AC
[Icm] rated short-circuit making capacity	1 kA switch-disconnector alone at 50/60 Hz
[Icw] rated short-time withstand current	0.787 kA during 300 ms
[Ui] rated insulation voltage	500 V
[Uimp] rated impulse withstand voltage	4 kV
Poles description	3P
Power losses per pole	4.1 W
Total power losses	12.3 W
Utilisation category	AC-22A
Suitability for isolation	Yes
Control type	Toggle
Total number of 18 mm modules	3
Product destination	Distribution board
Local signalling	ON/OFF indication
Mounting mode	Fixed
Mounting support	DIN rail
Comb busbar and distribution block compatibility	Downstream: biconnect
Connection pitch	18 mm between phases
Height	81 mm
Width	54 mm
Depth	78.5 mm
Product weight	0.36 kg
Colour	White
Mechanical durability	8500 cycles
Electrical durability	1500 cycles
Connections – terminals	Tunnel type terminal (top and bottom) – 1…35 mm² – rigid Tunnel type terminal (top and bottom) – 1…25 mm² – flexible Tunnel type terminal (top and bottom) – 1…25 mm² – flexible with ferrule
Wire stripping length	9 mm
tightening torque	3.5 N.m
Compatibility code	SW
Environment
Pollution degree	3
Standards	IS/IEC 60947-3
IP degree of protection	IP20
Tropicalisation	2 conforming to IEC 60068-2-30
Relative humidity	95 % at 55 °C
Ambient air temperature for operation	-30…70 °C
Ambient air temperature for storage	-40…85 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8 cm
Package 1 Width	7 cm
Package 1 Length	8 cm
Package 1 Weight	0.264 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

63 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

R9XE31026970A9N26960A9N26961A9N26969A9N26476A9N26477A9N26478A9N26946A9N26947A9N26948A9N26899R9XFH312R9XFH357R9XT201909627060

❓ Frequently Asked Questions

Q: What is the significance of the 63 A rating on the A9S3P063?

A: The 63 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

Q: How many padlocks can be applied to the A9S3P063 for LOTO safety?

A: The Schneider Electric switch disconnector supports up to 3 simultaneous padlocks on the OFF-position locking facility. This allows multiple contractors or maintenance teams to each apply their own padlock, ensuring the circuit cannot be re-energised until all teams have removed their lock — a critical requirement for multi-contractor LOTO procedures.

Q: Can the A9S3P063 make and break load current, or is it for isolation only?

A: This is a switch-disconnector (not a pure isolator), meaning it is rated to make and break load currents up to its rated current under AC-22A or AC-23A utilisation categories. Pure isolators must only be operated on de-energised circuits. The Schneider Electric switch-disconnector can therefore be used for operational switching, not just maintenance isolation.
