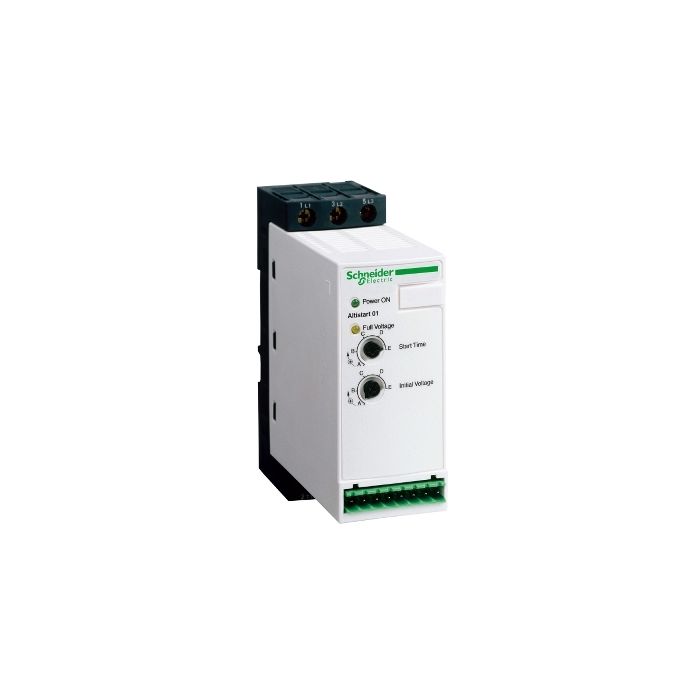

ATS01N125FT | Soft starter for asynchronous motor – ATS01 – 25 A – 110..480V – 2.2..11 KW – Schneider Electric

Name: ATS01N125FT | Soft starter for asynchronous motor - ATS01 - 25 A - 110..480V - 2.2..11 KW - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: ATS01N125FT
Price: 15393.38 INR
Availability: BackOrder

SKU: ATS01N125FT

Original price was: ₹41,049.00.Current price is: ₹15,393.38. Excl. GST

Dispatch By : 3 Weeks

13 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-58%

GV2ME20 | Motor circuit breaker, TeSys GV2, 3P, 13-18 A, thermal magnetic, screw clamp terminals – Schneider Electric

MPCB

Schneider Electric

Excl. GST

Add to basket

SKU: GV2ME20

LC1D25BD TeSys D contactor 3P 3 NO AC-3 lc1d25bd image 1500x1500

-55%

LC1D25BD | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 25 A - 24 V DC coil - Schneider Electric

Power Contactor

Schneider Electric

Excl. GST

Add to basket

SKU: LC1D25BD

Looking for the ATS01N125FT | Soft starter for asynchronous motor – ATS01 – 25 A – 110..480V – 2.2..11 KW? This genuine Schneider Electric soft starter from the Altistart 01 range is built for motor control and switching, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 25 A, IP20. Order part number ATS01N125FT from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	ATS01N125FT
Category	Soft Starter
Main
Range of product	Altistart 01
Product destination	Asynchronous motors
Product or component type	Soft starter
Product specific application	Simple machine
Device short name	ATS01
Network number of phases	1 phase
[Us] rated supply voltage	110…480 V – 10…10 %
Motor power kW	11 kW, 3 phases at 400 V 3 kW, 3 phases at 230 V 4 kW, 3 phases at 230 V 9 kW, 3 phases at 400 V 7.5 kW, 3 phases at 400 V 5.5 kW, 3 phases at 230 V 2.2 kW, 1 phase at 230 V
Motor power hp	11 hp, 3 phases at 460 V 2 hp, 3 phases at 210 V 3 hp, 3 phases at 210 V 5 hp, 3 phases at 230 V 9 hp, 3 phases at 460 V 7.5 hp, 3 phases at 230 V
IcL starter rating	25 A
Utilisation category	AC-53B conforming to EN/IEC 60947-4-2
Current consumption	125 A at nominal load
Type of start	Start with voltage ramp
Power dissipation in W	1 W at full load and at end of starting 126 W in transient state
Complementary
Assembly style	With heat sink
Function available	Integrated bypass
Supply voltage limits	99…528 V
Supply frequency	50…60 Hz – 5…5 %
Network frequency	47.5…63 Hz
Output voltage	<= power supply voltage
[Uc] Control circuit voltage	110 V AC +/- 10 % at 35 mA 24 V AC/DC +/- 10 % at 30 mA 240 V AC +/- 10 % at 80 mA
Starting time	1 s / 100 5 s / 20 Adjustable from 1 to 5 s
Starting torque	30…80 % of starting torque of motor connected directly on the line supply
Discrete output current	2 A DC-13 3 A AC-15
tightening torque	0.5 N.m 1.9…2.5 N.m
Electrical connection	4 mm screw clamp terminal – rigid 1 1…10 mm² AWG 8 power circuit Screw connector – rigid without cable end 1 0.5…2.5 mm² AWG 14 control circuit 4 mm screw clamp terminal – rigid 2 1…6 mm² AWG 10 power circuit Screw connector – rigid 2 0.5…1 mm² AWG 17 control circuit Screw connector – flexible with cable end 1 0.5…1.5 mm² AWG 16 control circuit 4 mm screw clamp terminal – flexible without cable end 1 1.5…10 mm² AWG 8 power circuit Screw connector – flexible without cable end 1 0.5…2.5 mm² AWG 14 control circuit 4 mm screw clamp terminal – flexible with cable end 2 1…6 mm² AWG 10 power circuit 4 mm screw clamp terminal – flexible without cable end 2 1.5…6 mm² AWG 10 power circuit Screw connector – flexible without cable end 2 0.5…1.5 mm² AWG 16 control circuit
Marking	CE
Operating position	Vertical +/- 10 degree
Height	124 mm
Width	45 mm
Depth	131 mm
Product weight	0.35 kg
Compatibility code	ATS01N1
Power range	2.2…3 kW at 200…240 V 3 phases 2.2…3 kW at 200…240 V 1 phase 4…6 kW at 200…240 V 3 phases 7…11 kW at 200…240 V 3 phases 7…11 kW at 380…440 V 3 phases
Motor starter type	Soft starter
Environment
Electromagnetic compatibility	Conducted and radiated emissions level B conforming to CISPR 11 Conducted and radiated emissions level B conforming to IEC 60947-4-2 Damped oscillating waves level 3 conforming to IEC 61000-4-12 Electrostatic discharge level 3 conforming to IEC 61000-4-2 EMC immunity level 3 conforming to EN 50082-1 EMC immunity level B conforming to EN 50082-2 Harmonics level 3 conforming to IEC 1000-3-2 Harmonics level 3 conforming to IEC 1000-3-4 Immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6 Immunity to electrical transients level 4 conforming to IEC 61000-4-4 Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 Micro-cuts and voltage fluctuation conforming to IEC 61000-4-11 Voltage/current impulse level 3 conforming to IEC 61000-4-5
Standards	EN/IEC 60947-4-2
Product certifications	C-Tick CCC GOST CSA UL
IP degree of protection	IP20
Pollution degree	2 conforming to EN/IEC 60947-4-2
Vibration resistance	1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6 1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6
Shock resistance	15 gn for 11 ms conforming to EN/IEC 60068-2-27
Relative humidity	5…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3
Ambient air temperature for operation	-10…40 °C (without derating) 40…50 °C (with current derating of 2 % per °C)
Ambient air temperature for storage	-25…70 °C conforming to EN/IEC 60947-4-2
Operating altitude	<= 1000 m without derating > 1000 m with current derating of 2.2 % per additional 100 m
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.200 cm
Package 1 Width	15.500 cm
Package 1 Length	17.500 cm
Package 1 Weight	407.000 g
Unit Type of Package 2	S03
Number of Units in Package 2	14
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	6.147 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

25 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

GV2ME20LC1D25BD

❓ Frequently Asked Questions

Q: What is the significance of the 25 A rating on the ATS01N125FT?

A: The 25 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.
