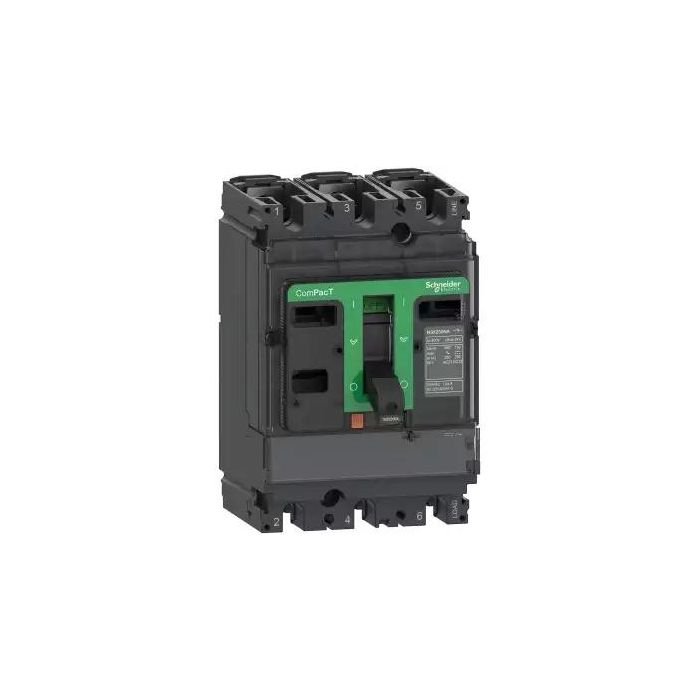

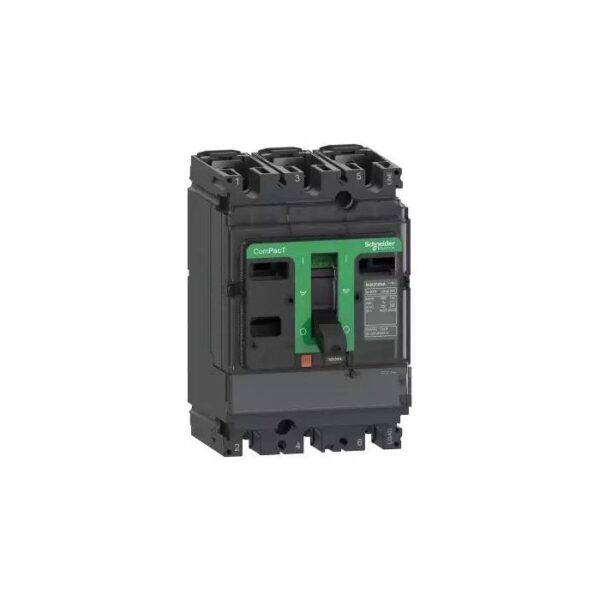

C163160S | SWITCH NSX160NA AC 3P 160A – Schneider Electric

Name: C163160S | SWITCH NSX160NA AC 3P 160A - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: C163160S
Price: 23424.00 INR
Availability: BackOrder

SKU: C163160S

Original price was: ₹48,800.00.Current price is: ₹23,424.00. Excl. GST

Dispatch By : 3 Weeks

11 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Looking for the C163160S | SWITCH NSX160NA AC 3P 160A? This genuine Schneider Electric mccb is built for reliable circuit protection and isolation, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 160 A, 3 Poles. Order part number C163160S from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Parameter	Value
Brand	Schneider Electric
Part Number / SKU	C163160S
Category	MCCB
Current Rating	160 A
Frame Size	160 A
Poles	3 Poles
Rated Operational Voltage (Ue)	415V AC (50/60 Hz)
Rated Insulation Voltage (Ui)	800 V
Rated Impulse Withstand (Uimp)	8 kV
Service Breaking Capacity (Ics)	100% of Icu
Mounting	Fixed, front connected
Rated Frequency	50/60 Hz
Standard	IEC 60947-2 / IS 13947-2
Certifications	BIS certified, CE marked, RoHS compliant

⚡ Key Features

160 A frame rating — handles the full rated current continuously; designed for feeder and sub-distribution protection where fault levels exceed MCB capability.
Thermal-magnetic trip unit — factory-calibrated overload and short-circuit protection; suitable for standard feeder circuits without electronic adjustment.
3 Poles — three-phase feeder protection; neutral not switched (TN-C / IT systems).
CompacT NSX form factor — 70mm wide per pole; designed for high-density LV switchboards with up to 3 units per standard 250mm busbar bay.
Rotary handle with padlocking points — LOTO compliant; handle locks in OFF position with up to 3 padlocks, preventing accidental energisation during maintenance.
Manufactured to IEC 60947-2 / IS 13947-2 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: What load can the C163160S protect at its rated 160 A?

A: The C163160S is rated to carry and protect circuits up to 160 A continuously. For motor loads, ensure the full-load current (FLC) of the motor does not exceed this rating. For resistive loads (heaters, lighting), the 160 A rating is used directly. Derate by 20% for ambient temperatures above 40°C.

Q: Can the C163160S be motorised for remote switching and automation?

A: Yes. Schneider Electric MCCBs in this series support rotary handle adaptation and motorised operating mechanisms as accessories, enabling remote ON/OFF switching via PLC, SCADA, or BMS. Motorised MCCBs are used for automatic load management and remote trip in automated distribution systems.

Q: What trip unit type does the C163160S use — thermal-magnetic or electronic?

A: Refer to the product label or datasheet for the exact trip unit specification. The trip unit determines adjustability and protection accuracy.

Q: Is the C163160S suitable for use as a motor branch circuit protector (Type E coordination)?

A: MCCBs used for motor branch circuit protection must be coordinated with the downstream overload relay for Type 2 coordination (no damage to contactor or relay on short-circuit). Verify the Schneider Electric coordination table for the specific contactor-overload-MCCB combination to confirm Type 1 or Type 2 coordination is achieved.

Q: Which Schneider Electric accessories are compatible with the C163160S?

A: The Schneider Electric C163160S series supports snap-on accessories including auxiliary contacts (OF), alarm contacts (SD), shunt trip coils (MX), undervoltage releases (MN), and comb busbars. Accessories are series-specific — always verify compatibility using the Schneider Electric product catalogue before ordering. myelectric.in can advise on the correct accessory part numbers for the C163160S.
