C25V36E250 NSX250HB1 75kA AC 3P 250A 6.2E Schneider Electric c25v36e250
Click to enlarge

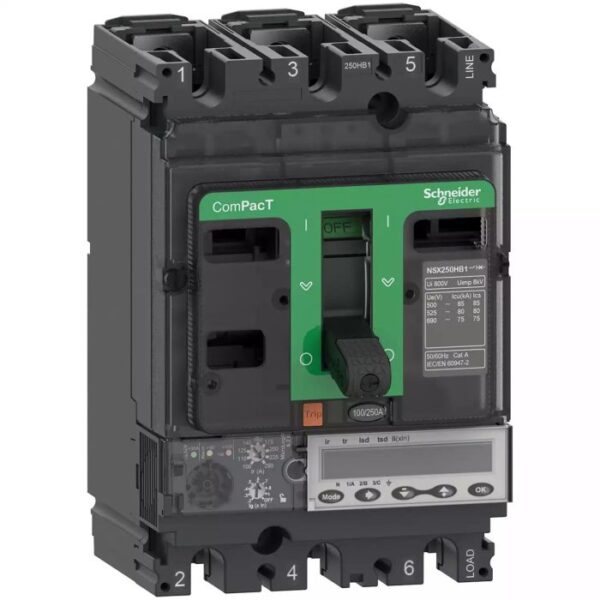

C25V36E250 | NSX250HB1 75kA AC 3P 250A 6.2E – Schneider Electric

SKU: C25V36E250

Original price was: ₹468,900.00.Current price is: ₹212,177.25. Excl. GST

Dispatch By : 9 Weeks

Dispatch By : 9 Weeks

My Electric Support Online · Mon–Sat 9am–6pm IST
Product enquiry
Order on WhatsApp SKU: C25V36E250

Same-day dispatch · GST invoice available

20 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

Placeholder
-46%

LV429492 | Vigi 200-440V 3P for NSX250 – Schneider Electric

Original price was: ₹45,210.00.Current price is: ₹24,413.40. Excl. GST
Add to basket
SKU: LV429492
-50%

LV429408 | MN 380-415V50/60HZ 440-480V60HZ UVR – Schneider Electric

Schneider Electric
Original price was: ₹5,880.00.Current price is: ₹2,969.40. Excl. GST
Add to basket
SKU: LV429408
LV429388 MX shunt trip release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 380 to 415 VAC 50 60 Hz, 44
-48%

LV429388 | MX shunt trip release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 380 to 415 VAC 50/60 Hz, 440 to 480 VAC 60 Hz – Schneider Electric

Schneider Electric
Original price was: ₹4,740.00.Current price is: ₹2,464.80. Excl. GST
Add to basket
SKU: LV429388
LV429329 interphase barriers, Compact NSX 100 160 250, EasyPact CVS 100 160 250, set of 6 parts Schneider Electric lv429329 1
-48%

LV429329 | interphase barriers, Compact NSX 100/160/250, EasyPact CVS 100/160/250, set of 6 parts – Schneider Electric

Schneider Electric
Original price was: ₹740.00.Current price is: ₹384.80. Excl. GST
Add to basket
SKU: LV429329
-46%

LV429289 | COMPACT PLUG IN BASE KIT 3P – Schneider Electric

Schneider Electric
Original price was: ₹20,300.00.Current price is: ₹10,962.00. Excl. GST
Add to basket
SKU: LV429289
LV429387 MX shunt trip release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 220 to 240 VAC 50 60 Hz, 20
-48%

LV429387 | MX shunt trip release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 220 to 240 VAC 50/60 Hz, 208 to 277 VAC 60 Hz – Schneider Electric

Schneider Electric
Original price was: ₹4,740.00.Current price is: ₹2,464.80. Excl. GST
Add to basket
SKU: LV429387
-50%

LV429337T | ROTARY HANDLE DIR 100-250 BLK – Schneider Electric

Schneider Electric
Original price was: ₹2,400.00.Current price is: ₹1,212.00. Excl. GST
Add to basket
SKU: LV429337T
-46%

LV429515 | 1 3P SHORT TERMINAL SHIELD – Schneider Electric

Schneider Electric
Original price was: ₹930.00.Current price is: ₹502.20. Excl. GST
Add to basket
SKU: LV429515
LV429407 MN undervoltage release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 220 to 240 VAC 50 60 Hz,
-48%

LV429407 | MN undervoltage release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 220 to 240 VAC 50/60 Hz, 208 to 277 VAC 60 Hz – Schneider Electric

Schneider Electric
Original price was: ₹5,880.00.Current price is: ₹3,057.60. Excl. GST
Add to basket
SKU: LV429407
LV431541 motor mechanism, MT 250, Compact NSX250, PowerPact Multistandard J, 220 VAC to 240 VAC 50 60 Hz, 208 VAC to 277 VAC
-48%

LV431541 | motor mechanism, MT 250, Compact NSX250, PowerPact Multistandard J, 220 VAC to 240 VAC 50/60 Hz, 208 VAC to 277 VAC 60 Hz – Schneider Electric

Schneider Electric
Original price was: ₹54,160.00.Current price is: ₹28,163.20. Excl. GST
Add to basket
SKU: LV431541
-46%

LV429354T | INTERLOCKING 100-250 FOR TOGGLE – Schneider Electric

Schneider Electric
Original price was: ₹22,100.00.Current price is: ₹11,934.00. Excl. GST
Add to basket
SKU: LV429354T
-46%

LV429517 | 1 3P LONG TERMINAL SHIELD – Schneider Electric

Schneider Electric
Original price was: ₹1,410.00.Current price is: ₹761.40. Excl. GST
Add to basket
SKU: LV429517
29450 standard auxiliary contact, circuit breaker status OF-SD-SDE-SDV, 1 single contact Schneider Electric 29450 main image
-48%

29450 | standard auxiliary contact, circuit breaker status OF-SD-SDE-SDV, 1 single contact – Schneider Electric

Schneider Electric
Original price was: ₹1,640.00.Current price is: ₹852.80. Excl. GST
Add to basket
SKU: 29450
-46%

LV429513 | TORQUE LIMITING SCREWS (SET OF 12) – Schneider Electric

Schneider Electric
Original price was: ₹5,300.00.Current price is: ₹2,862.00. Excl. GST
Add to basket
SKU: LV429513
-46%

LV429454 | Wireless auxiliary contact NSX – Schneider Electric

Schneider Electric
Original price was: ₹6,670.00.Current price is: ₹3,601.80. Excl. GST
Add to basket
SKU: LV429454
-46%

LV429338T | ROTARY HANDLE EXT 100-250 BLK. – Schneider Electric

Schneider Electric
Original price was: ₹3,300.00.Current price is: ₹1,782.00. Excl. GST
Add to basket
SKU: LV429338T

    Looking for the C25V36E250 | NSX250HB1 75kA AC 3P 250A 6.2E? This genuine Schneider Electric mccb from the ComPacT range is built for reliable circuit protection and isolation, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 250 A at 40 °C, 690 V AC 50/60 Hz, 3P. Order part number C25V36E250 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

    📋 Technical Specifications

    Product
    BrandSchneider Electric
    Part Number / SKUC25V36E250
    CategoryMCCB
    Main
    RangeComPacT
    Product nameComPacT NSX
    Device short nameNSX250HB1
    Product or component typeCircuit breaker
    Device applicationDistribution
    Poles description3P
    Protected poles description3D
    [In] rated current250 A at 40 °C
    [Ue] rated operational voltage690 V AC 50/60 Hz
    Network typeAC
    Network frequency50/60 Hz
    Suitability for isolationYes conforming to EN/IEC 60947-2
    Utilisation categoryCategory A
    Breaking capacity85 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
    80 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
    75 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
    Breaking capacity codeHB1 75 kA 690 V AC
    Trip unit nameMicroLogic 6.2 E
    Trip unit technologyElectronic
    Trip unit protection functionsLSIG
    Control typeToggle
    Circuit breaker mounting modeFixed
    Complementary
    [Ui] rated insulation voltage800 V AC 50/60 Hz
    [Uimp] rated impulse withstand voltage8 kV
    [Ics] rated service breaking capacity85 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
    80 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2
    75 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
    Mechanical durability20000 cycles
    Electrical durability20000 cycles at 440 V In/2
    10000 cycles at 440 V In
    10000 cycles at 690 V In/2
    5000 cycles at 690 V In
    Power dissipation per pole17.6 W
    Mounting supportBackplate
    Mounting positionHorizontal and vertical
    Flat on the back
    Upside connectionFront
    Downside connectionFront
    Connection pitch35 mm
    Protection typeL : for overload protection (long time)
    S : for short time short-circuit protection
    I : for instantaneous short-circuit protection
    G : for ground fault protection
    Trip unit rating250 A at 40 °C
    Long-time pick-up adjustment type Ir (thermal protection)Adjustable 9 settings
    [Ir] long-time protection pick-up adjustment range100…250 A
    Long-time protection delay adjustment type trAdjustable
    [tr] long-time delay adjustment range15…400 s at 1.5 x Ir
    0.5…16 s at 6 x Ir
    0.35…11 s at 7.2 x Ir
    Thermal memory20 minutes before and after tripping
    Short-time protection pick-up adjustment type IsdAdjustable
    [Isd] Short-time protection pick-up adjustment range1.5…10 x Ir
    Short-time protection delay adjustment type tsdAdjustable 5 settings
    [tsd] short-time delay adjustment range0…0.4 s I²t=off
    0.1…0.4 s I²t=on
    Instantaneous protection pick-up adjustment type IiAdjustable
    [Ii] instantaneous protection pick-up adjustment range1.5…12 x In
    Ground-fault protection pick-up adjustment type IgAdjustable 9 settings
    [Ig] ground-fault pick-up adjustment range0.4…1 x In for In = 40 A
    0.2…1 x In for In > 40 A
    Ig enable on/off
    Ground-fault protection time delay adjustment type tgAdjustable 5 settings
    [tg] Ground-fault time delay adjustment range0…0.4 s I²t=off
    0.1…0.4 s I²t=on
    Earth-leakage protectionWithout
    Zone selective interlocking ZSIWith
    Number of slots5 slot(s)
    Local signallingFlashing LED (green) for ready to operate
    LED 105 % Ir (red) for overload
    LED 90 % Ir (orange) for overload
    Display typeLCD display
    Type of measurementEnergy meter
    Communication of dataPower quality
    Protection and alarm settings
    Maintenance indicators
    Demand current and power
    Instantaneous and demand values
    Energy metering
    Maximeters/minimeters
    Time-stamped histories and event tables
    Width (W)105 mm
    Height (H)161 mm
    Depth (D)86 mm
    Product weight2.4 kg
    Environment
    StandardsEN/IEC 60947-2
    Overvoltage categoryIII
    Electrical shock protection classClass II on front face
    Pollution degree3 conforming to IEC 60664-1
    IP degree of protectionIP40 conforming to IEC 60529
    IK degree of protectionIK07 conforming to IEC 62262
    Ambient air temperature for operation-25…70 °C
    Ambient air temperature for storage-40…85 °C
    Relative humidity0…95 %
    Operating altitude0…2000 m without derating
    2000 m…5000 m with derating
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height11.000 cm
    Package 1 Width14.000 cm
    Package 1 Length20.000 cm
    Package 1 Weight2.110 kg
    Unit Type of Package 2S03
    Number of Units in Package 24
    Package 2 Height30.000 cm
    Package 2 Width30.000 cm
    Package 2 Length40.000 cm
    Package 2 Weight8.860 kg
    Unit Type of Package 3P12
    Number of Units in Package 332
    Package 3 Height45.000 cm
    Package 3 Width80.000 cm
    Package 3 Length120.000 cm
    Package 3 Weight82.880 kg
    Contractual warranty
    Warranty (in months)18

    ⚡ Key Features

    • 250 A frame rating — handles the full rated current continuously; designed for feeder and sub-distribution protection where fault levels exceed MCB capability.
    • 75 kA breaking capacity at 415V AC — safely clears bolted three-phase faults in high-power substations and MV/LV transformer secondaries.
    • Thermal-magnetic trip unit — factory-calibrated overload and short-circuit protection; suitable for standard feeder circuits without electronic adjustment.
    • 3 Poles — three-phase feeder protection; neutral not switched (TN-C / IT systems).
    • CompacT NSX form factor — 70mm wide per pole; designed for high-density LV switchboards with up to 3 units per standard 250mm busbar bay.
    • Rotary handle with padlocking points — LOTO compliant; handle locks in OFF position with up to 3 padlocks, preventing accidental energisation during maintenance.
    • Manufactured to IEC 60947-2 / IS 13947-2 — complies with the applicable Indian BIS and IEC international standards for this product category.
    • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
    • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
    • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.

    🔗 Compatible Products & Accessories

    The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

    LV429354TLV429517LV429515LV429329LV4294922945029452LV429387LV429388LV429407LV429408LV429337TLV429338TLV431541LV429289LV429454LV429513

    ❓ Frequently Asked Questions

    Q: What load can the C25V36E250 protect at its rated 250 A?

    A: The C25V36E250 is rated to carry and protect circuits up to 250 A continuously. For motor loads, ensure the full-load current (FLC) of the motor does not exceed this rating. For resistive loads (heaters, lighting), the 250 A rating is used directly. Derate by 20% for ambient temperatures above 40°C.

    Q: What does the 75 kA breaking capacity on the C25V36E250 mean in practice?

    A: Breaking capacity (75 kA) is the maximum prospective short-circuit current the C25V36E250 can safely interrupt without damage. Before installing, verify that the prospective fault level at the installation point does not exceed 75 kA — this is checked using a fault level calculation or from the upstream transformer impedance data. Installing a breaker with insufficient breaking capacity is a serious safety violation.

    Q: Is the C25V36E250 suitable for use as a motor branch circuit protector (Type E coordination)?

    A: MCCBs used for motor branch circuit protection must be coordinated with the downstream overload relay for Type 2 coordination (no damage to contactor or relay on short-circuit). Verify the Schneider Electric coordination table for the specific contactor-overload-MCCB combination to confirm Type 1 or Type 2 coordination is achieved.

    Q: Can the C25V36E250 be motorised for remote switching and automation?

    A: Yes. Schneider Electric MCCBs in this series support rotary handle adaptation and motorised operating mechanisms as accessories, enabling remote ON/OFF switching via PLC, SCADA, or BMS. Motorised MCCBs are used for automatic load management and remote trip in automated distribution systems.

    Q: What trip unit type does the C25V36E250 use — thermal-magnetic or electronic?

    A: Refer to the product label or datasheet for the exact trip unit specification. The trip unit determines adjustability and protection accuracy.

    Customer Reviews

    Related Products

    Solar Controller for 415V Induction motor pumps,10HP,Without RMU L T CS91466PO1O newbradd 7

    Solar Controller for 415V Induction motor pumps,3HP,Without RMU | L&T – CS91463PO1O

    Lauritz Knudsen (L&T)
    Read more
    SKU: CS91463PO1O
    MU-G10HN, 10HP, 20-32A, 360V wideband coil Voltage, DOL, Three Phase DOL Controller for Submersible Pump Application L T CS92

    MU-G7.5,7.5HP,13-22A, 360V wideband coil Voltage, DOL, Three Phase DOL Controller for Submersible Pump Application | L&T – CS92103SODO

    Lauritz Knudsen (L&T)
    ₹12,550.00 Excl. GST
    Add to basket
    SKU: CS92103SODO
    XB5AR31N Push button, Harmony XB5N XB7N, plastic, mushroom, green, 60mm, spring return, unmarked, 1 NO Schneider Electric xb5
    -46%

    XB5AR31N | Push button, Harmony XB5N XB7N, plastic, mushroom, green, 60mm, spring return, unmarked, 1 NO – Schneider Electric

    Schneider Electric
    Original price was: ₹675.00.Current price is: ₹364.50. Excl. GST
    Add to basket
    SKU: XB5AR31N
    ZB2BW36C Ø 22 mm fixing hole push button head with blue lamp Schneider Electric zb2bw36c
    -35%

    ZB2BW36C | Ø 22 mm fixing hole – push button head with blue lamp – Schneider Electric

    Schneider Electric
    Original price was: ₹305.00.Current price is: ₹198.25. Excl. GST
    Add to basket
    SKU: ZB2BW36C
    Placeholder
    -20%

    MS13MD09 | 7MDL, 1HP 3 PHASE DOL STARTER – Schneider Electric

    Schneider Electric
    Original price was: ₹5,530.00.Current price is: ₹4,424.00. Excl. GST
    Add to basket
    SKU: MS13MD09
    Placeholder
    -50%

    30002572 | EM1200 Energy meter Cl 0.5 RS485 LCD – Schneider Electric

    Schneider Electric
    Original price was: ₹6,271.00.Current price is: ₹3,135.50. Excl. GST
    Add to basket
    SKU: 30002572
