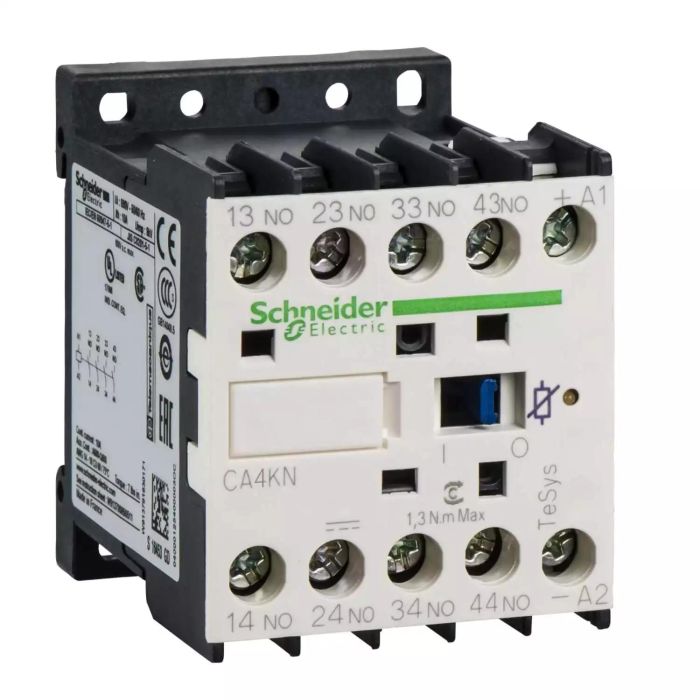

CA4KN31BW3 | K CONTROL RELAY 3NO 1NC 24V DC LOW CONS – Schneider Electric

Name: CA4KN31BW3 | K CONTROL RELAY 3NO 1NC 24V DC LOW CONS - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: CA4KN31BW3
Price: 2367.00 INR
Availability: BackOrder

SKU: CA4KN31BW3

Original price was: ₹5,260.00.Current price is: ₹2,367.00. Excl. GST

Dispatch By : 2 Weeks

19 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

LA1KN20 TeSys K Auxiliary contact block 2 NO screw-clamps terminals Schneider Electric la1kn11 image 1500x1500

-55%

LA1KN11 | TeSys K – Auxiliary contact block – 1 NO + 1 NC – screw-clamps terminals – Schneider Electric

Add On Block

Schneider Electric

Excl. GST

Add to basket

SKU: LA1KN11

-55%

LA1KN02 | TeSys K – Auxiliary contact block – 2 NC – screw-clamps terminals – Schneider Electric

Add On Block

Schneider Electric

Excl. GST

Add to basket

SKU: LA1KN02

-55%

LA1KN20 | TeSys K – Auxiliary contact block – 2 NO – screw-clamps terminals – Schneider Electric

Add On Block

Schneider Electric

Excl. GST

Add to basket

SKU: LA1KN20

Looking for the CA4KN31BW3 | K CONTROL RELAY 3NO 1NC 24V DC LOW CONS? This genuine Schneider Electric relay from the TeSys range is built for motor control and switching, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include <= 690 V <= 400 Hz, IP2X. Order part number CA4KN31BW3 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	CA4KN31BW3
Category	Relay
Main
Range	TeSys
Product name	TeSys CAK
Product or component type	Control relay
Device short name	CA4K
Contactor application	Control circuit
Utilisation category	DC-13 AC-15
Pole contact composition	3 NO + 1 NC
[Ue] rated operational voltage	<= 690 V <= 400 Hz
Control circuit type	DC low consumption
[Uc] control circuit voltage	24 V DC
Complementary
Coil technology	Built-in bidirectional peak limiting diode suppressor
[Ith] conventional free air thermal current	10 A (at 50 °C)
Irms rated making capacity	110 A conforming to IEC 60947
Associated fuse rating	10 A gG conforming to IEC 60947 10 A gG conforming to VDE 0660
[Ui] rated insulation voltage	690 V conforming to IEC 60947 750 V conforming to VDE 0110 group C 690 V conforming to BS 5424 600 V conforming to CSA C22.2 No 14
Mounting support	Rail Plate
Connections – terminals	Screw clamp terminals 1 cable(s) 1.5…4 mm²solid Screw clamp terminals 2 cable(s) 1.5…4 mm²solid Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible with cable end Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end Screw clamp terminals 1 cable(s) 0.34…1.5 mm²flexible with cable end Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible without cable end
Tightening torque	1.3 N.m – on screw clamp terminals – with screwdriver flat Ø 6 mm 1.3 N.m – on screw clamp terminals – with screwdriver Philips No 26 mm 1.3 N.m – on screw clamp terminals – with screwdriver pozidriv No 2
Control circuit voltage limits	Drop-out: 0.1…0.75 Uc (at <50 °C) Operational: 0.7…1.3 Uc (at <50 °C)
Operating time	10…20 ms coil de-energisation and NO opening 15…25 ms coil de-energisation and NC closing 30…40 ms coil energisation and NO closing 25…35 ms coil energisation and NC opening
Mechanical durability	30 Mcycles
Maximum operating rate	6000 cyc/h
Immunity to microbreaks	2 ms
Inrush power in W	1.8 W (at 20 °C)
Hold-in power consumption in W	1.8 W at 20 °C
Heat dissipation	1.8 W
Minimum switching voltage	17 V
Minimum switching current	5 mA
Non overlap distance	0.5 mm
Insulation resistance	> 10 MOhm
Height	58 mm
Width	45 mm
Depth	57 mm
Product weight	0.235 kg
Environment
Standards	EN/IEC 60947-5-1 GB/T 14048.5 UL 60947-5-1 CSA C22.2 No 60947-5-1 JIS C8201-5-1
Product certifications	CB Scheme CCC UL CSA EAC CE UKCA
IP degree of protection	IP2X
Protective treatment	TC conforming to IEC 60068
Ambient air temperature for operation	-25…50 °C
Ambient air temperature for storage	-50…80 °C
Operating altitude	2000 m without derating
Flame retardance	V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
Mechanical robustness	Vibrations contactor open: 2 Gn, 5…300 Hz conforming to IEC 60068-2-6 Vibrations contactor closed: 4 Gn, 5…300 Hz conforming to IEC 60068-2-6 Shocks contactor open: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed: 15 Gn for 11 ms conforming to IEC 60068-2-27
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	6.600 cm
Package 1 Width	4.800 cm
Package 1 Length	6.200 cm
Package 1 Weight	220.000 g
Unit Type of Package 2	S02
Number of Units in Package 2	40
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	9.184 kg
Unit Type of Package 3	P06
Number of Units in Package 3	640
Package 3 Height	75.000 cm
Package 3 Width	60.000 cm
Package 3 Length	80.000 cm
Package 3 Weight	159.355 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

3 NO (normally-open) contacts for load switching and sequencing; 1 NC (normally-closed) contact for interlocking, fail-safe, and alarm circuits — all contacts independently switchable up to the contact voltage rating.
Manufactured to IEC 60947-5-1 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

LA1KN11LA1KN20LA1KN02

❓ Frequently Asked Questions

Q: How do I test the CA4KN31BW3 relay in the field without a signal source?

A: Most Schneider Electric relays can be manually forced using the test button (if fitted) — this mechanically closes the relay contacts without energising the coil, allowing functional testing of the controlled circuit. For coil testing, use a multimeter to measure coil resistance (typically 500–2000Ω for AC coils at rated voltage) and compare with datasheet values.

Q: Can the CA4KN31BW3 relay be mounted on a DIN rail socket for easy replacement?

A: This Schneider Electric relay typically requires direct panel or DIN rail wiring. For applications requiring frequent relay replacement, consider the plug-in relay variant of this series with a matching socket base.
