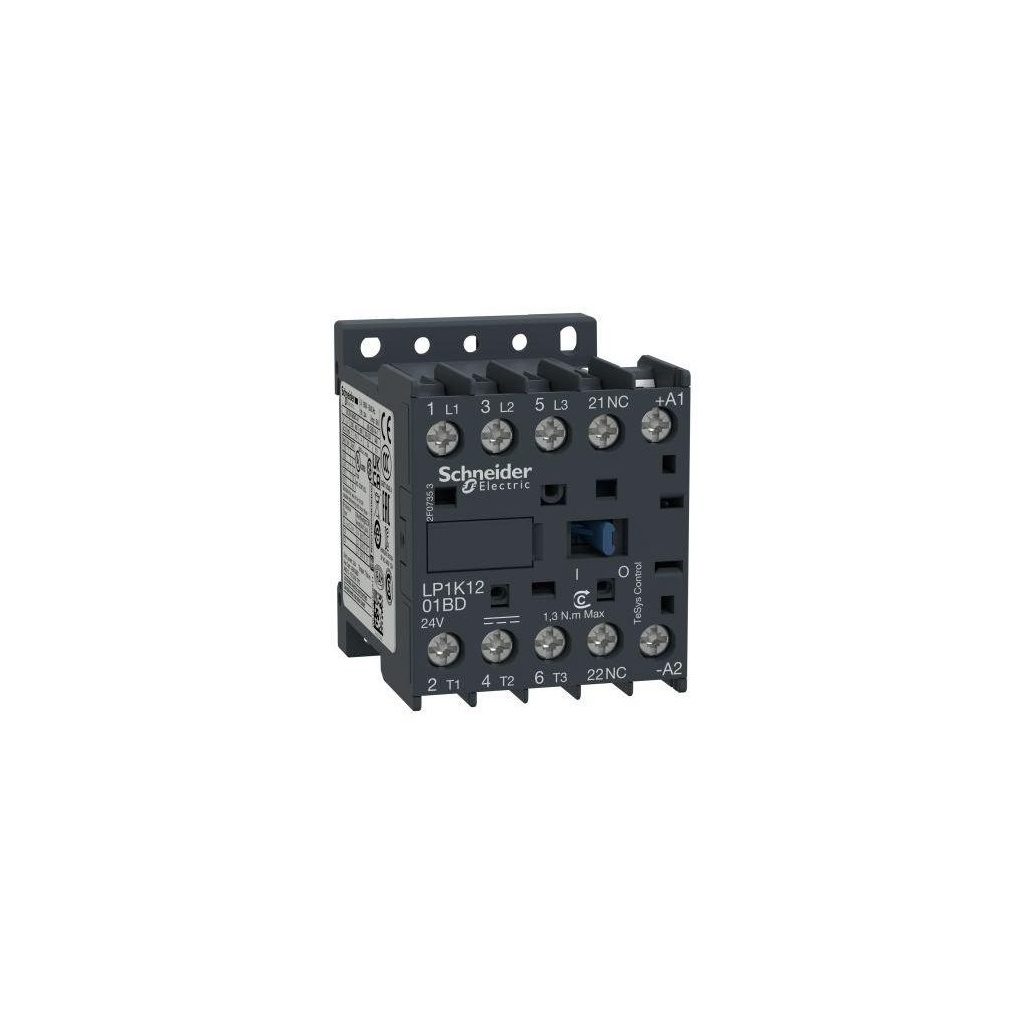

LP1K1201BD TeSys K contactor 3P AC-3 schneider electric lp1k1201bd 30401287 01
-55%

LP1K1201BD | TeSys K contactor – 3P – AC-3 <= 440 V 12 A - 1 NC aux. - 24 V DC coil - Schneider Electric

Schneider Electric
Original price was: ₹5,380.00.Current price is: ₹2,421.00. Excl. GST
Add to basket
SKU: LP1K1201BD
LP1K0910BD TeSys K contactor 3P AC-3 lp1k0910bd image 1500x1500
-50%

LP1K0910BD | TeSys K contactor – 3P – AC-3 <= 440 V 9 A - 1 NO aux. - 24 V DC coil - Schneider Electric

Schneider Electric
Original price was: ₹4,645.00.Current price is: ₹2,322.50. Excl. GST
Add to basket
SKU: LP1K0910BD
-55%

LC1K0910P7 | CONTACTOR – Schneider Electric

Schneider Electric
Original price was: ₹3,290.00.Current price is: ₹1,480.50. Excl. GST
Add to basket
SKU: LC1K0910P7
LC1K0901B7 TeSys K contactor 3P AC-3 lc1k0901m7 image 1500x1500
-58%

LC1K0901M7 | TeSys K contactor – 3P – AC-3 <= 440 V 9 A - 1 NC aux. - 220...230 V AC coil - Schneider Electric

Schneider Electric
Original price was: ₹2,855.00.Current price is: ₹1,199.10. Excl. GST
Add to basket
SKU: LC1K0901M7
Placeholder
-55%

LC1K0610P7 | CTR LC1K 3P AC3 440V 6A coil 230V AC – Schneider Electric

Original price was: ₹3,170.00.Current price is: ₹1,426.50. Excl. GST
Add to basket
SKU: LC1K0610P7
LC1K0610M7 TeSys K contactor 3P AC-3 lc1k0610m7 image 1500x1500
-58%

LC1K0610M7 | TeSys K contactor – 3P – AC-3 <= 440 V 6 A - 1 NO aux. - 220...230 V AC coil - Schneider Electric

Schneider Electric
Original price was: ₹2,730.00.Current price is: ₹1,146.60. Excl. GST
Add to basket
SKU: LC1K0610M7
LP1K0601BD TeSys K contactor 3P AC-3 lp1k0601bd image 1500x1500
-50%

LP1K0901BD | TeSys K contactor – 3P – AC-3 <= 440 V 9 A - 1 NC aux. - 24 V DC coil - Schneider Electric

Schneider Electric
Original price was: ₹4,645.00.Current price is: ₹2,322.50. Excl. GST
Add to basket
SKU: LP1K0901BD
LP1K0601BD TeSys K contactor 3P AC-3 lp1k0601bd image 1500x1500
-50%

LP1K0601BD | TeSys K contactor – 3P – AC-3 <= 440 V 6 A - 1 NC aux. - 24 V DC coil - Schneider Electric

Schneider Electric
Original price was: ₹4,270.00.Current price is: ₹2,135.00. Excl. GST
Add to basket
SKU: LP1K0601BD
LP1K1210BD TeSys K contactor 3P AC-3 lp1k0610bd image 1500x1500
-50%

LP1K1210BD | TeSys K contactor – 3P – AC-3 <= 440 V 12 A - 1 NO aux. - 24 V DC coil - Schneider Electric

Schneider Electric
Original price was: ₹5,380.00.Current price is: ₹2,690.00. Excl. GST
Add to basket
SKU: LP1K1210BD
Placeholder
-55%

LC1K09004U7 | CONTACTOR 4P VIS 230 240V50 60 – Schneider Electric

Original price was: ₹10,375.00.Current price is: ₹4,668.75. Excl. GST
Add to basket
SKU: LC1K09004U7
LC1K0910B7 TeSys K contactor 3P AC-3 lc1k0910m7 image 1500x1500
-58%

LC1K0910M7 | TeSys K contactor – 3P – AC-3 <= 440 V 9 A - 1 NO aux. - 220...230 V AC coil - Schneider Electric

Schneider Electric
Original price was: ₹2,855.00.Current price is: ₹1,199.10. Excl. GST
Add to basket
SKU: LC1K0910M7
-55%

LP4K0901BW3 | 3P CONTACTOR 4.0KW 24VDC LOW CONSUMP – Schneider Electric

Schneider Electric
Original price was: ₹15,620.00.Current price is: ₹7,029.00. Excl. GST
Add to basket
SKU: LP4K0901BW3
Placeholder
-55%

LP1K0910BD3 | 3P CONTACTOR 9A AC3 4KW L/C 24VDC – Schneider Electric

Original price was: ₹8,660.00.Current price is: ₹3,897.00. Excl. GST
Add to basket
SKU: LP1K0910BD3
LP1K1210BD TeSys K contactor 3P AC-3 lp1k0610bd image 1500x1500
-50%

LP1K0610BD | TeSys K contactor – 3P – AC-3 <= 440 V 6 A - 1 NO aux. - 24 V DC coil - Schneider Electric

Schneider Electric
Original price was: ₹4,270.00.Current price is: ₹2,135.00. Excl. GST
Add to basket
SKU: LP1K0610BD
LC1K0901B7 TeSys K contactor 3P AC-3 lc1k0901m7 image 1500x1500
-58%

LC1K0901B7 | TeSys K contactor – 3P – AC-3 <= 440 V 9 A - 1 NC aux. - 24 V AC coil - Schneider Electric

Schneider Electric
Original price was: ₹2,855.00.Current price is: ₹1,199.10. Excl. GST
Add to basket
SKU: LC1K0901B7
Placeholder
-55%

LP4K0910BW3 | 3P CONTACTOR 4.0KW 24VDC LOW CONSUMP – Schneider Electric

Original price was: ₹15,620.00.Current price is: ₹7,029.00. Excl. GST
Add to basket
SKU: LP4K0910BW3

    Looking for the LA1KN20 | TeSys K – Auxiliary contact block – 2 NO – screw-clamps terminals? This genuine Schneider Electric contactor accessory from the TeSys range is built for motor control and switching, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 690 V AC 25…400 Hz, IP20. Order part number LA1KN20 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

    📋 Technical Specifications

    Product
    BrandSchneider Electric
    Part Number / SKULA1KN20
    CategoryContactor Accessory
    Main
    RangeTeSys
    Product nameTeSys K
    Product or component typeAuxiliary contact block
    Device short nameLA1
    Range compatibilityTeSys K LC1K
    TeSys K CA2K
    TeSys K CA3K
    TeSys K CA4K
    Mounting locationFront
    Pole contact composition2 NO
    Contacts operationInstantaneous
    [Ue] rated operational voltage690 V AC 25…400 Hz
    [Ui] rated insulation voltage690 V conforming to IEC 60947-5-1
    600 V conforming to UL 60947-5-1
    600 V conforming to CSA C22.2 No 60947-5-1
    [Ith] conventional free air thermal current10 A (at 50 °C)
    StandardsEN/IEC 60947-5-1
    UL 60947-5-1
    CSA C22.2 No 60947-5-1
    GB/T 14048.5
    JIS C8201-5-1
    UL 60335-2-40:Annex JJ
    Product certificationsCB Scheme
    CCC
    UL
    CSA
    CE
    UKCA
    Complementary
    Irms rated making capacity110 A at <= 690 V AC conforming to IEC 60947
    Permissible short-time rating80 A 1 s
    60 A 500 ms
    110 A 100 ms
    Associated fuse rating10 A gG at <= 690 V conforming to IEC 60947
    Minimum switching current5 mA
    Minimum switching voltage17 V
    Non overlap distance0.5 mm
    Insulation resistance> 10 MOhm
    Connections – terminalsScrew clamp terminals 1 cable(s) 0.34…1.5 mm²flexible with cable end
    Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end
    Screw clamp terminals 1 cable(s) 1.5…4 mm²rigid
    Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end
    Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end
    Screw clamp terminals 2 cable(s) 1.5…4 mm²rigid
    Tightening torque1.3 N.m – with screwdriver Philips No 2
    1.3 N.m – with screwdriver pozidriv No 2
    Height30 mm
    Width38 mm
    Depth35 mm
    Product weight0.045 kg
    Environment
    Environmental characteristicNormal environment
    IP degree of protectionIP20 conforming to IEC 60529
    Protective treatmentTC conforming to IEC 60068
    Ambient air temperature for storage-50…80 °C
    Ambient air temperature for operation-25…50 °C
    Operating altitude2000 m
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height3.700 cm
    Package 1 Width4.000 cm
    Package 1 Length4.000 cm
    Package 1 Weight31.000 g
    Unit Type of Package 2BB1
    Number of Units in Package 210
    Package 2 Height5.000 cm
    Package 2 Width17.000 cm
    Package 2 Length17.000 cm
    Package 2 Weight317.000 g
    Unit Type of Package 3S02
    Number of Units in Package 3100
    Package 3 Height15.000 cm
    Package 3 Width30.000 cm
    Package 3 Length40.000 cm
    Package 3 Weight3.710 kg
    Contractual warranty
    Warranty (in months)18

    ⚡ Key Features

    • Genuine Schneider Electric OEM accessory — manufactured to the same specification and tested to the same standards as the parent device; ensures mechanical and electrical compatibility that third-party alternatives cannot guarantee.
    • Auxiliary contact block (OF type) — 2 NO (Normally Open) contacts mirror the main contact position; wired to PLC for run/trip feedback, indicator lamps, or interlocking with upstream devices.
    • 2 NO (Normally Open) contact arrangement — extends the switching capacity of the parent device for PLC feedback, interlocking, or additional signalling circuits.
    • Direct clip-on or screw-mount to parent device — fits without panel modification or additional wiring between the accessory and main device; field-retrofittable.
    • Manufactured to IEC 60947 (tested as part of the parent device certification) — complies with the applicable Indian BIS and IEC international standards for this product category.
    • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
    • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
    • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
    • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

    🔗 Compatible Products & Accessories

    The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

    LP1K0910BDLC1K0910M7LP1K0901BDLP1K0610BDLC1K0910B7LC1K0910P7LC1K0610M7LC1K09004U7LP1K0601BDLP1K0910BD3LC1K0610B7LP1K1210BDLC1K0901M7LP4K0910BW3LC1K0610P7LC1K0901B7LP1K1201BDLP4K0901BW3LC1K0601M7LC1K1210P7

    ❓ Frequently Asked Questions

    Q: What does the 2 NO (Normally Open) contact configuration on the LA1KN20 mean?

    A: These contacts change state when the device is operated or energised. Size the contact for the actual switched load — pilot duty ratings are typically lower than the main contact rating.
