LC1K0910P7 | CONTACTOR – Schneider Electric

Name: LC1K0910P7 | CONTACTOR - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: LC1K0910P7
Price: 1480.50 INR
Availability: BackOrder

SKU: LC1K0910P7

Original price was: ₹3,290.00.Current price is: ₹1,480.50. Excl. GST

Dispatch By : 8 Weeks

13 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

LA1KN20 TeSys K Auxiliary contact block 2 NO screw-clamps terminals Schneider Electric la1kn11 image 1500x1500

-55%

LA1KN11 | TeSys K – Auxiliary contact block – 1 NO + 1 NC – screw-clamps terminals – Schneider Electric

Add On Block

Schneider Electric

Excl. GST

Add to basket

SKU: LA1KN11

-48%

A9MEM1573 | PowerTag Energy F63 3P – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: A9MEM1573

-55%

LA4KE1UG | K SUPPRESSOR VARISTOR 130-250VAC VDC – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LA4KE1UG

-14%

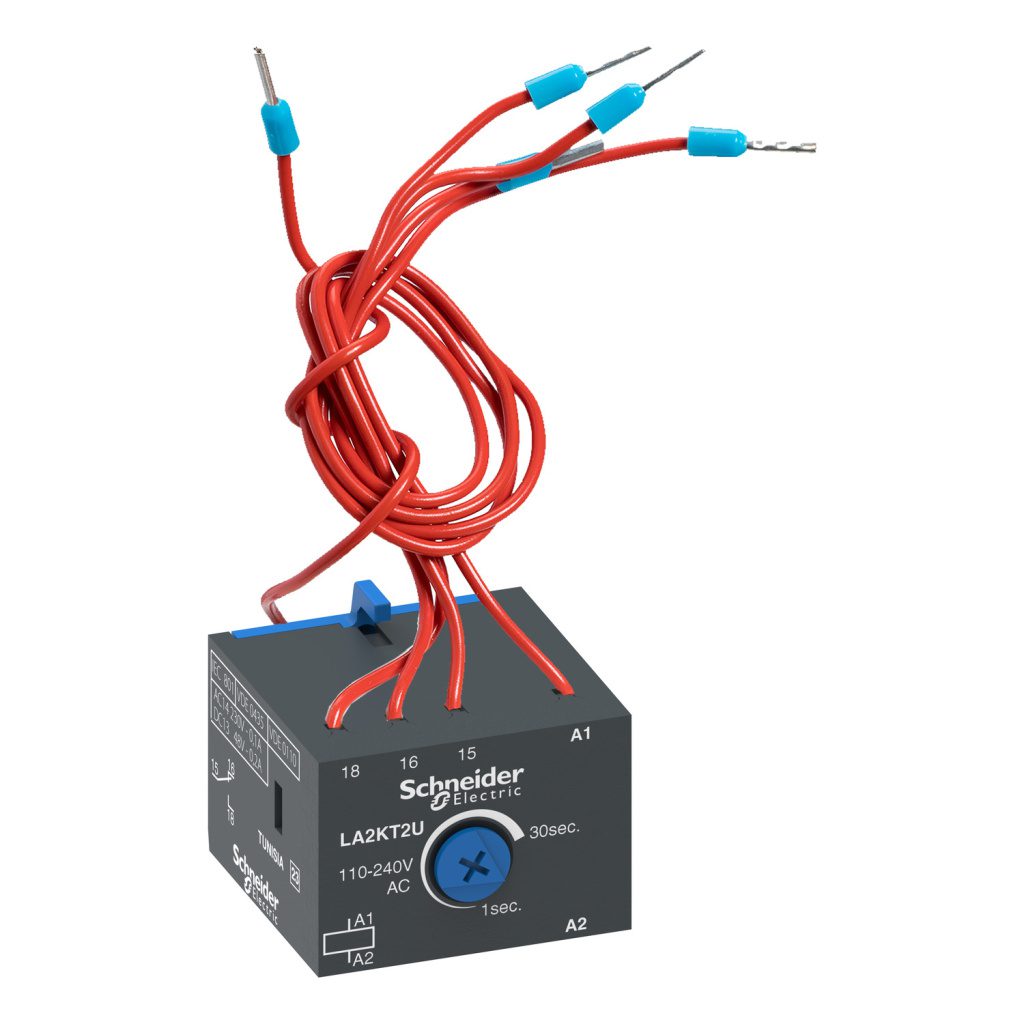

LA2KT2U | TeSys K -Time delay auxiliary contact block – 1 C/O – 110…240 V – 1…30s – Schneider Electric

Auxiliary and Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: LA2KT2U

LA1KN22 TeSys K Auxiliary contact block 2 NO 2 NC screw-clamps terminals Schneider Electric la1kn22 image 1500x1500

-55%

LA1KN31 | TeSys K – Auxiliary contact block – 3 NO + 1 NC – screw-clamps terminals – Schneider Electric

Add On Block

Schneider Electric

Excl. GST

Add to basket

SKU: LA1KN31

-55%

LA1KN02 | TeSys K – Auxiliary contact block – 2 NC – screw-clamps terminals – Schneider Electric

Add On Block

Schneider Electric

Excl. GST

Add to basket

SKU: LA1KN02

-55%

LA1KN22 | TeSys K – Auxiliary contact block – 2 NO + 2 NC – screw-clamps terminals – Schneider Electric

Add On Block

Schneider Electric

Excl. GST

Add to basket

SKU: LA1KN22

-14%

LA2KT2E | TIMER DELAY ON – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LA2KT2E

-55%

LA1KN20 | TeSys K – Auxiliary contact block – 2 NO – screw-clamps terminals – Schneider Electric

Add On Block

Schneider Electric

Excl. GST

Add to basket

SKU: LA1KN20

-55%

LA1KN13 | TeSys K – Auxiliary contact block – 1 NO + 3 NC – screw-clamps terminals – Schneider Electric

Add On Block

Schneider Electric

Excl. GST

Add to basket

SKU: LA1KN13

-55%

LA1KN04 | TeSys K – Auxiliary contact block – 4 NC – screw-clamps terminals – Schneider Electric

Add On Block

Schneider Electric

Excl. GST

Add to basket

SKU: LA1KN04

-55%

LA1KN40 | TeSys K – Auxiliary contact block – 4 NO – screw-clamps terminals – Schneider Electric

Add On Block

Schneider Electric

Excl. GST

Add to basket

SKU: LA1KN40

-55%

LA4KA1U | K RANGE SUPPRESSOR RC 110-250VAC – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LA4KA1U

Looking for the LC1K0910P7 | CONTACTOR? This genuine Schneider Electric contactor from the TeSys range is built for motor control and switching, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 9 A, Power circuit: <= 690 V AC <= 400 Hz, 3P. Order part number LC1K0910P7 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	LC1K0910P7
Category	Contactor
Main
Range	TeSys
Product or component type	Contactor
Device application	Control
Contactor application	Resistive load Motor control
Complementary
Utilisation category	AC-3 AC-3e AC-1 AC-4
Poles description	3P
power pole contact composition	3 NO
[Ue] rated operational voltage	Power circuit: <= 690 V AC <= 400 Hz Signalling circuit: <= 690 V AC <= 400 Hz
[Ie] rated operational current	9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit 9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit 20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit
Control circuit type	AC at 50/60 Hz
[Uc] control circuit voltage	230 V AC 50/60 Hz
Motor power kW	2.2 kW at 220…230 V AC 50/60 Hz AC-3 4 kW at 380…415 V AC 50/60 Hz AC-3 4 kW at 440/690 V AC 50/60 Hz AC-3 2.2 kW at 220…230 V AC 50/60 Hz AC-3e 4 kW at 380…415 V AC 50/60 Hz AC-3e 4 kW at 440/690 V AC 50/60 Hz AC-3e 2.2 kW at 220…230 V AC 50/60 Hz AC-4 4 kW at 380…415 V AC 50/60 Hz AC-4 4 kW at 440/690 V AC 50/60 Hz AC-4
Auxiliary contact composition	1 NO
[Uimp] rated impulse withstand voltage	8 kV
Overvoltage category	III
[Ith] conventional free air thermal current	20 A (at 60 °C) for power circuit 10 A (at 50 °C) for signalling circuit
Irms rated making capacity	110 A AC for power circuit conforming to IEC 60947 110 A AC for signalling circuit conforming to IEC 60947
Rated breaking capacity	110 A at 220…230 V conforming to IEC 60947 110 A at 380…400 V conforming to IEC 60947 110 A at 415 V conforming to IEC 60947 110 A at 440 V conforming to IEC 60947 80 A at 500 V conforming to IEC 60947 70 A at 660…690 V conforming to IEC 60947
[Icw] rated short-time withstand current	90 A 50 °C – 1 s for power circuit 85 A 50 °C – 5 s for power circuit 80 A 50 °C – 10 s for power circuit 60 A 50 °C – 30 s for power circuit 45 A 50 °C – 1 min for power circuit 40 A 50 °C – 3 min for power circuit 20 A 50 °C – >= 15 min for power circuit 80 A – 1 s for signalling circuit 90 A – 500 ms for signalling circuit 110 A – 100 ms for signalling circuit
Associated fuse rating	25 A gG at <= 440 V for power circuit 25 A aM for power circuit 10 A gG for signalling circuit conforming to IEC 60947 10 A gG for signalling circuit conforming to VDE 0660
Average impedance	3 mOhm – Ith 20 A 50 Hz for power circuit
Insulation resistance	> 10 MOhm for signalling circuit
Inrush power in VA	30 VA (at 20 °C)
Hold-in power consumption in VA	4.5 VA (at 20 °C)
Heat dissipation	1.3 W
Control circuit voltage limits	Operational: 0.8…1.15 Uc (at <50 °C) Drop-out: >= 0.20 Uc (at <50 °C)
Connections – terminals	Screw clamp terminals 1 cable(s) 1.5…4 mm²solid Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end Screw clamp terminals 1 cable(s) 0.34…2.5 mm²flexible with cable end Screw clamp terminals 2 cable(s) 1.5…4 mm²solid Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end
Maximum operating rate	3600 cyc/h
Coil technology	Without built-in suppressor module
Auxiliary contacts type	type instantaneous 1 NO
Signalling circuit frequency	<= 400 Hz
Minimum switching current	5 mA for signalling circuit
Minimum switching voltage	17 V for signalling circuit
Operating time	10…20 ms coil de-energisation and NO opening 10…20 ms coil energisation and NO closing
Safety reliability level	B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Non overlap distance	0.5 mm
Mechanical durability	10 Mcycles
Electrical durability	1.3 Mcycles 9 A AC-3 at Ue <= 440 V 1.3 Mcycles 9 A AC-3e at Ue <= 440 V 0.16 Mcycles 20 A AC-1 at Ue <= 690 V 0.02 Mcycles 54 A AC-4 at Ue <= 440 V
Mechanical robustness	Shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations contactor closed: 4 Gn, 5…300 Hz conforming to IEC 60068-2-6 Vibrations contactor opened: 2 Gn, 5…300 Hz conforming to IEC 60068-2-6
Height	58 mm
Width	45 mm
Depth	57 mm
Environment
Standards	EN/IEC 60947-4-1 GB/T 14048.4 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ
Product certifications	CB Scheme CCC UL CSA EAC CE UKCA
Protective treatment	TC conforming to IEC 60068 TC conforming to DIN 50016
Operating altitude	2000 m without derating
Flame retardance	V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	6.600 cm
Package 1 Width	4.800 cm
Package 1 Length	6.200 cm
Package 1 Weight	177.000 g
Unit Type of Package 2	S02
Number of Units in Package 2	50
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	9.146 kg
Unit Type of Package 3	P06
Number of Units in Package 3	800
Package 3 Height	75.000 cm
Package 3 Width	60.000 cm
Package 3 Length	80.000 cm
Package 3 Weight	162.980 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IEC 60947-4-1 / IS 13947-4-1 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

LA1KN22LA1KN11LA1KN40LA1KN31LA1KN20LA1KN04LA1KN02LA1KN13LA1KN11MLA2KT2ELA2KT2ULA4KA1ULA4KE1UGA9MEM1573

❓ Frequently Asked Questions

Q: Can the LC1K0910P7 be used for reversing duty (forward/reverse motor control)?

A: Contactors used for reversing must be wired with two contactors interlocked so only one can energise at a time. The Schneider Electric series provides mechanical interlock kits that physically prevent both contactors from closing simultaneously — mandatory for reversing and brake applications to prevent phase-to-phase short circuits.

Q: Can multiple LC1K0910P7 contactors be wired for star-delta starting?

A: Yes. Star-delta starters use three contactors: main (KM1), star (KM2), and delta (KM3). The Schneider Electric contactor series supports mechanical and electrical interlocking accessories that prevent simultaneous energisation of star and delta contactors — critical for safety. Ensure all three contactors are rated correctly for the motor FLC and star-delta transition current.

Q: What is the electrical and mechanical life of the LC1K0910P7?

A: Schneider Electric contactors are rated for millions of operations: typically 10–30 million mechanical operations and 1–3 million electrical operations at rated current and voltage (AC-3 duty). High-frequency switching applications (>10 operations/hour) require checking the specific thermal capacity of the contactor for continuous duty without overheating.

Q: Which Schneider Electric accessories are compatible with the LC1K0910P7?

A: The Schneider Electric LC1K0910P7 series supports snap-on accessories including auxiliary contact blocks, coil surge suppressors, mechanical interlocks, and direct-mount overload relays. Accessories are series-specific — always verify compatibility using the Schneider Electric product catalogue before ordering. myelectric.in can advise on the correct accessory part numbers for the LC1K0910P7.
