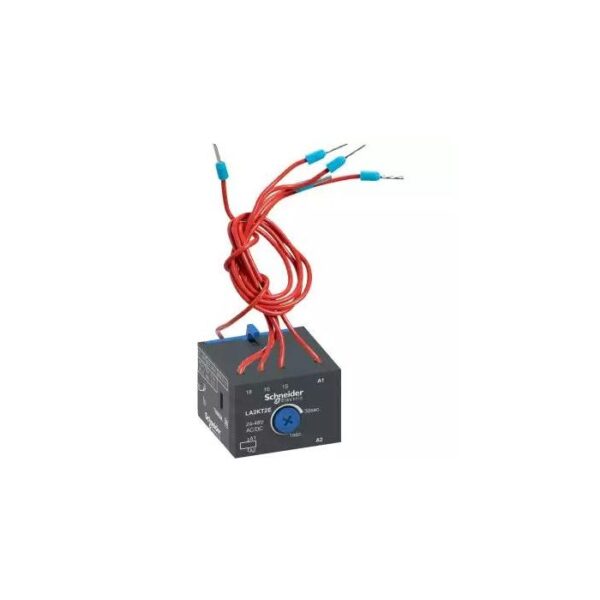

LA2KT2E | TIMER DELAY ON – Schneider Electric
₹7,625.00 Original price was: ₹7,625.00.₹6,557.50Current price is: ₹6,557.50. Excl. GST
Dispatch By : 7 Weeks
Dispatch By : 7 Weeks
Order protection
Buy with complete confidence.
We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.
Additional Addons/Accessories
CA3KN31BD | TeSys K control relay – 3 NO + 1 NC – <= 690 V - 24 V DC standard coil - Schneider Electric

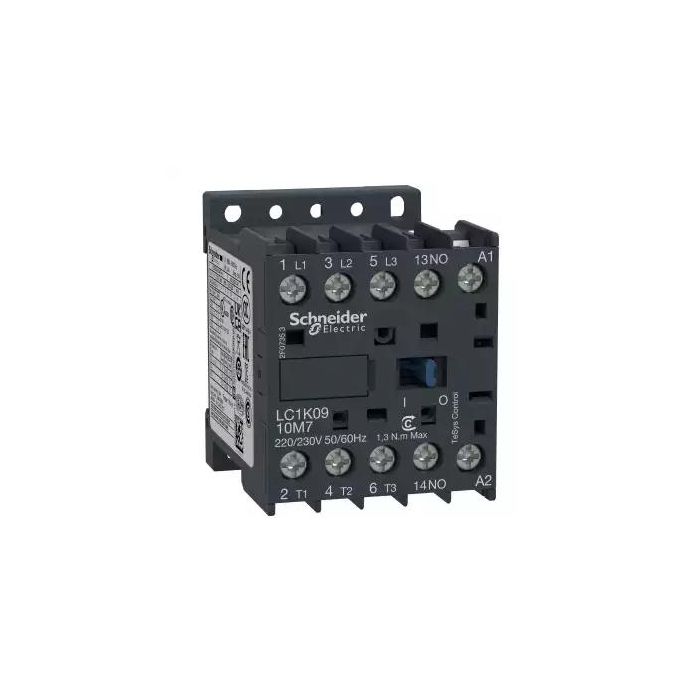

LC1K0910P7 | CONTACTOR – Schneider Electric
LC1K0910M7 | TeSys K contactor – 3P – AC-3 <= 440 V 9 A - 1 NO aux. - 220...230 V AC coil - Schneider Electric
LC1K0901M7 | TeSys K contactor – 3P – AC-3 <= 440 V 9 A - 1 NC aux. - 220...230 V AC coil - Schneider Electric
LP1K0610BD | TeSys K contactor – 3P – AC-3 <= 440 V 6 A - 1 NO aux. - 24 V DC coil - Schneider Electric
LC1K0910B7 | TeSys K contactor – 3P – AC-3 <= 440 V 9 A - 1 NO aux. - 24 V AC coil - Schneider Electric
LC1K0610B7 | TeSys K contactor – 3P – AC-3 <= 440 V 6 A - 1 NO aux. - 24 V AC coil - Schneider Electric
CA2KN22M7 | TeSys K control relay – 2 NO + 2 NC – <= 690 V - 220...230 V AC coil - Schneider Electric
LC1K0610M7 | TeSys K contactor – 3P – AC-3 <= 440 V 6 A - 1 NO aux. - 220...230 V AC coil - Schneider Electric
LC1K0610P7 | CTR LC1K 3P AC3 440V 6A coil 230V AC – Schneider Electric
LP4K0910BW3 | 3P CONTACTOR 4.0KW 24VDC LOW CONSUMP – Schneider Electric

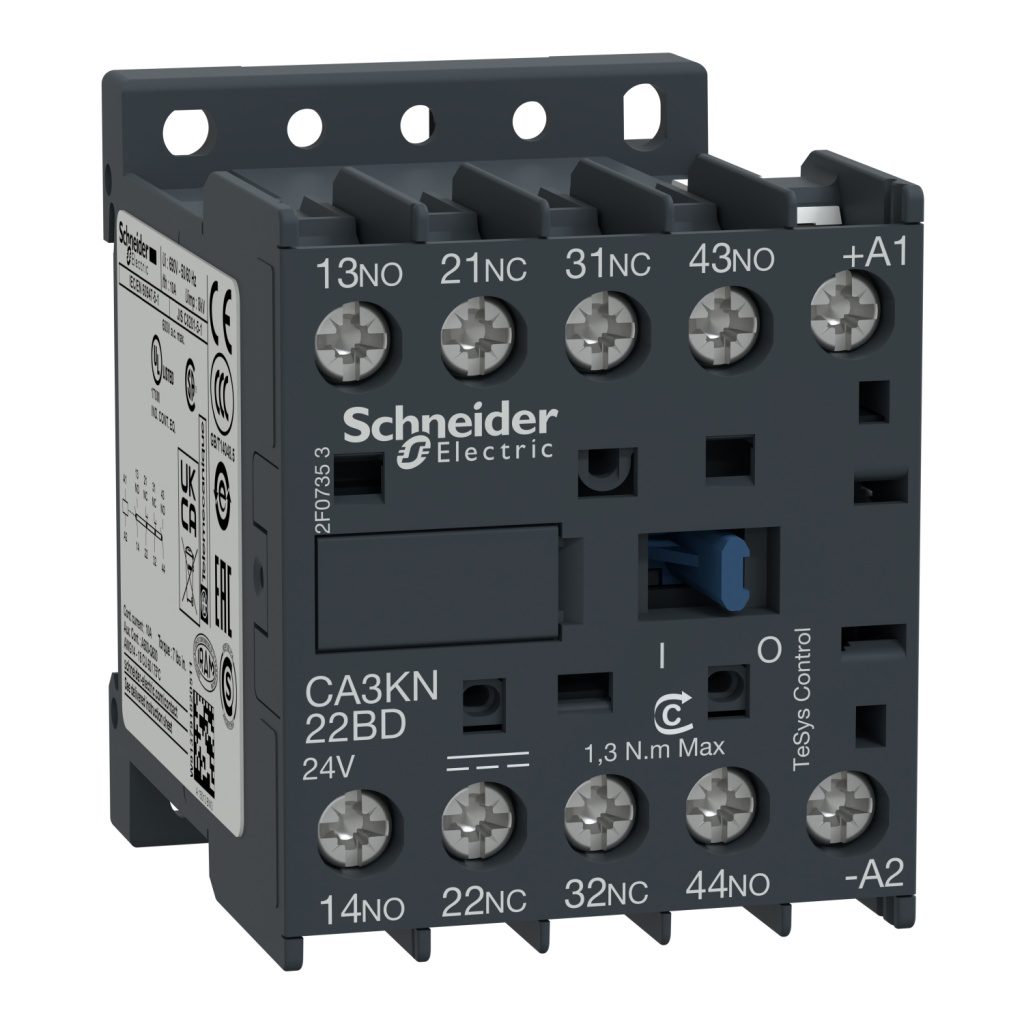

CA3KN22BD | TeSys K control relay – 2 NO + 2 NC – <= 690 V - 24 V DC standard coil - Schneider Electric
LP1K0601BD | TeSys K contactor – 3P – AC-3 <= 440 V 6 A - 1 NC aux. - 24 V DC coil - Schneider Electric
LC1K09004U7 | CONTACTOR 4P VIS 230 240V50 60 – Schneider Electric
LP1K0910BD3 | 3P CONTACTOR 9A AC3 4KW L/C 24VDC – Schneider Electric
LC1K0901B7 | TeSys K contactor – 3P – AC-3 <= 440 V 9 A - 1 NC aux. - 24 V AC coil - Schneider Electric
CA2KN22B7 | TeSys K control relay – 2 NO + 2 NC – <= 690 V - 24 V AC coil - Schneider Electric
LP1K0901BD | TeSys K contactor – 3P – AC-3 <= 440 V 9 A - 1 NC aux. - 24 V DC coil - Schneider Electric
LP1K0910BD | TeSys K contactor – 3P – AC-3 <= 440 V 9 A - 1 NO aux. - 24 V DC coil - Schneider Electric
LP1K1210BD | TeSys K contactor – 3P – AC-3 <= 440 V 12 A - 1 NO aux. - 24 V DC coil - Schneider Electric
Sourced through authorised channels, the Schneider Electric LA2KT2E timer from the TeSys range delivers dependable performance for industrial, commercial, and infrastructure applications. Key ratings include 24…48 V AC/DC for control circuit, IP20. myelectric.in stocks the LA2KT2E | TIMER DELAY ON for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.
📋 Technical Specifications
| Product | |
| Brand | Schneider Electric |
| Part Number / SKU | LA2KT2E |
| Category | Timer |
| Main | |
| Range | TeSys |
| Product name | TeSys K |
| Product or component type | Time delay auxiliary contact block |
| Device short name | LA1 |
| Range compatibility | TeSys K LC1K TeSys K CA2K TeSys K CA3K TeSys K CA4K |
| Mounting location | Front |
| Pole contact composition | 1 C/O |
| Contacts operation | Time delay |
| Timer type | On delay |
| Time delay range | 1…30 s |
| [Ue] rated operational voltage | 24…48 V AC/DC for control circuit 240 V AC for signalling circuit |
| Rated operational voltage limits | 0.85…1.1 Uc |
| [Ith] conventional free air thermal current | 2 A for signalling circuit |
| Standards | EN/IEC 60947-5-1 |
| Product certifications | CE UKCA |
| Complementary | |
| Insulation resistance | > 10 MOhm |
| Connections – terminals | Slip-on terminals |
| Reset time | 1.5 s during time delay 0.5 s after time delay |
| Height | 27 mm |
| Width | 38 mm |
| Depth | 38 mm |
| Product weight | 0.04 kg |
| Environment | |
| Environmental characteristic | Normal environment |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Protective treatment | TC conforming to IEC 60068 |
| Ambient air temperature for operation | -10…60 °C |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.000 cm |
| Package 1 Width | 4.800 cm |
| Package 1 Length | 4.800 cm |
| Package 1 Weight | 40.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 70 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.110 kg |
| Contractual warranty | |
| Warranty (in months) | 18 |
⚡ Key Features
- Wide timing range adjustable via front potentiometer — covers seconds to minutes on a single unit; no component swapping required to change timing range.
- Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
- BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
- Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
- GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
- Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
