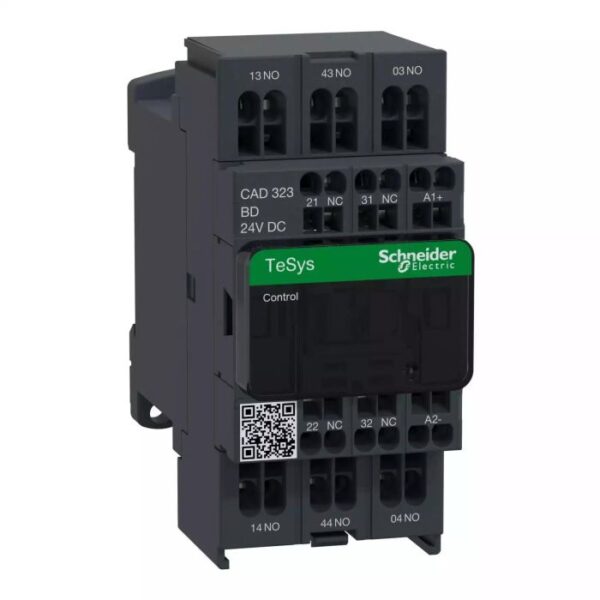

CAD323BD | CAD323BD Contactor 32A 3P 24VDC Coil | Schneider Electric – Schneider Electric

Name: CAD323BD | CAD323BD Contactor 32A 3P 24VDC Coil | Schneider Electric - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: CAD323BD
Price: 2713.50 INR
Availability: BackOrder

SKU: CAD323BD

Original price was: ₹6,030.00.Current price is: ₹2,713.50. Excl. GST

Dispatch By : 8 Weeks

12 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-14%

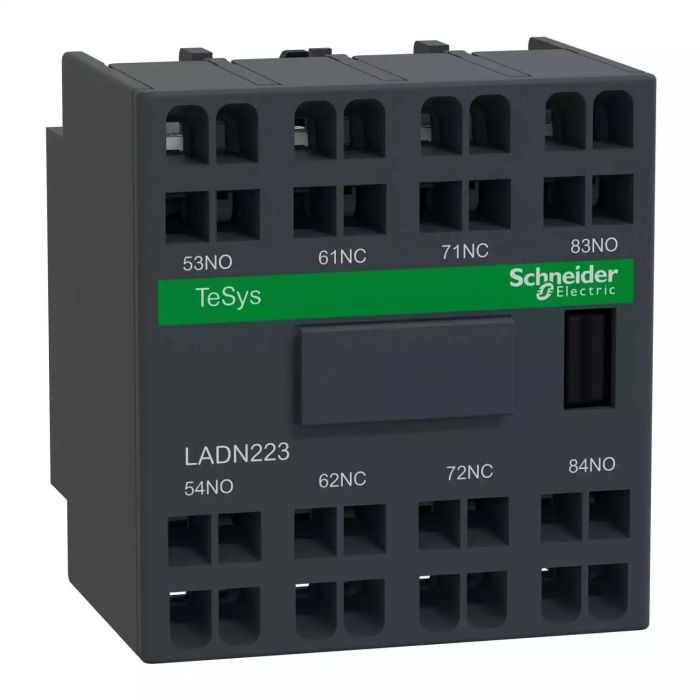

LADN223 | TeSys CONTACTS BLOCK – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LADN223

-55%

LAD6K10F | LATCH BLK LC1 D09-D65A 110V – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LAD6K10F

-55%

LAD9ET1S | TeSys SAFETY COVER RED FOR 09-38A – 40 – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LAD9ET1S

-14%

LADN043 | TeSys CONTACTS BLOCK – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LADN043

-55%

LAD4DDL | FREE WHEELING DIODE 24-250VAC D09-D38 – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: LAD4DDL

-55%

LAD6K10M | CONTACTOR MECH. LATCH CONTACT BLOCK IEC – Schneider Electric

Auxiliary and Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: LAD6K10M

-55%

LAD6K10B | LATCH BLK LC1 D09-D65A 24V – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LAD6K10B

-55%

LAD6K10E | LATCH BLK LC1 D09-D65A 42V – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LAD6K10E

-55%

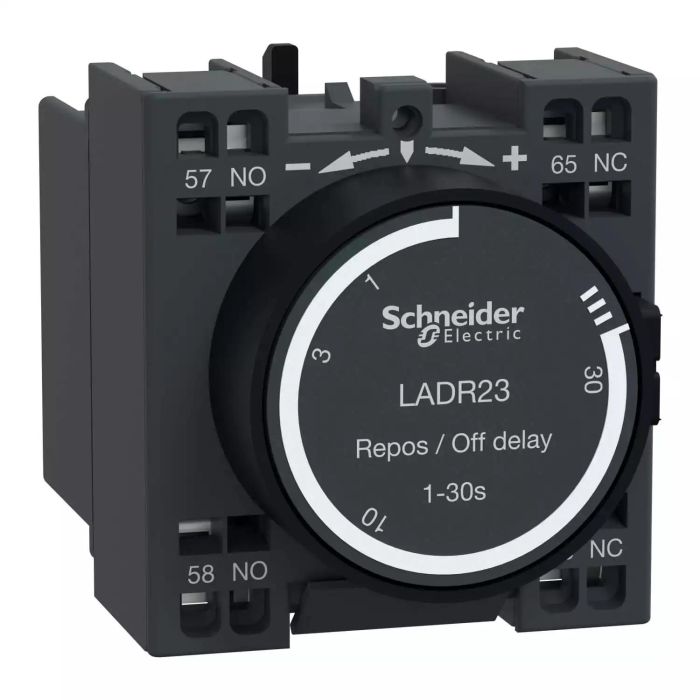

LADR23 | TeSys CONTACTS BLOCK – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LADR23

Sourced through authorised channels, the Schneider Electric CAD323BD contactor from the TeSys range delivers dependable performance for motor control and switching. Key ratings include 32 A, <= 690 V AC 25...400 Hz, 3 Poles. myelectric.in stocks the CAD323BD | CAD323BD Contactor 32A 3P 24VDC Coil | Schneider Electric for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	CAD323BD
Category	Contactor
Main
Range	TeSys TeSys Deca
Product name	TeSys CAD
Product or component type	Control relay
Device short name	CAD
Contactor application	Control circuit
Complementary
Utilisation category	AC-14 AC-15 DC-13
Pole contact composition	3 NO + 2 NC
[Ue] rated operational voltage	<= 690 V AC 25…400 Hz
Control circuit type	DC standard
[Uc] control circuit voltage	24 V DC
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947
[Ith] conventional free air thermal current	10 A (at 60 °C)
Irms rated making capacity	140 A AC conforming to IEC 60947-5-1 250 A DC conforming to IEC 60947-5-1
[Icw] rated short-time withstand current	100 A – 1 s 120 A – 500 ms 140 A – 100 ms
Associated fuse rating	10 A gG conforming to IEC 60947-5-1
[Ui] rated insulation voltage	600 V UL certified 600 V CSA certified 690 V conforming to IEC 60947-5-1
Mounting support	Plate Rail
Connections – terminals	Spring terminals 1 cable(s) 1…2.5 mm²flexible without cable end Spring terminals 2 cable(s) 1…2.5 mm²flexible without cable end Spring terminals 1 cable(s) 1…2.5 mm²solid without cable end Spring terminals 2 cable(s) 1…2.5 mm²solid without cable end
Control circuit voltage limits	0.1…0.25 Uc (-40…70 °C):drop-out DC 0.7…1.25 Uc (-40…60 °C):operational DC 1…1.25 Uc (60…70 °C):operational DC
Operating time	53…72 ms coil energisation and NO closing 16…24 ms coil de-energisation and NO opening 47…63 ms coil energisation and NC opening 15…25 ms coil de-energisation and NC closing
Mechanical durability	30 Mcycles
Maximum operating rate	180 cyc/mn
Time constant	28 ms
Inrush power in W	5.4 W (at 20 °C)
Hold-in power consumption in W	5.4 W at 20 °C
Minimum switching voltage	17 V
Minimum switching current	5 mA
Non-overlap time	1.5 ms on energisation between NC and NO contact 1.5 ms on de-energisation between NC and NO contact
Insulation resistance	> 10 MOhm
Mechanical robustness	Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations control relay open: 2 Gn, 5…300 Hz conforming to IEC 60068-2-6 Vibrations control relay closed: 4 Gn, 5…300 Hz conforming to IEC 60068-2-6
Height	99 mm
Width	45 mm
Depth	93 mm
Product weight	0.58 kg
Environment
Standards	EN/IEC 60947-5-1 GB/T 14048.5 UL 60947-5-1 CSA C22.2 No 60947-5-1 JIS C8201-5-1
Product certifications	CB CCC UL CSA EAC CE UKCA
IP degree of protection	IP2X front face conforming to VDE 0106
Protective treatment	TH conforming to IEC 60068
Ambient air temperature for operation	-40…60 °C 60…70 °C with derating
Ambient air temperature for storage	-60…80 °C
Operating altitude	0…3000 m
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	11.100 cm
Package 1 Width	10.800 cm
Package 1 Length	5.400 cm
Package 1 Weight	550.000 g
Unit Type of Package 2	S02
Number of Units in Package 2	15
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	8.760 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

32 A AC-3 rated — suits up to a 15 kW squirrel-cage induction motor at 415V for direct-on-line (DOL) starting and running.
24V DC coil — connects directly to pushbutton station, PLC digital output, or timer relay; suitable for standard 50Hz Indian industrial control circuits.
3 Poles main contacts with silver-alloy (AgSnO₂) tips — rated for AC-3 duty (DOL motor starting/stopping); low contact resistance reduces heat at rated current.
Manufactured to IEC 60947-4-1 / IS 13947-4-1 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

LAD9ET1SLAD4DDLLADN223LADN403LADN113LADN203LADN313LADN023LADN043LADR23LADT03LADT23LAD6K10MLAD6K10FLAD6K10BLAD6K10E

❓ Frequently Asked Questions

Q: Is the CAD323BD rated 32 A for AC-3 motor duty or AC-1 resistive duty?

A: The 32 A rating of this Schneider Electric contactor applies to AC-3 duty (squirrel cage motor starting and running). For AC-1 (resistive/non-inductive) loads, the current can be up to ~1.3× the AC-3 rating. AC-4 (plugging/reversing) requires significant de-rating — consult the Schneider Electric selection table.

Q: The CAD323BD has a coil voltage of 24V DC — what control supply is needed?

A: This Schneider Electric device requires a 24V DC control supply connected to the coil terminals (A1 and A2). For DC coils, observe polarity where marked. DC coils produce no inrush and are preferred for PLC output cards. Always fit a surge suppressor across the coil when switching with a PLC or solid-state relay.

Q: What is the electrical and mechanical life of the CAD323BD?

A: Schneider Electric contactors are rated for millions of operations: typically 10–30 million mechanical operations and 1–3 million electrical operations at rated current and voltage (AC-3 duty). High-frequency switching applications (>10 operations/hour) require checking the specific thermal capacity of the contactor for continuous duty without overheating.

Q: Can the CAD323BD be used for reversing duty (forward/reverse motor control)?

A: Contactors used for reversing must be wired with two contactors interlocked so only one can energise at a time. The Schneider Electric series provides mechanical interlock kits that physically prevent both contactors from closing simultaneously — mandatory for reversing and brake applications to prevent phase-to-phase short circuits.

Q: Can multiple CAD323BD contactors be wired for star-delta starting?

A: Yes. Star-delta starters use three contactors: main (KM1), star (KM2), and delta (KM3). The Schneider Electric contactor series supports mechanical and electrical interlocking accessories that prevent simultaneous energisation of star and delta contactors — critical for safety. Ensure all three contactors are rated correctly for the motor FLC and star-delta transition current.
