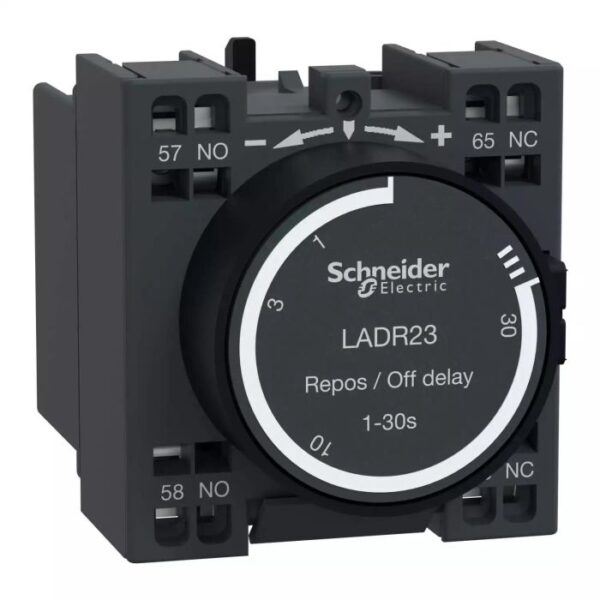

LADR23 | TeSys CONTACTS BLOCK – Schneider Electric

Name: LADR23 | TeSys CONTACTS BLOCK - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: LADR23
Price: 5784.75 INR
Availability: BackOrder

SKU: LADR23

Original price was: ₹12,855.00.Current price is: ₹5,784.75. Excl. GST

Dispatch By : 7 Weeks

16 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-55%

CAD503BD | TeSys AUXILIARY CONTACTOR – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: CAD503BD

-55%

LC1D093BD | TeSys 3P CTR 9A AC3 4KW24VDC COIL SPRING – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LC1D093BD

-55%

CAD323E7 | TeSys AUXILIARY CONTACTOR – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: CAD323E7

-55%

CAD323BD | CAD323BD Contactor 32A 3P 24VDC Coil | Schneider Electric – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: CAD323BD

-55%

LC1D123FD | TeSys3PCTR12A AC3 5.5KW110VDC COILSPRING – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LC1D123FD

Sourced through authorised channels, the Schneider Electric LADR23 electrical component from the TeSys range delivers dependable performance for industrial, commercial, and infrastructure applications. Key ratings include 6 A at 120 V AC-15, 690 V AC 25…400 Hz, IP2X. myelectric.in stocks the LADR23 | TeSys CONTACTS BLOCK for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	LADR23
Category	Electrical Component
Main
Range	TeSys TeSys Deca
Product name	TeSys Deca
Product or component type	Time delay auxiliary contact block
Range compatibility	TeSys D CAD TeSys D LC1D TeSys Deca CAD TeSys Deca LC1D
Mounting location	Front
Pole contact composition	1 NO + 1 NC
Contacts operation	Time delay
Timer type	Off delay
Time delay range	1…30 s
[Ue] rated operational voltage	690 V AC 25…400 Hz
[Ie] rated operational current	6 A at 120 V AC-15 1.04 A at 690 V AC-15 0.55 A at 125 V DC-13 0.1 A at 600 V DC-13
[Ui] rated insulation voltage	690 V conforming to IEC 60947-5-1 600 V conforming to UL 600 V conforming to CSA
[Ith] conventional free air thermal current	10 A (at 60 °C)
Standards	EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5 EN 50012 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ
Product certifications	CB UL CSA CCC EAC UKCA
Complementary
Irms rated making capacity	140 A AC 250 A DC
Permissible short-time rating	100 A 60 °C 1 s 120 A 60 °C 500 ms 140 A 60 °C 100 ms
Protection type	GG fuse 10 A
Mechanical durability	5 Mcycles
Minimum switching current	5 mA
Minimum switching voltage	17 V
Non-overlap time	1.5 ms on de-energisation no overlap between NC and NO contact 1.5 ms on energisation no overlap between NC and NO contact
Insulation resistance	> 10 MOhm
Connections – terminals	Spring terminals 2 cable(s) 2.5 mm²flexible without cable end Spring terminals 2 cable(s) 2.5 mm²rigid
Height	48 mm
Width	44 mm
Depth	61 mm
Colour	Dark grey
Environment
Environmental characteristic	Normal environment
IP degree of protection	IP2X conforming to IEC 60529
Protective treatment	TH conforming to IEC 60068
Ambient air temperature for storage	-60…80 °C
Ambient air temperature for operation	-40…70 °C
Operating altitude	3000 m
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.2 cm
Package 1 Width	6.5 cm
Package 1 Length	4.8 cm
Package 1 Weight	77.0 g
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Height	5.2 cm
Package 2 Width	14.0 cm
Package 2 Length	24.0 cm
Package 2 Weight	786.0 g
Unit Type of Package 3	S02
Number of Units in Package 3	70
Package 3 Height	15.0 cm
Package 3 Width	30.0 cm
Package 3 Length	40.0 cm
Package 3 Weight	5.83 kg
Contractual warranty
Warranty (in months)	18
